SC3000-01UTG
"30V, 100A ,DNF2020-6L" | Series: SC3000-01UTG

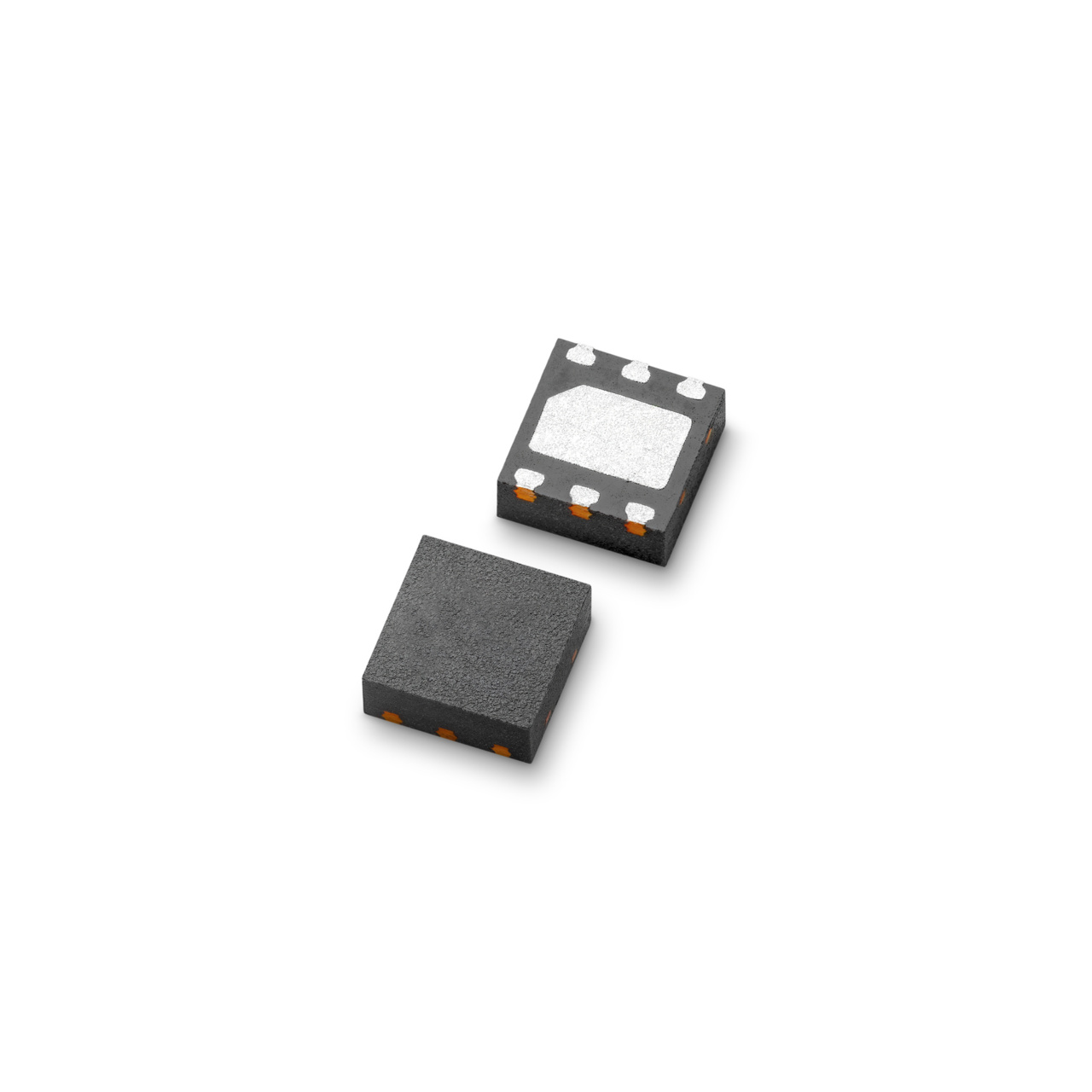

The SC3000-01UTG is a TVS diode designed to provide protection against ESD (electrostatic discharge) and lightning induced surges. This robust device can safely absorb repetitive ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4, ±8 kV contact discharge) without performance degradation and safely dissipate 100 A of 8/20 μs surge current (IEC61000-4-5 2nd edition).
| Property | Value |
|---|---|
AEC-Q101 Qualified | No |
Package | DFN2020-6L |
VR (Vstandoff) | 30 |
ILeak (µA) | 500 |
MIN VBR@IT (V) | 30.5 |
Clamp Voltage | 37V@40A |
ESD Contact (kV) | 30 |
ESD Air (kV) | 30 |
Lightning Immunity (8x20µs)(A) | 37V@40A |
CI/O TYP (pF) | 620 |
Polarity | Unidirectional |
Channels | 1 |
Operating Temperature Min (°C) | -40 |
Operating Temperature Max (°C) | 125 |
Dynamic Resistance | 0.03 |
Operating Voltage (V) | 30 |
CMAX | 620 |
- ESD, IEC 61000-4-2, ±30 kV contact/air
- Maximum surge tolerance, IEC 61000-4-5, 2nd edition,100 A (8/20 μs)
- Low leakage current of 20 nA (TYP) at 30 V
- Low clamping voltage
- Halogen-free, lead-free and RoHS compliant
- Moisture sensitivity level (MSL-1)
SC3000-01UTG Applications
- Protection for the VBUS circuit on USB2.0 by PD 3.1fast charging
