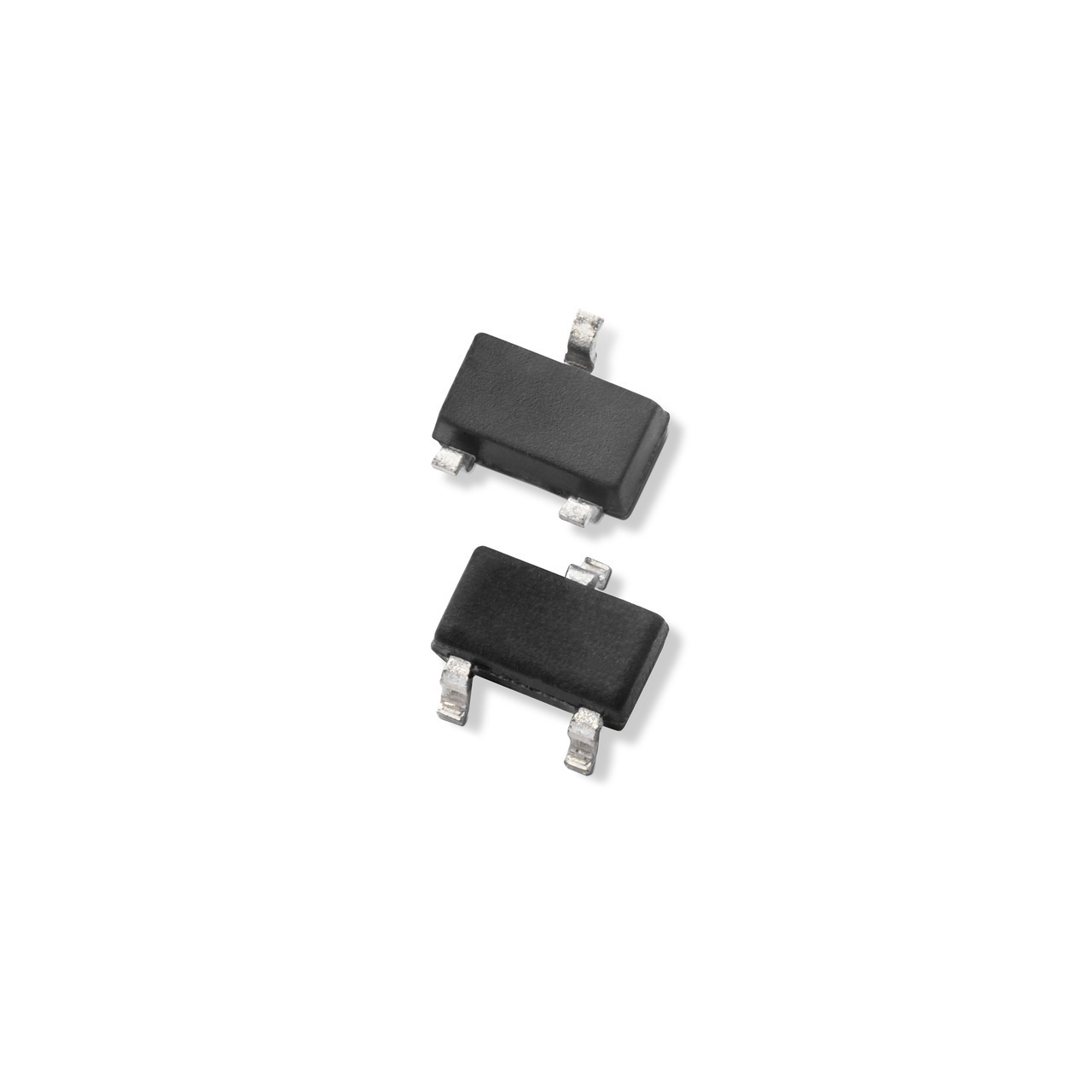

7V & 12V 75pF 20A SOT23-3L | Series: SC712-02HTG
The SC712-02HTG TVS Diode Array is designed to protect RS-485 applications with asymmetrical working voltages (-7 V to 12 V) from damage due to electrostatic discharge (ESD), electrical fast transients (EFT), and lightning induced surges. The SC712-02HTG can absorb repetitive ESD strikes above the maximum level specified in IEC 61000-4-2 international standard without performance degradation and safely dissipate up to 20 A of 8/20 μs induced surge current (IEC 61000-4-5) with very low clamping voltages.
| Property | Value |
|---|---|
Package | SOT23-3L |
MIN VBR@IT (V) | 9 |
ESD Contact (kV) | 30 |
ESD Air (kV) | 30 |
Lightning Immunity (8x20µs)(A) | 28V@20A / 17V20A |
CI/O TYP (pF) | 75 |
Polarity | Bidirectional |
Channels | 2 |
Operating Temperature Min (°C) | -40 |
Operating Temperature Max (°C) | 150 |
Dynamic Resistance | 0.26 |
CMAX | 75 |
- ESD, IEC 61000-4-2, ±30 kV contact/air
- EFT, IEC 61000-4-4, 50 A (5/50 ns)
- Maximum surge tolerance, IEC 61000-4-5, 2nd edition, 20 A (8/20 μs)
- Working Voltages: -7 V to 12 V
- Low leakage current
- Low clamping voltage
- Halogen-free, lead-free and RoHS compliant
- Moisture sensitivity level (MSL-1)
SC712-02HTG Applications
- Communication
- Equipments
- Fieldbus
- Lighting Control - DALI
- Modbus
- Profibus
- RS-485
- Security Systems
