SP0544TUTG

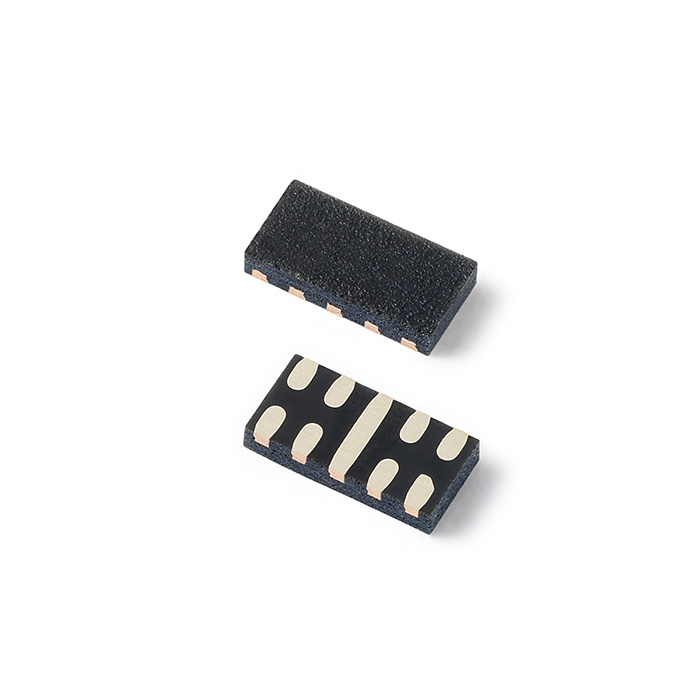

4Ch 12KV 5V 0.5pF TVS Diode Array u-DFN | Series: SP0544T
The SP0544T integrates 4 channels of ultra low capacitance rail-to-rail diodes and an additional zener diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). This robust device can safely absorb repetitive ESD strikes above the maximum level specified in the IEC61000-4-2 international standard (±8kV contact discharge) without performance degradation. The extremely low loading capacitance also makes it ideal for protecting high speed signal pins such as V-By-One, HDMI, USB3.0, USB2.0, and IEEE 1394
| Property | Value |
|---|---|
AEC-Q101 Qualified | Yes |
VR (Vstandoff) | 5 |
ILeak (µA) | 1.5 |
ESD Contact (kV) | ±12 |
ESD Air (kV) | ±25 |
Lightning Immunity (8x20µs)(A) | 4 |
Clamp Voltage | 6.6 |
CI/O TYP (pF) | 0.5 |
Polarity | Yes |
Channels | 4 |
Package | uDFN3020-10L |
Dynamic Resistance | 0.4 |
Record Type | H |
Item Records | 0 |
Clamping Voltage_string | 6.6 |
- ESD, IEC61000-4-2, ±12kV contact, ±15 kV air
- Lightning, IEC61000-4-5, 2nd edition,4A (tP=8/20μs)
- EFT, IEC61000-4-4, 40 A (tp = 5/50 ns)
- Low capacitance of 0.5 pF (TYP) per I/O
- Low leakage current of 1.5μA (MAX) at 5V
- Lead-free, halogen-free, and RoHS compliant
SP0544TUTG Applications
- V-By-One
- Embedded DisplayPort
- USB 2.0/3.0 Ports
- HDMI
- Flat Panel Displays
- LCD/LED TVs
- Smartphones
- Mobile Computing
