SP1027-01YTG

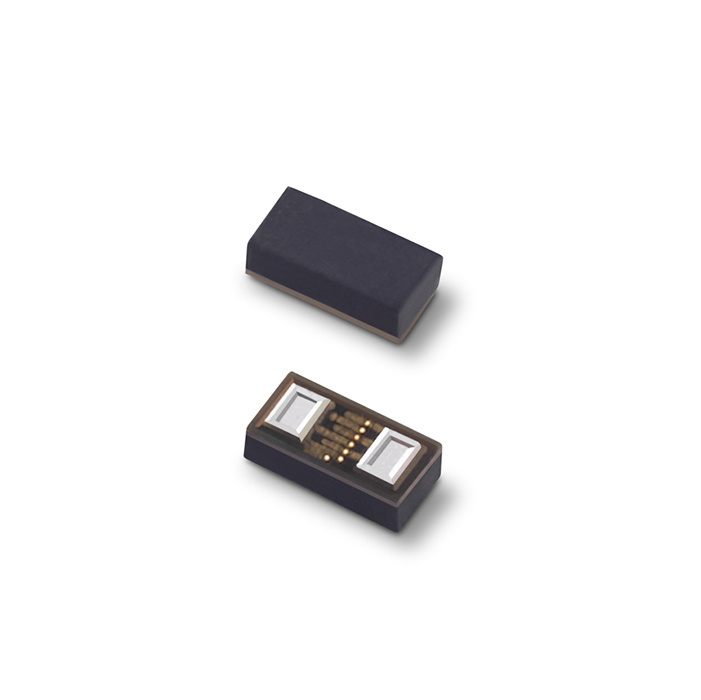

1ch 6.5pF 5V 14KV di-TVS Diode 00201 ECP | Series: SP1027
This series is not recommended for new designs. Suggests to use SP1026-01UTG for the new designs in near future.
The SP1027 back-to-back diodes are fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection
level for electronic equipment. The SP1027 TVS can safely absorb repetitive ESD strikes at the maximum level specified in the IEC 61000-4-2 international
standard (Level 4, ±8kV contact discharge) without performance degradation. The back-to-back configuration provides symmetrical ESD protection for data and I/O - lines. The WLCSP package is encapsulated in epoxy.
| Property | Value |
|---|---|
VR (Vstandoff) | 5 |
ILeak (µA) | 0.5 |
ESD Contact (kV) | ±14 |
ESD Air (kV) | ±14 |
Lightning Immunity (8x20µs)(A) | 2 |
Clamp Voltage | 10.5V@1A |
CI/O TYP (pF) | 6.5 |
Polarity | No |
Channels | 1 |
Package | ECP0603 |
Dynamic Resistance | 0.33 |
Record Type | H |
Item Records | 0 |
Clamping Voltage_string | 10.5V@1A |
- ESD, IEC 61000-4-2, ±14kV contact, ±25kV air
- IEC 61000-4-4 EFT protection: 40 A (5/50 ns)
- Lightning, 2 A (8/20 as defined in IEC 61000-4-5 2nd edition)
- Low capacitance of 6.5pF (TYP @ VR=0V)
- Low typical leakage current of 0.02 μA at 5 V
- Space efficient 0201
- Lead-free, halogen-free, and RoHS compliant
- Moisture Sensitivity Level (MSL -1)
SP1027-01YTG Applications
- Mobile Phones
- Smart Phones
- Camcorders
- Portable Medical
- Digital Cameras
- MP3/PMP
- Portable Navigation Components
- Tablets
- Point of Sale Terminals
