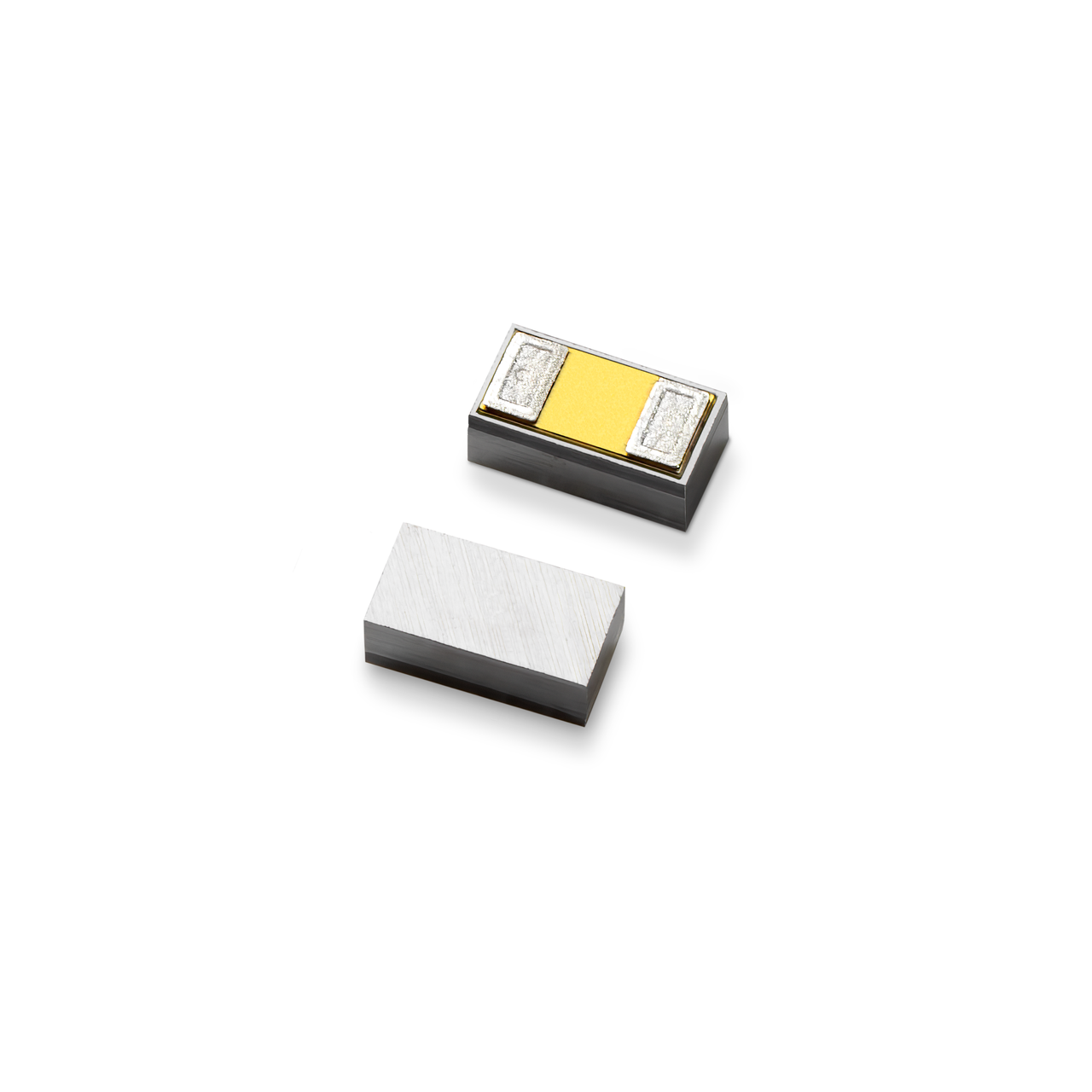

The SP1120-01WTG uni-directional TVS is fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The SP1120-01WTG TVS can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. In addition, it can safely dissipate a 5 A 8/20 μs surge event as defined in IEC 61000-4-5, 2nd edition.
- ESD, IEC 61000-4-2, ±30 kV contact/air
- EFT, IEC 61000-4-4, 40 A (5/50 ns)
- Maximum surge tolerance, IEC 61000- 4-5 2nd edition, 5 A (8/20 μs)
- Low leakage current of 100 nA (Max) at 20 V
- Halogen free, lead free and RoHS compliant
- Moisture Sensitivity Level (MSL-1)
SP1120-01WTG Parts
Link has been copied to clipboard
Filters
SP1120-01WTG Applications
- CC/SBU for USB PD3.1
- LCD/PDP TVs
- Mobile Phones
- Set Top Boxes
