SP1124T-01UTG

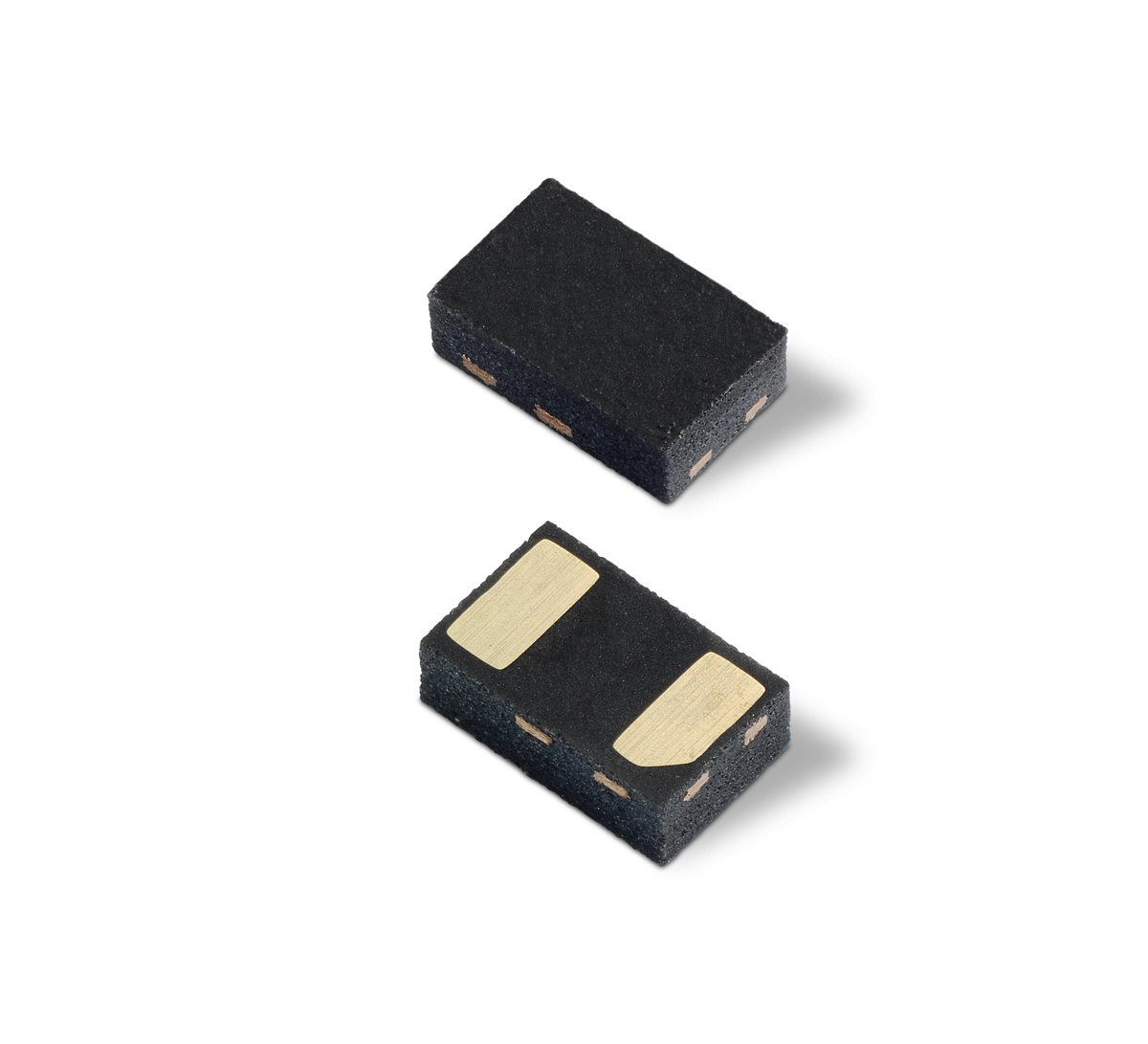

30KV 24V 20A TVS Diod thin uDFN-2 | Series: SP1124T
This series is not recommended for new designs. Suggests to use SP1124-01UTG for the new designs in near future.
This TVS diode is fabricated in a proprietary silicon avalanche technology and is used for high level protection of electronic equipment that may experience destructive electrostatic discharges (ESD). These robust TVS diodes can safely absorb repetitive ESD strikes at ±30kV (contact and air discharge, IEC 61000-4-2) without performance degradation. Additionally, SP1124T offers up to 20A 8/20 surge rating with low clamping voltages.
| Property | Value |
|---|---|
VR (Vstandoff) | 24 |
ILeak (µA) | 1 |
ESD Contact (kV) | ±30 |
ESD Air (kV) | ±30 |
Lightning Immunity (8x20µs)(A) | 20 |
Clamp Voltage | 29V@1A |
CI/O TYP (pF) | 130 |
Polarity | Yes |
Channels | 1 |
MIN VBR@IT (V) | 26.7 |
Package | uDFN0603 |
Dynamic Resistance | 0.1 |
Record Type | H |
Item Records | 0 |
Clamping Voltage_string | 29V@1A |
- IEC 61000-4-2 ESD protection: ±30kV by contact and ±30 kV through air
- IEC 61000-4-4 EFT protection: 40 A (5/50 ns)
- Lightning, IEC 61000-4-5 2nd edition, 20A (tP=8/20μs)
- Low clamping voltage
- Low leakage current
- Moisture Sensitivity Level (MSL-1)
- Lead free and RoHS compliant
SP1124T-01UTG Applications
- Switches and Buttons
- Test Equipment and Instrumentation
- Point-of-Sale Terminals
- Medical Equipment
- Notebooks / Desktops / Servers
- Computer Peripherals
- Automotive Electronics
