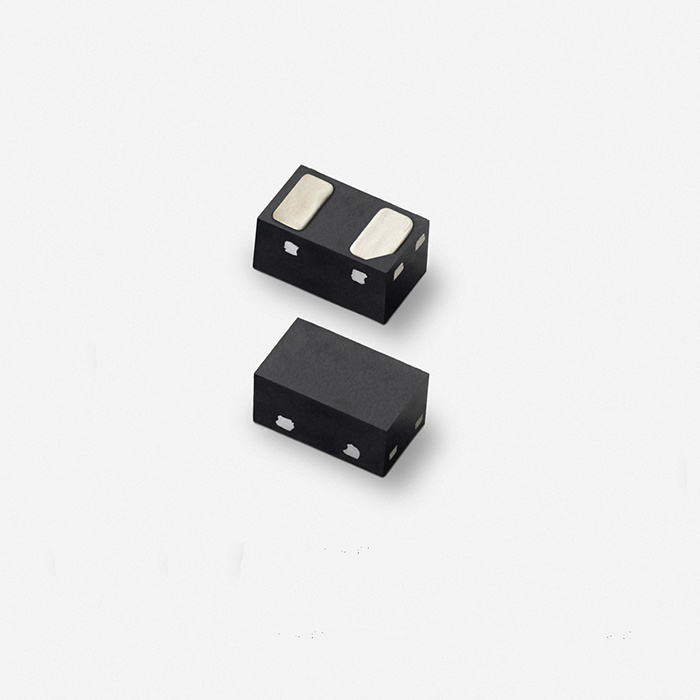

1Ch 5V 30KV 12A Unidirectional TVS Diode | Series: SP1212
Avalanche breakdown diodes fabricated in a proprietary silicon avalanche technology protect each I/O pin to provide a high level of protection for electronic equipment that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes at ±30kV (contact discharge, IEC 61000-4-2) without performance degradation. Additionally, each diode can safely dissipate 12A of 8/20μs surge current (IEC 61000-4-5 2nd edition).
| Property | Value |
|---|---|
VR (Vstandoff) | 5 |
ILeak (µA) | 1 |
ESD Contact (kV) | ±30 |
ESD Air (kV) | ±30 |
Lightning Immunity (8x20µs)(A) | 12 |
Clamp Voltage | 7.5V@1A |
CI/O TYP (pF) | 290 |
Polarity | Unidirectional |
Channels | 1 |
Package | SOD882 |
Dynamic Resistance | 0.33 |
Record Type | H |
Item Records | 0 |
Clamping Voltage_string | 7.5V@1A |
- IEC 61000-4-2 ESD protection: ±30kV by contact and ±30 kV through air
- IEC 61000-4-4 EFT protection: 40 A (5/50 ns)
- Lightning, IEC 61000- 4-5 2nd edition, 12A (tP=8/20μs)
- AEC-Q101 qualified
- Lead free and RoHS compliant
- Moisture Sensitivity Level(MSL -1)
SP1212-01ETG Applications
- Switches and Buttons
- Test Equipment and Instrumentation
- Point-of-Sale Terminals
- Medical Equipment
- Notebooks / Desktops / Servers
- Computer Peripherals
