SP8143-06UTG

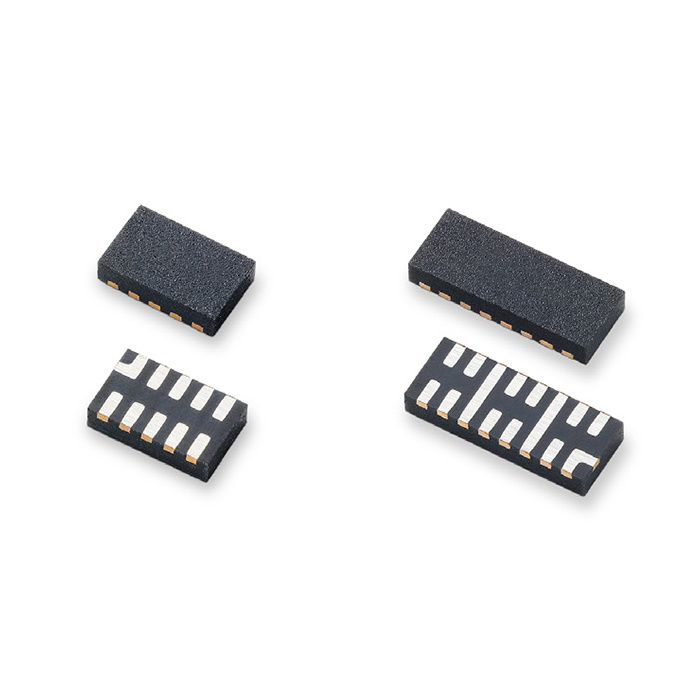

6 Ch 22KV 5V TVS Diode Array uDFN-14L | Series: SP814x
The SP814x series integrates 4 or 6 channels of ultra low capacitance rail-to-rail diodes and an additional zener diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). This robust device can safely absorb repetitive ESD strikes above the maximum level specified in the IEC61000-4-2 international standard (±8kV contact discharge) without performance degradation. The extremely low loading capacitance also makes it ideal for protecting high speed signal pins such as HDMI2.0, USB3.0, USB2.0, and IEEE 1394.
| Property | Value |
|---|---|
AEC-Q101 Qualified | Yes |
VR (Vstandoff) | 5 |
ILeak (µA) | 0.025 |
ESD Contact (kV) | ±22 |
ESD Air (kV) | ±22 |
Lightning Immunity (8x20µs)(A) | 2.5 |
Clamp Voltage | 9.2V@1A/10.3V@2A |
CI/O TYP (pF) | 1 |
Polarity | Yes |
Channels | 6 |
Package | uDFN3513-14L |
Dynamic Resistance | 1.1 |
Record Type | H |
Item Records | 0 |
- ESD IEC61000-4-2, ±22 kV by contact, ±22 kV through air
- EFT protection, IEC61000-4-4, 40 A (tp = 5/50 ns)
- Lightning Protection, IEC61000-4-5 2nd edition, 2.5 A (tp=8/20μs)
- Low typical capacitance of 1 pF per I/O
- Low typical leakage current of 25 nA at 5 V
- Small form factor μDFN packages (JEDEC MO-229) saves board space
SP8143-06UTG Applications
- LCD/PDP TVs
- External Storage
- DVD/ Blue-Ray Players
- Desktops/Servers
- Notebooks/Tablets
- Set Top Boxes
- Mobile Phones
- Flash Memory Cards
