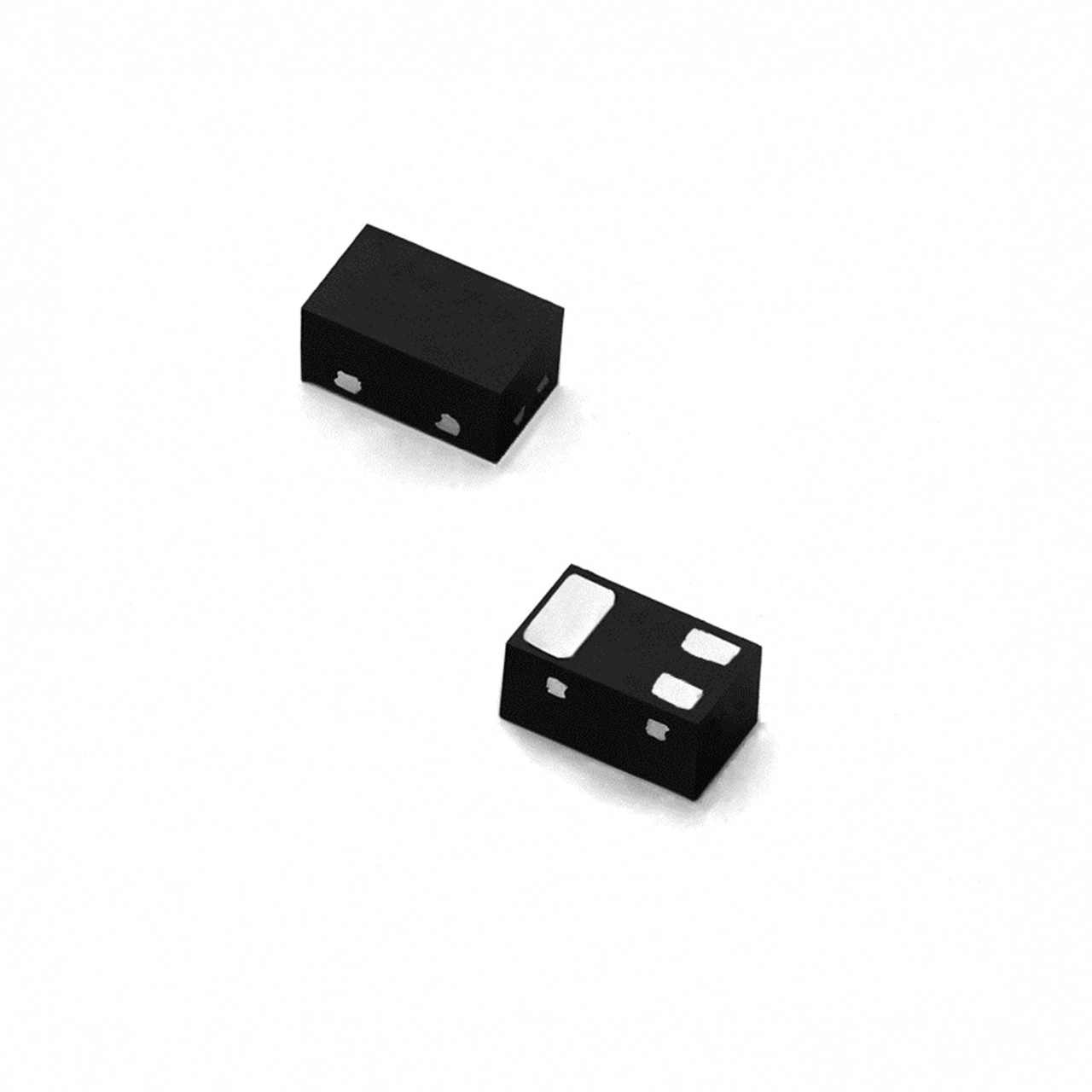

SC3402-02ETG
"5 V, 0.45 pF, 15 kV, SOD883". | Series: SC3402-02ETG
The SC3402-02ETG provides ultra-low capacitance, unidirectional and a high level of protection for 2-channel electronic equipment that may experience destructive electrostatic discharges (ESD). The typical capacitance of 0.4 pF helps ensure excellent signal integrity on the most challenging consumer electronics interfaces, such as High-Definition Multimedia Interface (HDMI) and DisplayPort interfaces, and USB 3.0/3.1 Gen 1. It can safely absorb repetitive ESD strikes at ±15 kV (contact discharge, IEC 61000-4-2) without performance degradation and safely dissipate 7 A of 8/20 μs surge current (IEC 61000-4-5 2nd edition).
| Property | Value |
|---|---|
AEC-Q101 Qualified | No |
Package | SOD883 |
VR (Vstandoff) | 5 |
ILeak (µA) | 0.1 |
MIN VBR@IT (V) | 6.5 |
Clamp Voltage | 4.5V@16A |
ESD Contact (kV) | 15 |
ESD Air (kV) | 20 |
Lightning Immunity (8x20µs)(A) | 7 |
CI/O TYP (pF) | 0.4 |
Polarity | Unidirectional |
Channels | 2 |
Operating Temperature Min (°C) | -40 |
Operating Temperature Max (°C) | 125 |
Dynamic Resistance | 0.17 |
Clamping Voltage_string | 4.5 |
Device Description_string | 5 V, 0.4 pF, 15 kV, SOD883 |
Device Description | 5 V, 0.4 pF, 15 kV, SOD883, Ultra Low Capacitance ESD protection |
- ESD, IEC 61000-4-2, ±15 kV contact, ±20 kV air
- EFT, IEC 61000-4-4, 40 A (5/50 ns)
- Maximum surge tolerance, IEC 61000- 4-5 2nd edition, 7 A (8/20 μs)
- Low leakage current of 100 nA (Max) at 5 V
- Ultra low capacitance of 0.4 pF (Typ @ VR = 0 V)
- Tiny SOD883 package saves board space
- Moisture Sensitivity Level(MSL -1)
- Halogen free, lead free and RoHS compliant
SC3402-02ETG Applications
- USB 2.0/3.0
- USB 3.1 Gen 1
- HDMI
- DisplayPort interfaces
