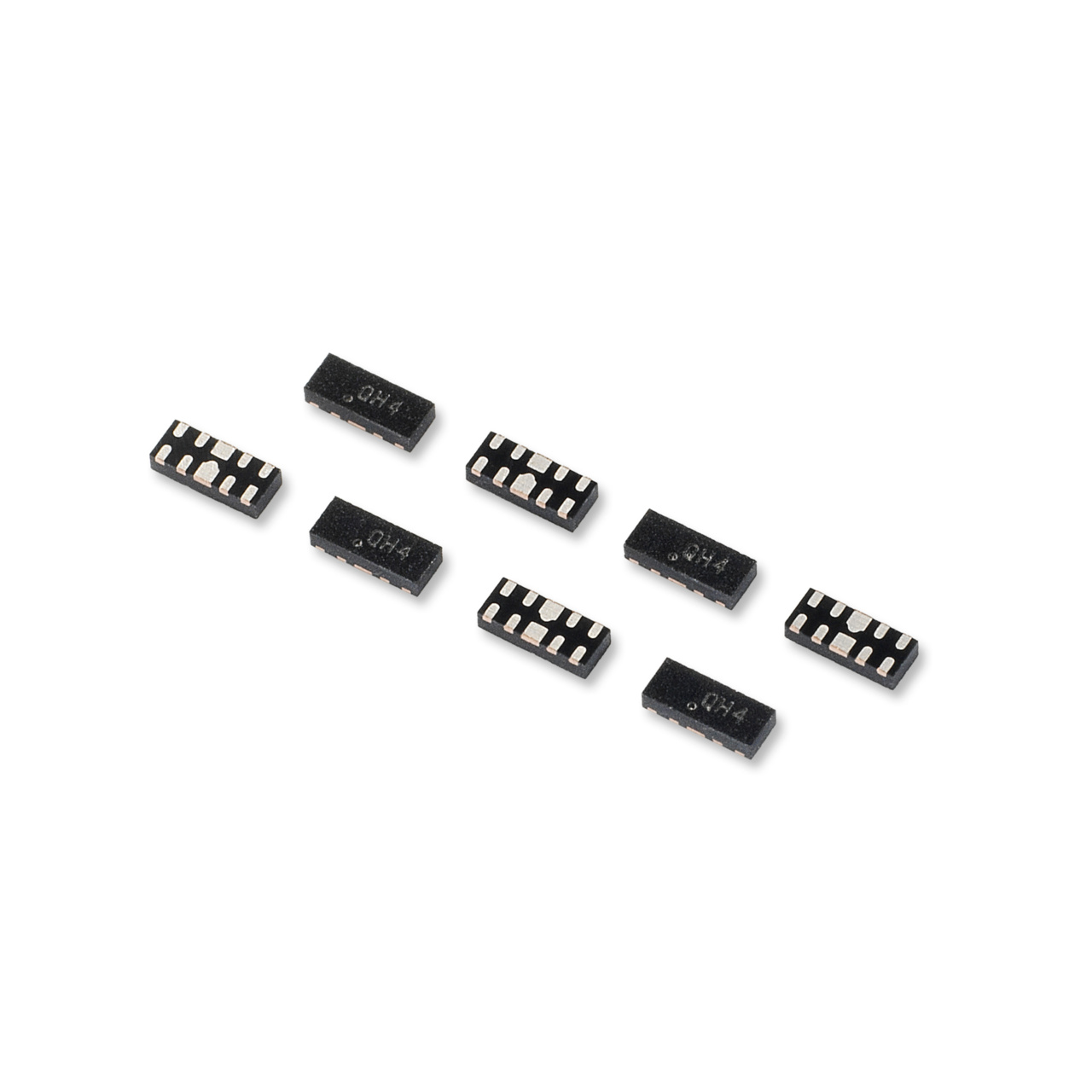

SP3010-04UTG
4Ch 0.45pF 8kV 5V Diode Array uDFN | Series: SP3010
The SP3010-04UTG integrates 4 channels of ultra-low capacitance rail-to-rail diodes and an additional zener diode to provide protection for electronic equipment that may experience destructive electrostatic discharges (ESD). This robust device can safely absorb repetitive ESD strikes at the maximum level specified in the IEC61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation. The extremely low loading capacitance also makes it ideal for protecting high speed signal pins such as HDMI, USB3.0, USB2.0, and IEEE 1394.
| Property | Value |
|---|---|
VR (Vstandoff) | 6 |
ESD Contact (kV) | 8 |
ESD Air (kV) | 15 |
Lightning Immunity (8x20µs)(A) | 3 |
Clamp Voltage | 12.3V@2A |
CI/O TYP (pF) | 0.45 |
Polarity | Bidirectional |
Channels | 4 |
Package | uDFN2510-10L |
Record Type | H |
Item Records | 0 |
Clamping Voltage_string | 12.3V@2A |
- ESD, IEC 61000-4-2, ±8kV contact, ±15 kV air
- IEC 61000-4-4 EFT protection: 40 A (5/50 ns)
- Lightning, IEC 61000-4-5 2nd edition, 3A (tP=8/20μs)
- Low capacitance of 0.45pF (TYP) per I/O
- Low leakage current of 0.1μA (TYP) at 5V
- Small form factor μDFN( JEDEC MO-229) package saves board space
- RoHS compliant and lead-free
- AEC-Q101 qualified
SP3010-04UTG Applications
- LCD/PDP TVs
- Set Top Boxes
- DVD Players
- Mobile phones
- Desktops
- Notebooks
- MP3/PMP
- Digital Camera
