The SP3011 integrates 6 channels of ultra-low capacitance rail-to-rail diodes and an additional zener diode to provide protection for USB 3.0 ports that may experience destructive electrostatic discharges (ESD). This high density array can safely absorb repetitive ESD strikes at the maximum level specified in the IEC61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation. It's extremely low loading capacitance also makes it ideal for protecting high speed signal pins.
- ESD, IEC61000-4-2, ±8kV contact, ±15kV air
- EFT, IEC61000-4-4, 40A (5/50ns)
- Lightning, IEC61000-4-5, 3A (8/20μs)
- Low capacitance of 0.4pF (TYP) per I/O
- Low leakage current of 0.1 µA (TYP) at 5V

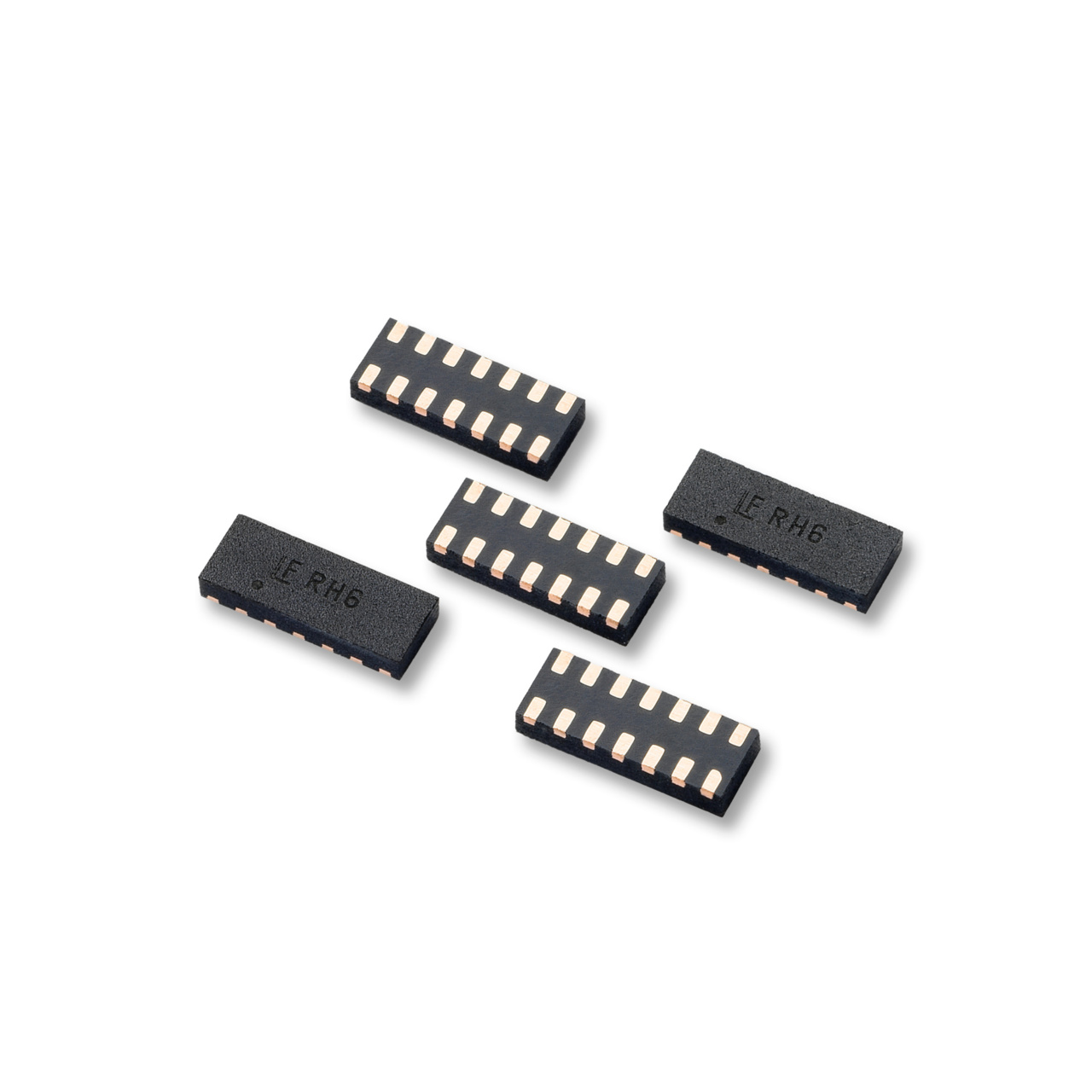

- Small form factor µDFN package saves board space
- RoHS compliant and lead-free
- AEC-Q101 qualified
SP3011 Parts
Link has been copied to clipboard
Filters
SP3011 Applications
- Notebooks
- External Storage
- Digital Camcorder
- MPC/PMP Player
- Ultramobile PC
- Desktops
- Smartphone
- Set Top Box (DVR/PVR)
