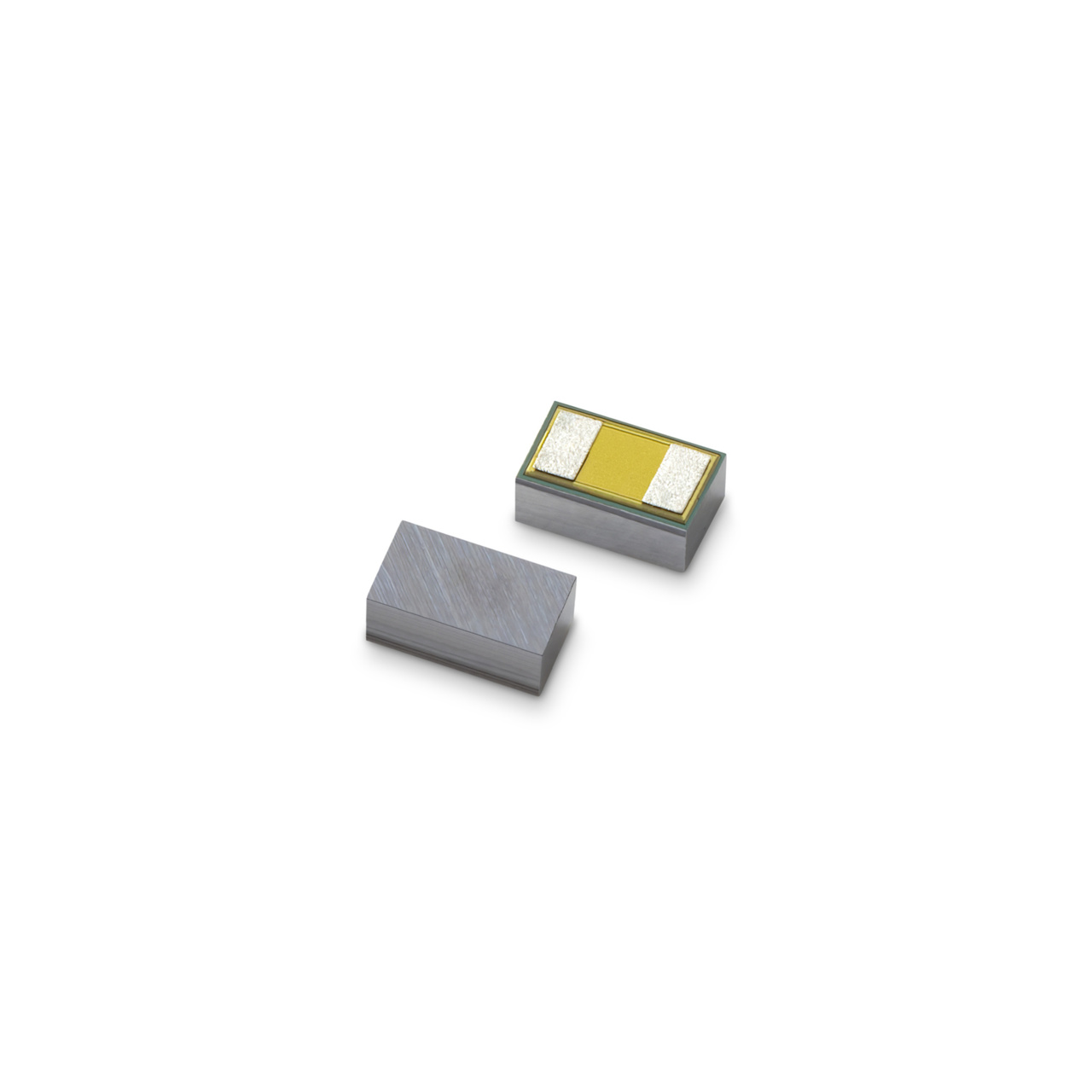

The SP4320-01WTG provides ultra-low capacitance, bidirectional and a high level of protection for 1 channel electronic equipment that may experience destructive electrostatic discharges (ESD).
The typical capacitance of 0.3 pF helps ensure excellent signal integrity on the most challenging consumer electronics interfaces, such as DisplayPort interfaces, Thunderbolt and high speed USB.
It can safely absorb repetitive ESD strikes at ±14 kV (contact discharge, IEC 61000-4-2) without performance degradation.
- Ultra low capacitance of 0.3 pF (Typ @ VR = 0 V)
- Maximum surge tolerance, IEC 61000-4-5, 2nd edition, 6 A (8/20 μs)
- Low leakage current of 50 nA (Max) at 20 V
- Space efficient 0201
- ESD, IEC 61000-4-2, ±14 kV contact, ±16 kV Air
- Halogen-free, lead-free and RoHS compliant
SP4320-01WTG Parts
Link has been copied to clipboard
Filters
SP4320-01WTG Applications
- Cell phone
- Computing
- DisplayPort
- MIPI
- S-ATA
- USB CC/SBU
