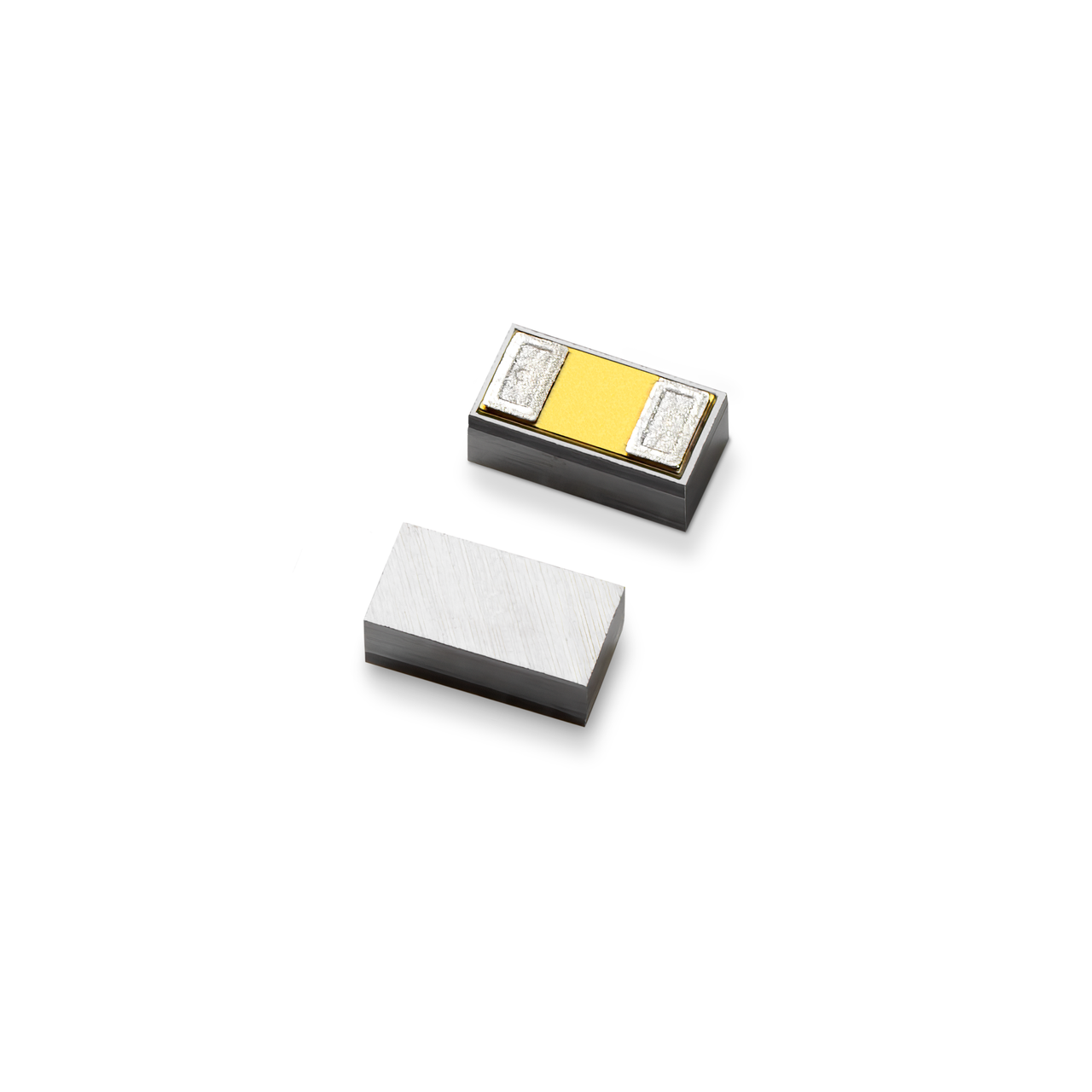

SP4340L-01WTG
"4V, 0.45pF, 20A, Flipchip" | Series: SP4340L-01WTG
The SP4340L-01WTG provides ultra-low capacitance, bidirectional and a high level of protection for electronic equipment that may experience destructive electrostatic discharges (ESD). The typical capacitance of 0.45 pF helps ensure excellent signal integrity on the most challenging consumer electronics interfaces. It can safely absorb repetitive ESD strikes at ±30 kV (contact discharge, IEC 61000-4-2) without performance degradation and safely dissipate 20 A of 8/20 μs surge current (IEC 61000-4-5 2nd edition).
| Property | Value |
|---|---|
AEC-Q101 Qualified | No |
Package | Flipchip |
VR (Vstandoff) | 4 |
ILeak (µA) | 0.05 |
MIN VBR@IT (V) | 5.5 |
Clamp Voltage | 4V @20A |
ESD Contact (kV) | 30 |
ESD Air (kV) | 30 |
Lightning Immunity (8x20µs)(A) | 20 |
CI/O TYP (pF) | 0.45 |
Polarity | Bidirectional |
Clamping Voltage_string | 6.5V |
Channels | 1 |
Operating Temperature Min (°C) | -40 |
Operating Temperature Max (°C) | 125 |
Dynamic Resistance | 0.1 |
Device Description_string | 4.0 V, 0.45 pF, 20 A, Flipchip |
CMAX | 0.55 |
- ESD, IEC 61000-4-2, ±30 kV contact/air
- EFT, IEC 61000-4-4, 50 A (5/50 ns)
- Maximum surge tolerance, IEC 61000-4-5, 2nd edition, 20 A (8/20 μs)
- Low leakage current of 50 nA (Max) at 4 V
- Ultra low capacitance of 0.55 pF (Typ @ VR = 0 V)
- Halogen-free, lead-free and RoHS compliant
- Moisture Sensitivity Level (MSL-1)
SP4340L-01WTG Applications
- 1G/2.5G/10G Ethernet
- DisplayPort interface
- HDMI2.0 data lines
- Audio/A2B
- USB2.0/3.0
- USB 3.1 Gen 1
