TP1KSMB64CA-FL

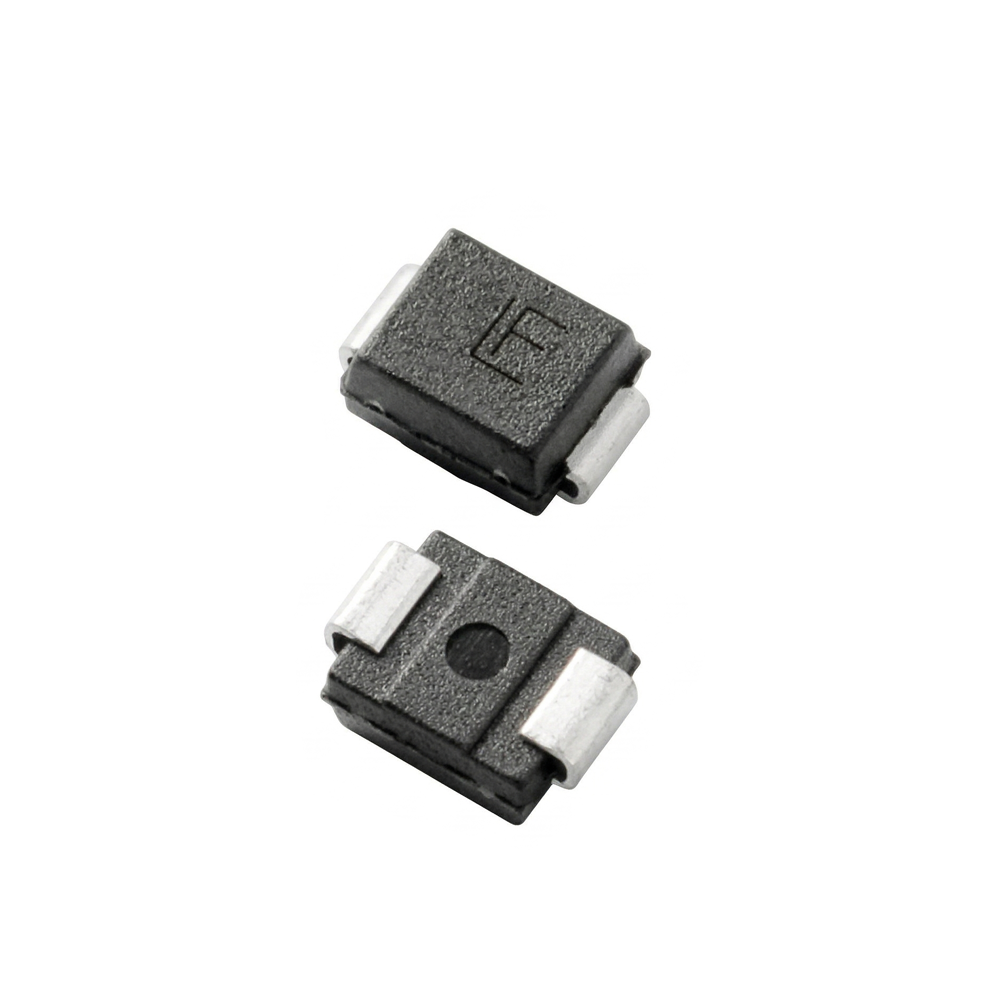

TVS SURF MT LOW Vcl DO214AA AECQ101 T&R. | Series: TP1KSMB-FL
The TP1KSMB-FL is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
| Property | Value |
|---|---|
VR (Vstandoff) | 64 |
Watts (W) | 1000 |
I PP 10x1000µs (A) | 9.7 |
MIN VBR@IT (V) | 71.1 |
MAX VBR@IT (V) | 78.6 |
Vc (V) | 80 |
IT (mA) | 1 |
Operating Temperature Max (°C) | 150 |
Uni / Bi-Directional | Bidirectional |
Package | DO-214AA |
Peak Pulse Power - 10x1000 (W) | 1000 |
TYP VBR@IT (V) | 74.85 |
- FlatSuppressX™ TVS provides superior surge protection, maintaining a flat and stable clamping voltage through its advanced foldback I‑V characteristics.
- High reliability application and automotive grade AEC-Q101 qualified
- 1001 W peak pulse power capability
- For surface mounted applications to optimize board space
- Excellent clamping capability with low clamping voltage
- Low profile package
- Typical failure mode is short from over-specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- Low incremental surge resistance
- High temperature soldering guaranteed: 260 °C/10 seconds at terminals
TP1KSMB64CA-FL Applications
- Protection of I/O Interfaces, Vcc bus and other vulnerable circuits
- Automotive electronic applications
- 48 V battery protection
