TP5.0SMD64CA-FL
TVS SURF MT LOW Vcl DO214AB AECQ101 T&R. | Series: TP5.0SMD-FL
The TP5.0SMD-FL Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
| Property | Value |
|---|---|
VR (Vstandoff) | 64 |
Watts (W) | 5000 |
I PP 10x1000µs (A) | 48.4 |
MIN VBR@IT (V) | 71.1 |
MAX VBR@IT (V) | 78.6 |
Vc (V) | 80.5 |
IT (mA) | 1 |
Operating Temperature Max (°C) | 175 |
Uni / Bi-Directional | Bidirectional |

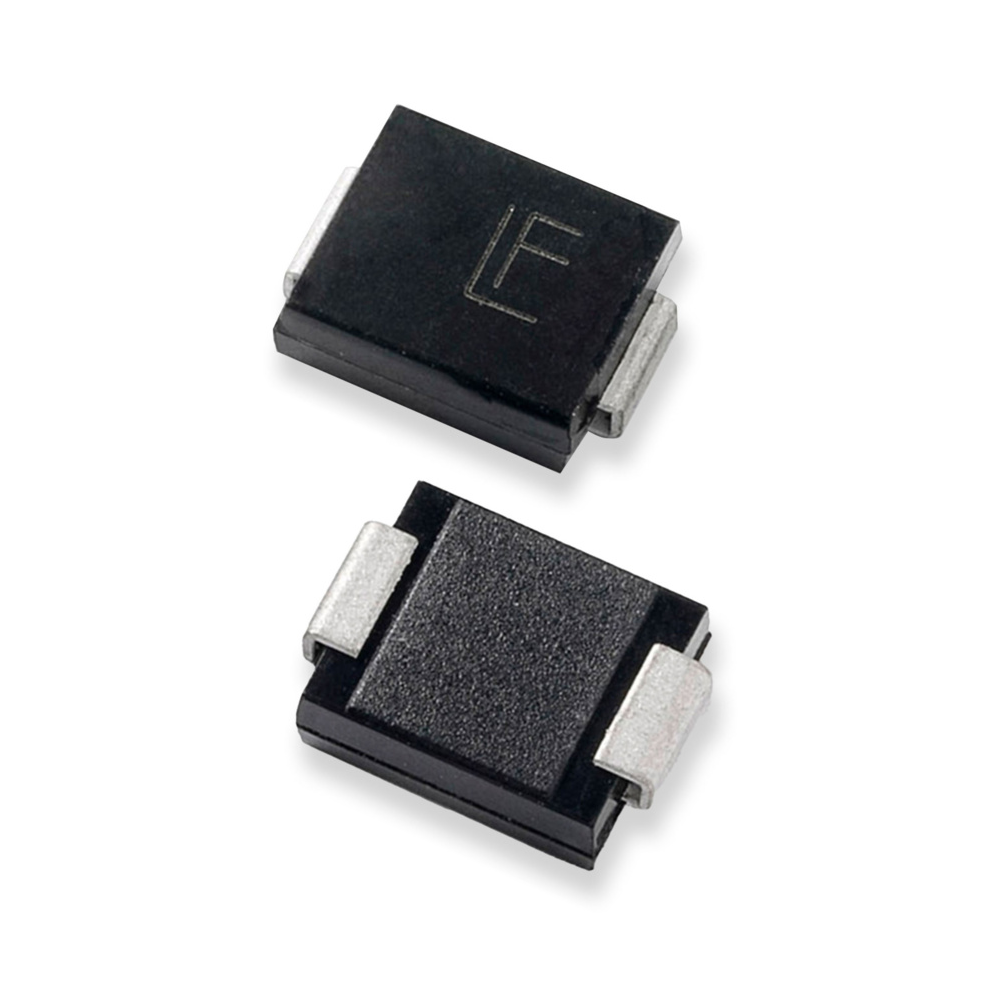

Package | DO-214AB |
Peak Pulse Power - 10x1000 (W) | 5000 |
TYP VBR@IT (V) | 74.85 |
- FlatSuppressX™ TVS provides superior surge protection, maintaining a flat and stable clamping voltage through its advanced foldback I‑V characteristics.
- High reliability application and automotive grade AEC-Q101 qualified
- 5001 W peak pulse power capability
- For surface mounted applications to optimize board space
- Excellent clamping capability with low clamping voltage
- Low profile package
- Typical failure mode is short from over-specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- Low incremental surge resistance
- High temperature soldering guaranteed: 260 °C/10 seconds at terminals
TP5.0SMD64CA-FL Applications
- Protection of I/O Interfaces, Vcc bus and other vulnerable circuits
- Automotive electronic applications
- 48 V battery protection
TP5.0SMD64CA-FL Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| TP5.0SMD64CA-FL | TVS SURF MT LOW Vcl DO214AB AECQ101 T&R. | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
