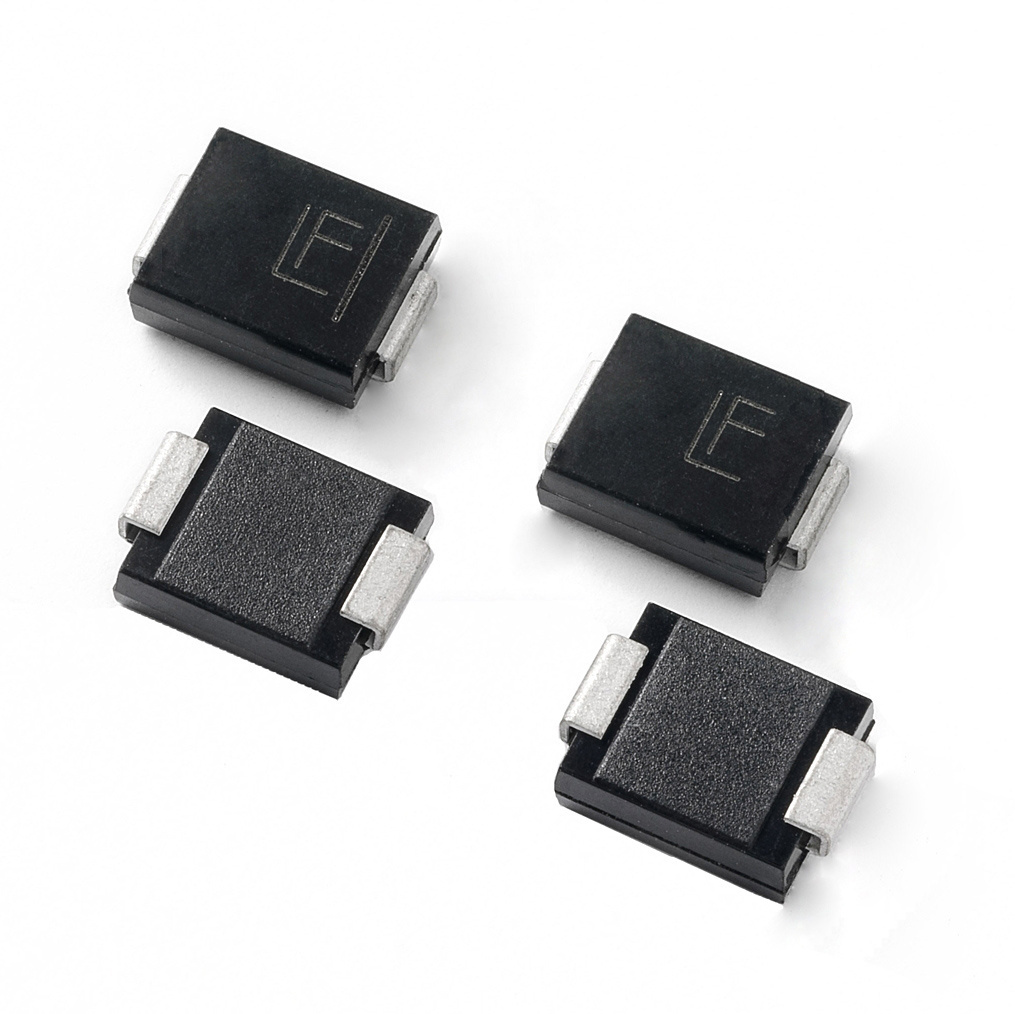

TP8.0SMDJ100CA
TVS 8KW AECQ-101 TR13 RoHS | Series: TP8.0SMDJ
The TP8.0SMDJ series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
| Property | Value |
|---|---|
VR (Vstandoff) | 100 |
Watts (W) | 8000 |
I PP 10x1000µs (A) | 49.4 |
MIN VBR@IT (V) | 123 |
MAX VBR@IT (V) | 111 |
Vc (V) | 162 |
IT (mA) | 1 |
Operating Temperature Max (°C) | 150 |
Uni / Bi-Directional | Bidirectional |
Package | DO-214AB |
Ir@Vr(µA) | 5 |
Peak Pulse Power - 10x1000 (W) | 8000 |
Tolerance % | 5 |
- High reliability application and automotive grade AEC-Q101 qualified
- 8kW peak pulse power capability at 10/1000 μs waveform, repetition rate (duty cycles):0.01 %
- SMD low profile surface mount package minimizing PCB footprint
- Typical failure mode is short from over-specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- ESD protection of data lines in accordance with IEC 61000-4-2, 30kV(Air), 30kV (Contact)
- Built-in strain relief
- Glass passivated chip junction
- Fast response time: typically less than 1.0ps from 0V to VBR min
- Excellent clamping capability
TP8.0SMDJ100CA Applications
- TVS components are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in automotive applications.
