TPSMA6L43A-E

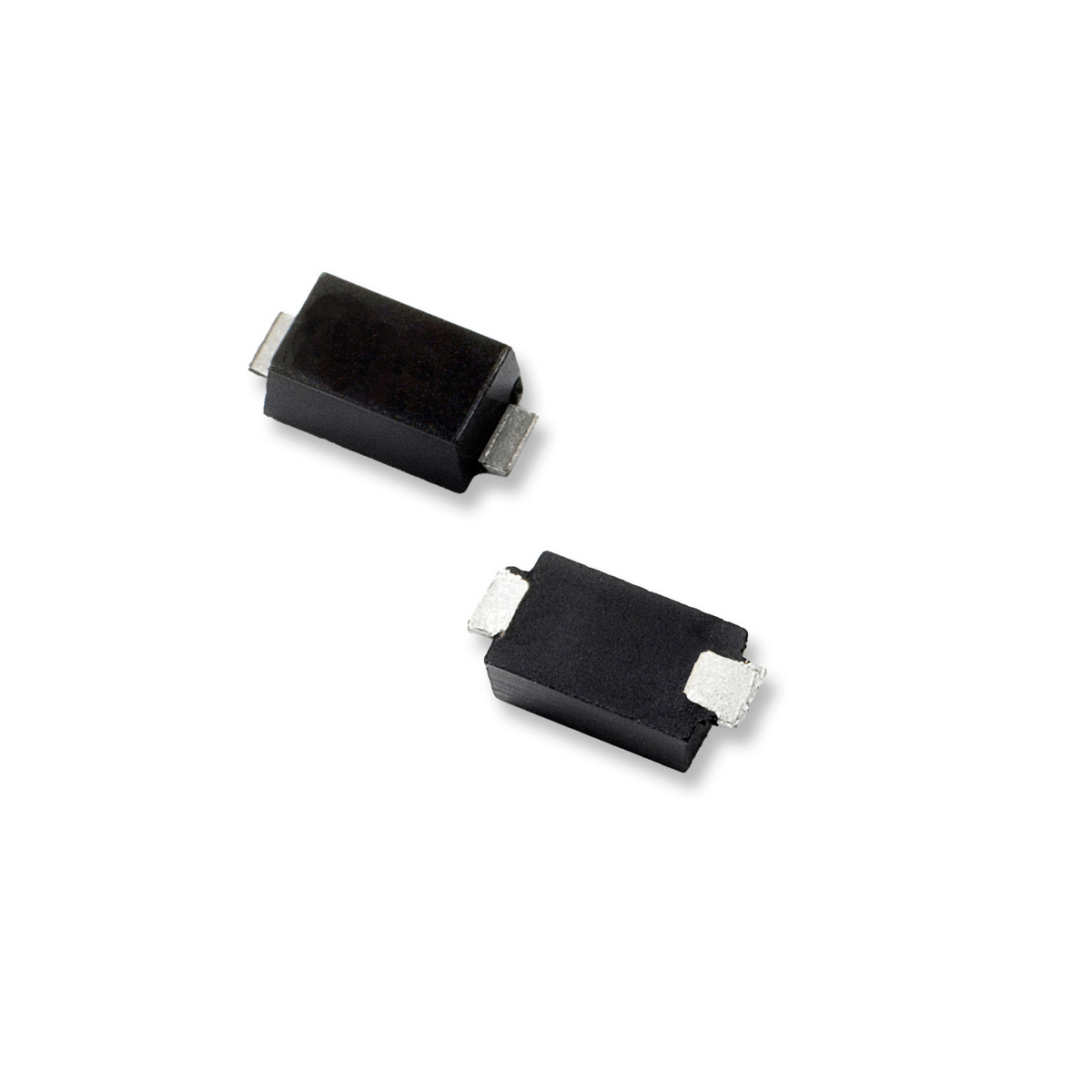

Name: TVS in SOD-128
Brand: Littelfuse

Product Status| Activei

TPSMA6L43A-E

TVS in SOD-128 | Series: TPSMA6L-E

Littelfuse TPSMA6L-E Series of Transient Voltage Suppression (TVS) Diodes can provide secondary transient voltage protection from transients induced by load dump and other transient voltage events for sensitive electronics. The TPSMA6L-E Series offers superior electrical performance in a small footprint SOD128 package, allowing designers to upgrade their circuit protection without altering their existing design footprint or provide more robust protection in new circuit layouts.

Property	Value
V_R (V_standoff)	43
Package	SOD-128
Watts (W)	600
I _PP 10x1000µs (A)	8.6
MIN V_BR@I_T (V)	47.8
MAX V_BR@I_T (V)	52.8
V_c (V)	69.4
I_T (mA)	1
Operating Temperature Max (°C)	185
Uni / Bi-Directional	Unidirectional
V_R (V_so)	43
Peak Pulse Power - 10x1000 (W)	600
TYP V_BR@I_T (V)	50.3
Polarity	Unidirectional
Ir@Vr(µA)	0.5

600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01%
Low profile package (SOD128)
AEC-Q101 qualified and PPAP capable
Top-glass technology for enhanced reliability TVS
Low incremental surge resistance
Manufactured outside China and Taiwan

Ideal for automated placement
Excellent clamping capability
Very fast response time
Component in accordance to RoHS 2011/65/EU and WEEE 2002/96/EC
Meets MSL level 1, per J-ED-020, LF maximum peak of 260 ºC

TPSMA6L43A-E Applications

Highlights Section

Integrated Circuits (ICs)
MOSFETs
Signal Lines of Sensor Units
