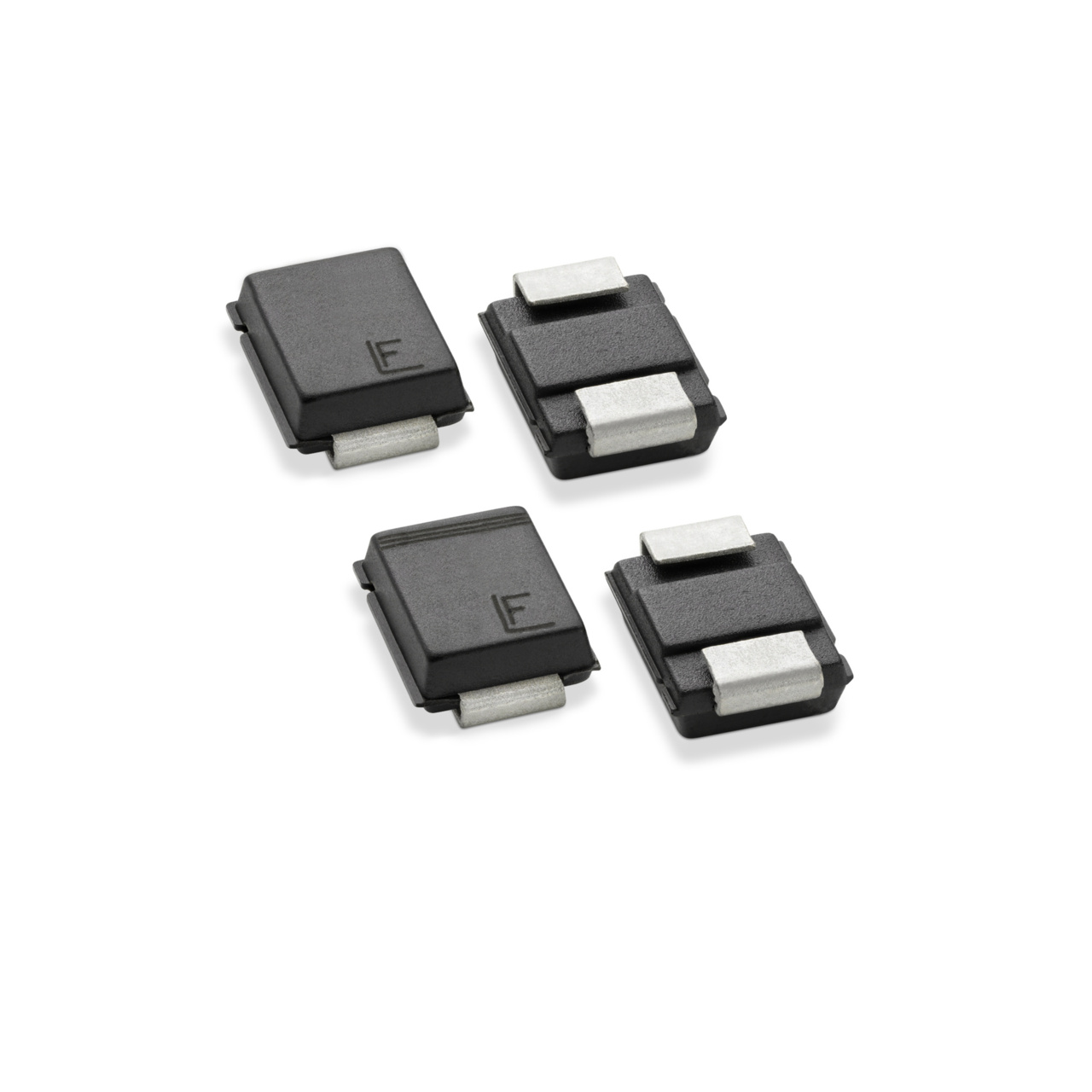

Littelfuse TPSMB-EVR Series of Transient Voltage Suppression (TVS) Diodes can provide secondary transient voltage protection from transients induced by load dump and other transient voltage events for sensitive electronics. The TPSMB-EVR Series offers superior electrical performance in a small footprint DO-214 package, allowing designers to upgrade their circuit protection without altering their existing design footprint or provide more robust protection in new circuit layouts.
- AEC-Q101 qualified
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ºC
- Low profile package
- Ideal for automated placement
- 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01%
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Available in uni-directional and bi-directional
- Solder dip 260 ºC, 10s
TPSMB-EVR Parts
Link has been copied to clipboard
Filters
TPSMB-EVR Applications
- ICs
- MOSFETs
- Signal lines of sensor units
