TPSMC8.2A-E

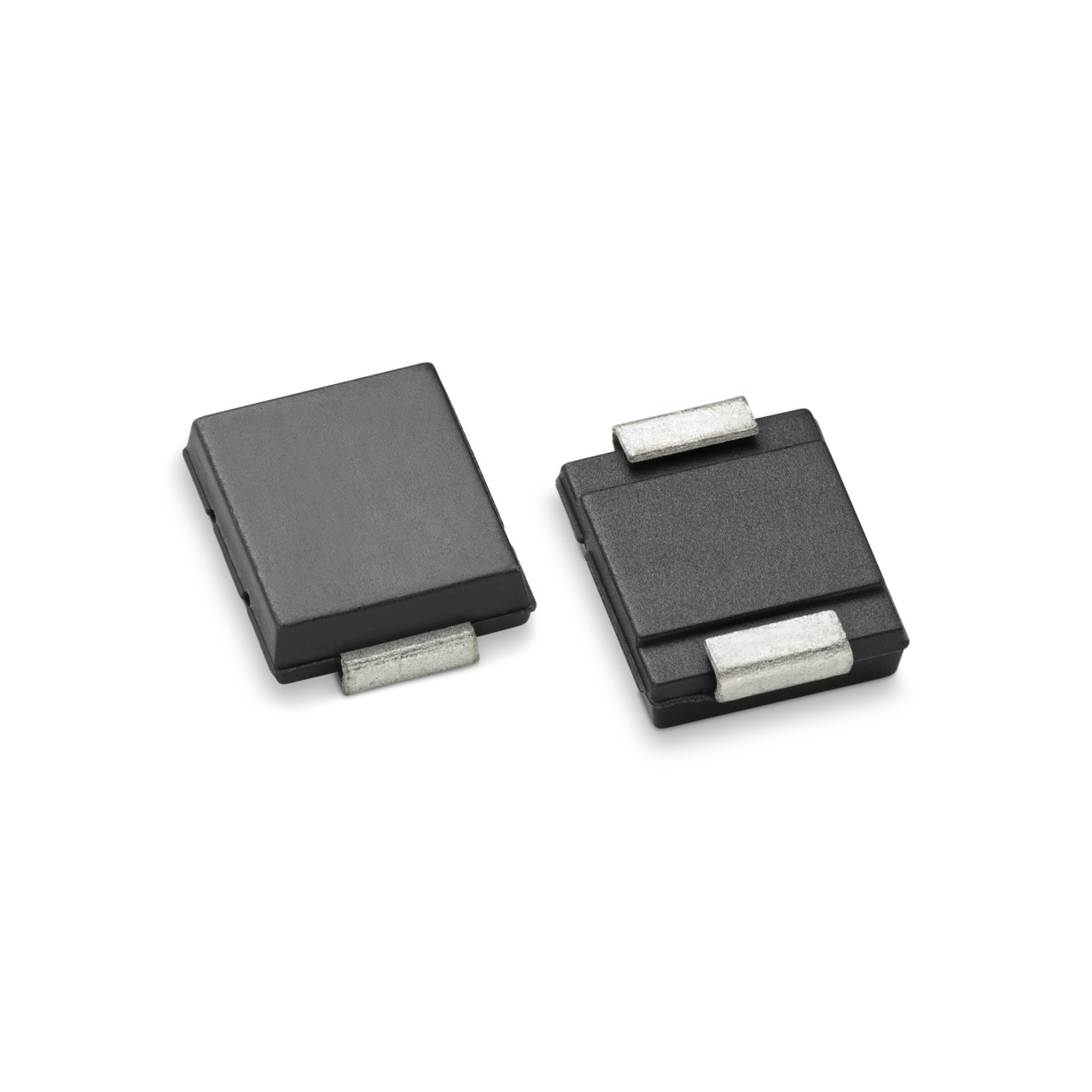

Auto TVS in DO-214AB | Series: TPSMC-E
Littelfuse TPSMC-E Series of Transient Voltage Suppression (TVS) Diodes can provide secondary transient voltage protection from transients induced by load dump and other transient voltage events for sensitive electronics. The TPSMC-E Series offers superior electrical performance in a small footprint DO-214 package, allowing designers to upgrade their circuit protection without altering their existing design footprint or provide more robust protection in new circuit layouts.
| Property | Value |
|---|---|
VR (Vstandoff) | 7.02 |
Watts (W) | 1500 |
I PP 10x1000µs (A) | 124 |
MIN VBR@IT (V) | 7.79 |
MAX VBR@IT (V) | 8.61 |
Vc (V) | 12.1 |
Operating Temperature Max (°C) | 175 |
Uni / Bi-Directional | Unidirectional |
Package | DO-214AB |
VR (Vso) | 7.02 |
Peak Pulse Power - 10x1000 (W) | 1500 |
TYP VBR@IT (V) | 8.2 |
Polarity | Unidirectional |
- AEC-Q101 qualified
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ºC
- Meets ESD HBM: 8 kV and M4 machine model: 400 V
- Low profile package
- Ideal for automated placement
- 1500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01%
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Available in uni-directional and bi-directional
TPSMC8.2A-E Applications
- Protects sensitive electronics from voltage transients caused by inductive load switching and lightning events
- Designed for safeguarding ICs and MOSFETs against transient overvoltage stress
- Ideal for protecting signal lines in sensor units and control circuits
- Enhances system reliability by preventing transient-induced damage
- Suitable for use in industrial, automotive, and telecommunication applications
