TPSMF4L30A-E

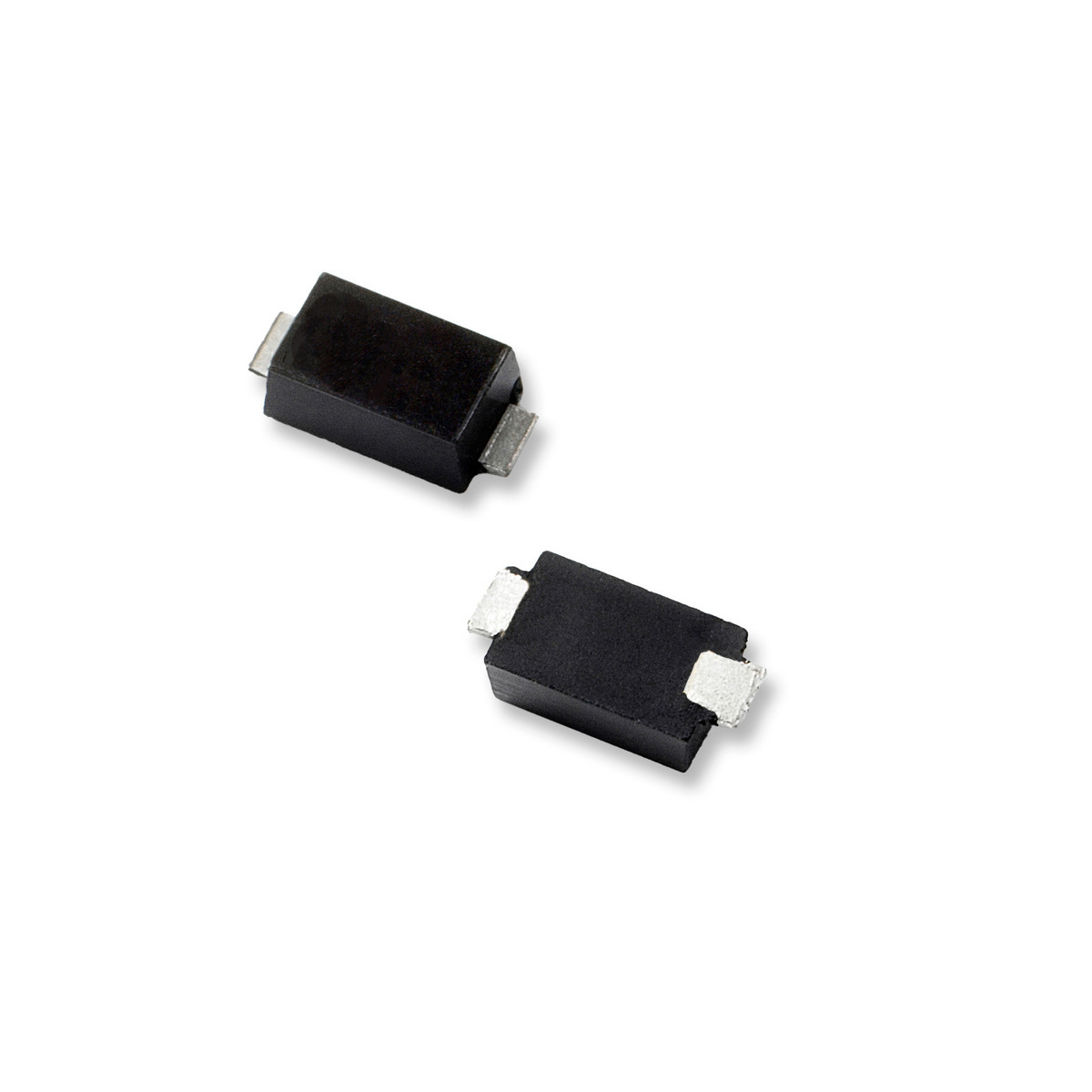

TVS in SOD-123 | Series: TPSMF4L-E
The TPSMF4L-E series in SOD-123FL flat lead low-profile package is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events, and it’s especially suitable for automotive application.
| Property | Value |
|---|---|
VR (Vstandoff) | 30 |
Package | SOD-123FL |
Watts (W) | 400 |
I PP 10x1000µs (A) | 8.3 |
MIN VBR@IT (V) | 33.3 |
MAX VBR@IT (V) | 36.8 |
Vc (V) | 48.4 |
IT (mA) | 1 |
Operating Temperature Max (°C) | 175 |
Uni / Bi-Directional | Unidirectional |
VR (Vso) | 30 |
Peak Pulse Power - 10x1000 (W) | 400 |
Polarity | Unidirectional |
Ir@Vr(µA) | 1 |
- 400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01%
- Low profile package (SOD-123FL)
- AEC-Q101 qualified and PPAP capable
- Low incremental surge resistance
- Manufactured outside China and Taiwan
- Ideal for automated placement
- Excellent clamping capability
- Very fast response time
- Component in accordance to RoHS 2011/65/EU and WEEE 2002/96/EC
- Meets MSL level 1, per J-ED-020, LF maximum peak of 260 ºC
TPSMF4L30A-E Applications
- Integrated Circuits (ICs)
- MOSFETs
- Signal Lines of Sensor Units
