5.0SMDJ150CA-HR

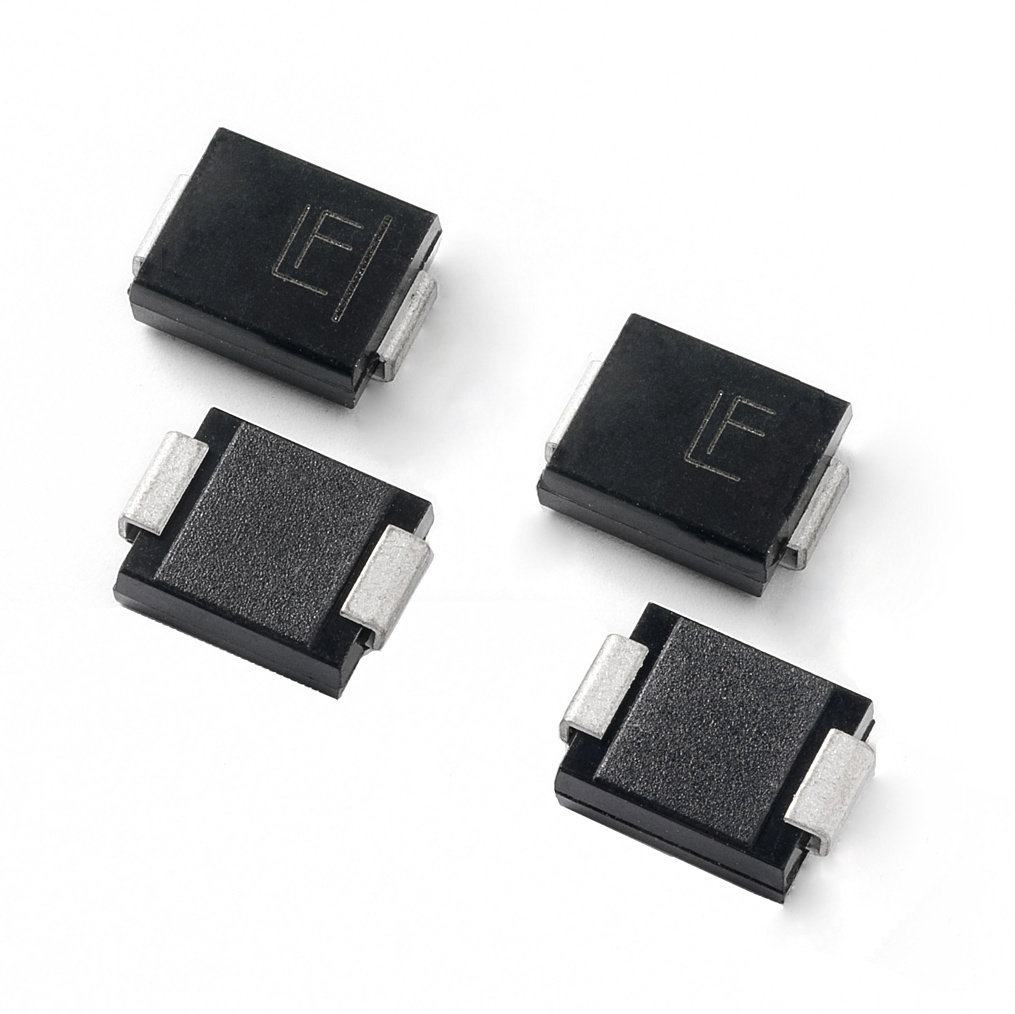

TVS 5KW 150V 5%BI DO-214AB TR7 RoHS | Series: 5.0SMDJ-HR
The 5.0SMDJ-HR High reliability series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
| Property | Value |
|---|---|
VR (Vstandoff) | 150 |
Watts (W) | 5000 |
I PP 10x1000µs (A) | 20.6 |
MIN VBR@IT (V) | 167 |
MAX VBR@IT (V) | 185 |
Vc (V) | 243 |
IT (mA) | 1 |
Operating Temperature Max (°C) | 150 |
Uni / Bi-Directional | Bidirectional |
Package | DO-214AB |
Peak Pulse Power - 10x1000 (W) | 5000 |
TYP VBR@IT (V) | 176 |
- 5000 W peak pulse power capability at 10/1000 μs waveform, repetition rate (duty cycles):0.01 %
- SMD low-profile surfacemount package minimizing PCB footprint
- Typical failure mode is short from over-specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c pass class 1/2
- IEC 61000-4-2 ESD 30 kV(Air), 30 kV (Contact)
- Built-in strain relief
- Glass passivated chip junction
- Fast response time: typically less than 1.0 ps from 0 V to BV min
- Low dynamic resistance
- VBR @ TJ = VBR@25 °C x (1+αTx (TJ - 25))(αT:Temperature Coefficient)
5.0SMDJ150CA-HR Applications
- I/O Interfaces
- VCC bus
- Other vulnerable circuits used in high-reliability applications
