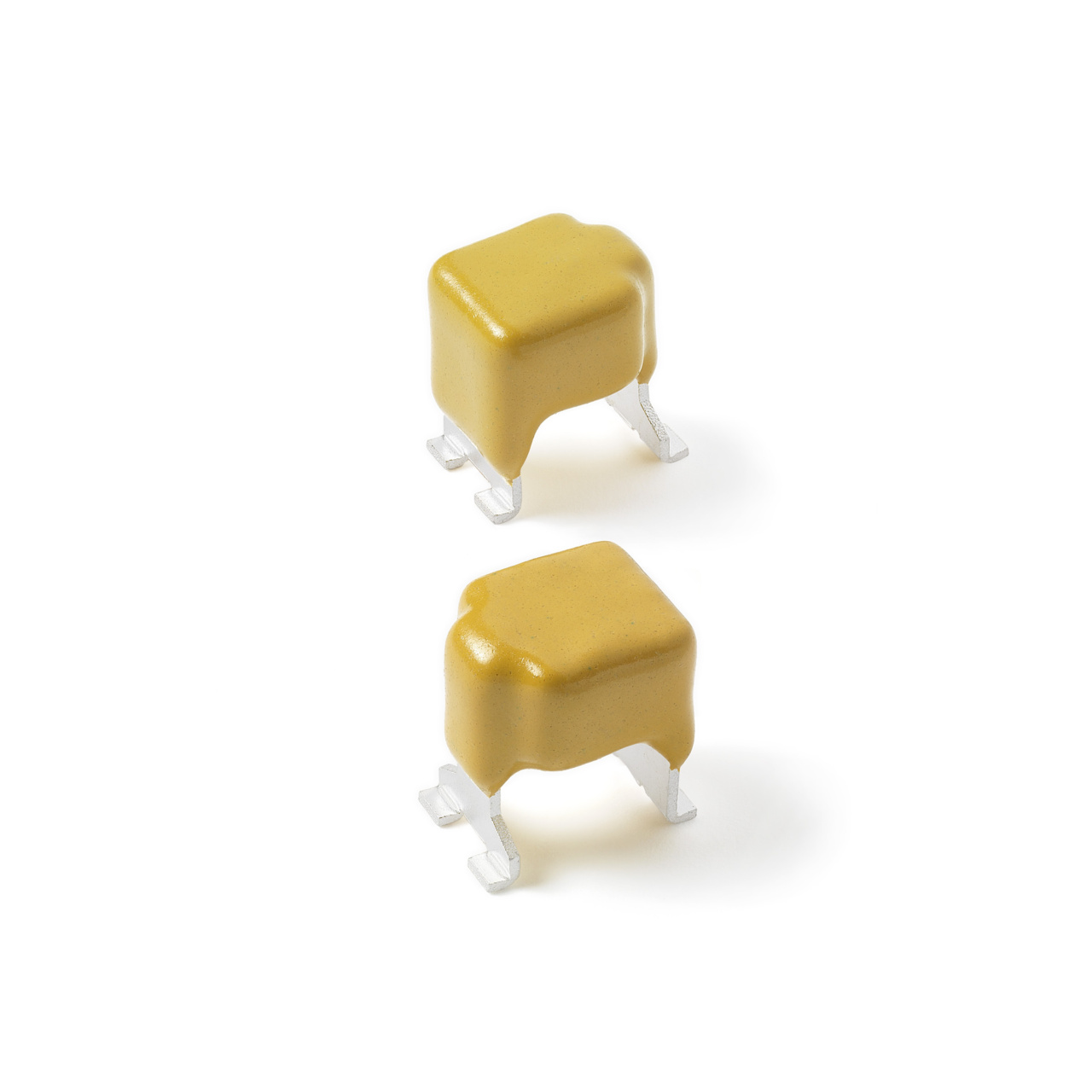

SMTAK3-058C
TVS SURF MT KA RATED - 3KA 58V BI | Series: SMTAK3
The SMTAK3 series of high current transient suppressors have been specially designed for use in D.C. line protection and any demanding applications. They offer superior clamping characteristics over standard S.A.D. technologies by virtue of the Littelfuse Foldbak technology. Therefore, any voltage rise due to increased current conduction is contained to a minimum, providing the best possible protection level.
| Property | Value |
|---|---|
VR (Vstandoff) | 58 |
MIN VBR@IT (V) | 64 |
MAX VBR@IT (V) | 70 |
Vc (V) | 110 |
IT (mA) | 10 |
Ir@Vr(µA) | 10 |
I PP 8x20µs (A) | 3000 |
Operating Temperature Max (°C) | 125 |
Polarity | Bipolar |
Package | SMTAK |
Stand Polar | Bipolar |
Tolerance % | 5 |
- Very low clamping voltage
- Sharp breakdown voltage
- Low slope resistance
- Bidirectional
- Foldback technology for superior clamping factor
- Symmetric in leads width for easier soldering during assembly
- Halogen free and RoHS compliant
- IEC-61000-4-2 ESD 15 kV (Air), 8 kV (Contact)
- ESD protection of data lines in accordance with IEC 61000-4-2
- EFT protection of data lines in accordance with IEC 61000-4-4
SMTAK3-058C Applications
- Designed for use in D.C. line protection and any demanding applications
SMTAK3-058C Resources
