SZ3KASMC11AT3G

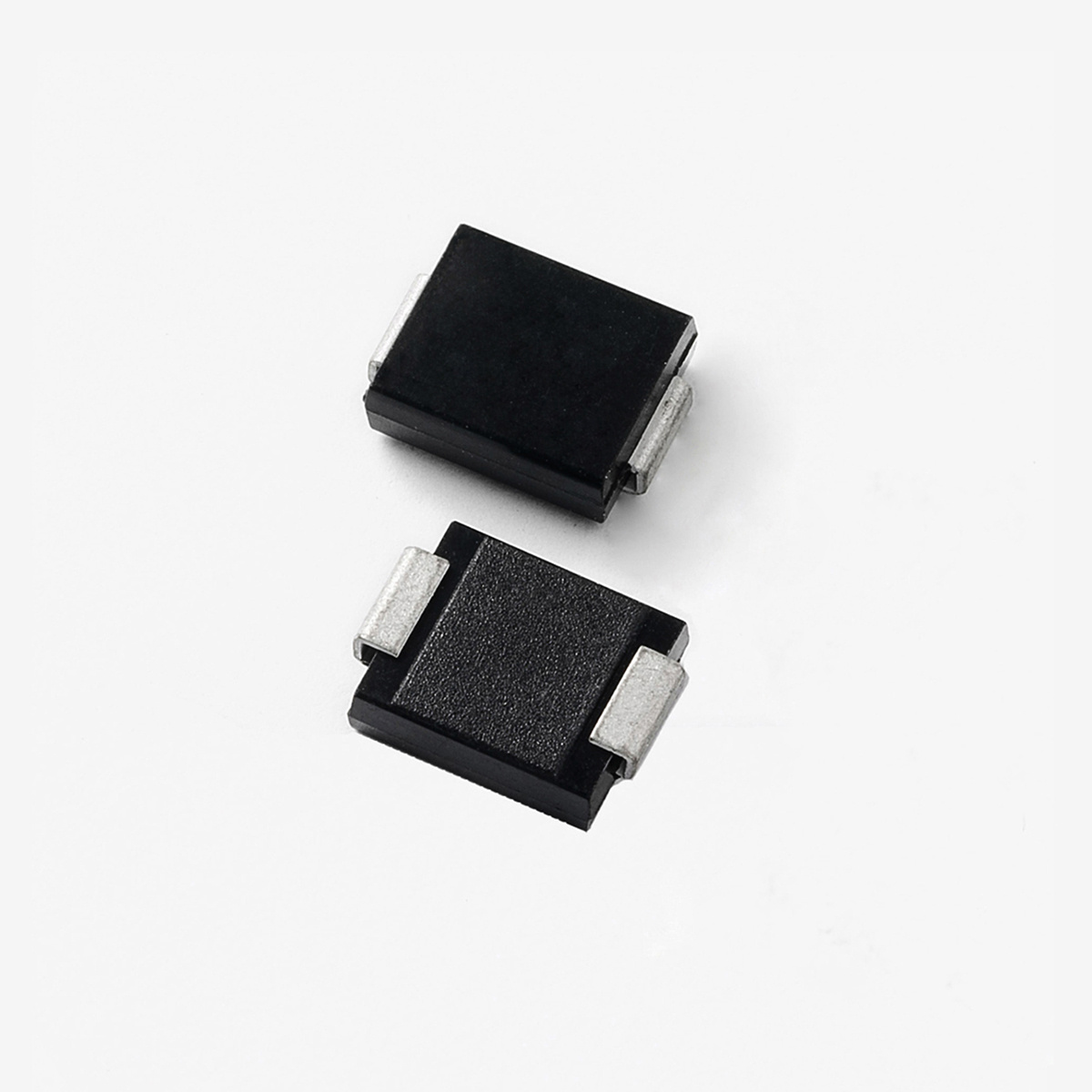

Zen TVS 3000W 11V Uni DO-214AB TR13 | Series: SZ3KASMC
The SZ3KASMC series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SZ3KASMC series is supplied in the Littelfuse exclusive, cost-effective, highly reliable DO-214AB package and it is ideal for use in automotive electronic applications.
| Property | Value |
|---|---|
VR (Vstandoff) | 11 |
I PP 10x1000µs (A) | 164.8 |
MIN VBR@IT (V) | 12.2 |
MAX VBR@IT (V) | 13.5 |
Vc (V) | 18.2 |
IT (mA) | 1 |
Ir@Vr(µA) | 5 |
Operating Temperature Max (°C) | 175 |
Package | DO-214AB |
Uni / Bi-Directional | Unidirectional |
Peak Pulse Power - 10x1000 (W) | 3000 |
Tolerance % | 5 |
- Automotive grade, AEC-Q101 qualified and PPAP capable
- Peak power − 3000 W @ 1 ms
- Working peak reverse voltage range − 5.0 V to 78 V for unidirectional
- Standard zener breakdown voltage range − 6.4 V to 95.8 V for uni-directional
- Compact design in DO-214AB package
- ESD protection of data lines in accordance with IEC 61000-4-2 30 kV (Air), 30 kV (Contact)
- ESD rating of class 3 (>16 KV) per human body model
- Zener transient overvoltage suppressors
- Excellent clamping capability
- VVBR@ TJ= VBR@25°C x (1+αT x (TJ - 25))(αT: Temperature coefficient, typical value is 0.1%)
SZ3KASMC11AT3G Applications
- TVS devices are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in automotive application.
