04980933.X

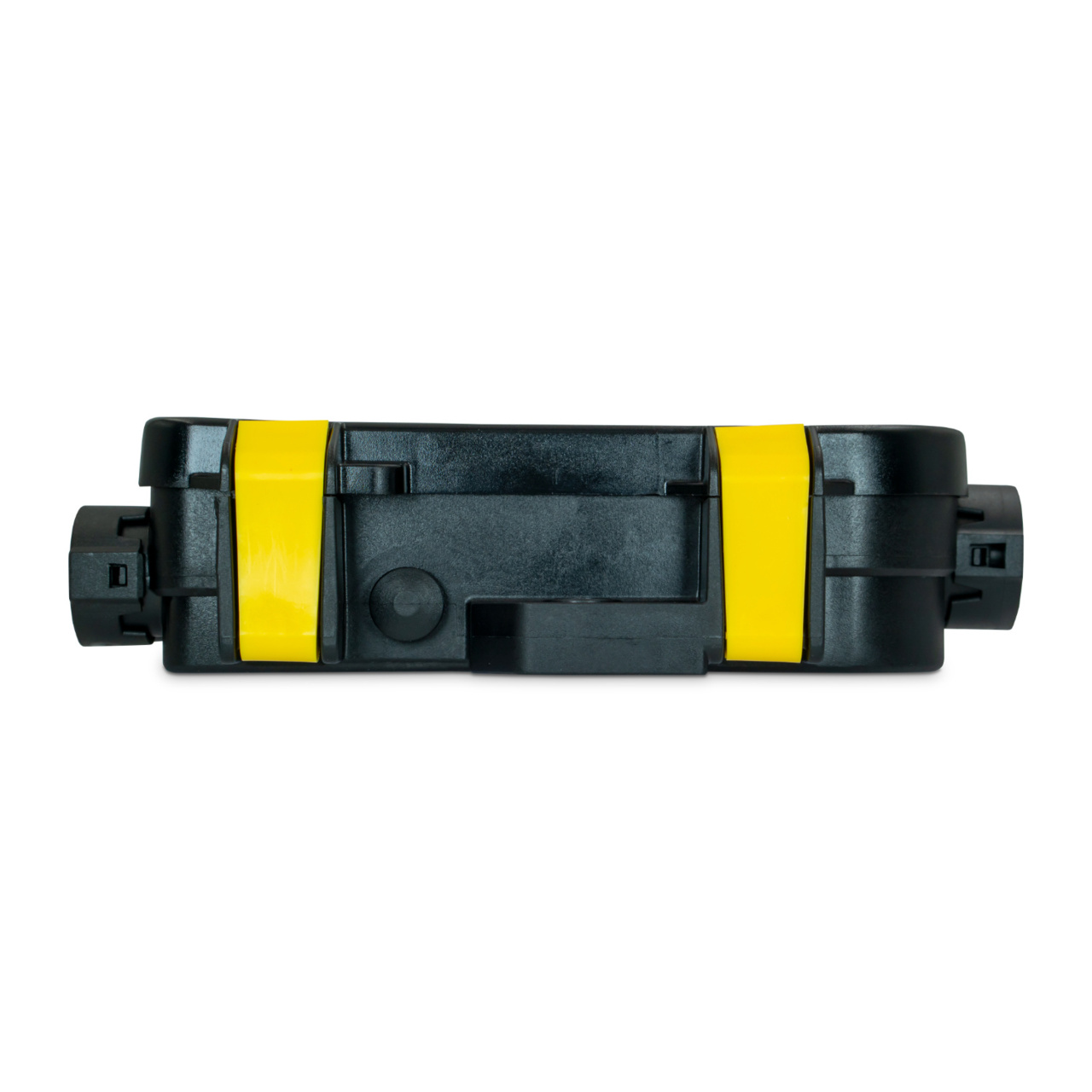

3 Way Sealed Midi Holder Loaded | Series: MDBThe MDB Series 58 V 200 A Waterproof MIDI® Fuse Power Distribution Box is an internally bussed fuse holder designed for the high current loads and harsh conditions typically seen in applications such as construction vehicles and agricultural equipment. Effectively acting as a power distribution module, this rugged fuse box (04980933.X) holds three MIDI® or BF1 fuses (sold separately) and includes caps and seals to meet your application requirements.

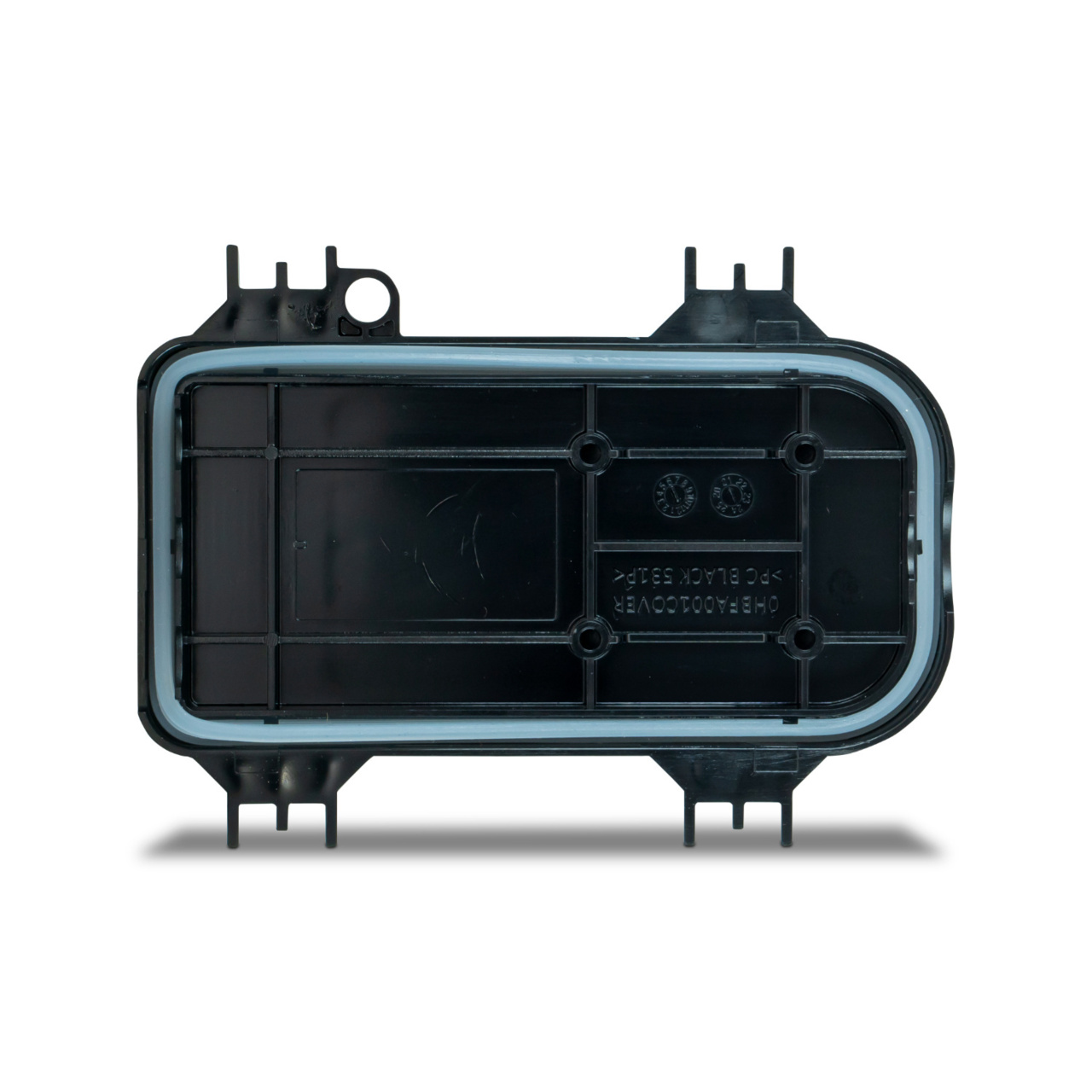

The sealed, waterproof fuse box carries IPX7 and IPX9K ratings, making it ideal for applications close to the battery or for mounting in exposed locations. To keep the sealed cover securely in place, the MDB Series fuse holder features AssureLatch™ yellow positive-sealing latches.
| Property | Value |
|---|---|
Fuse Type | MIDI |
Input Terminals | M5 Stud |
Output Terminals | M5 Stud |
Current Rating (Continuous) in Amps | 200 |
Ingress Protection | IP67, IP69K |
Number of Cavities | 3 |
Dimensions | 5.147 H x 1.335 W x 3.321 L in. (38 x 68 x 131 mm) |
Temperature Maximum (°C) | 85 |
Temperature Minimum (°C) | -40 |
Mounting Method | Bolt Down |
Housing | UL94-V2 |
Recommended Torque | Mounting: 6-8Nm – Fuse: 5Nm |
- 3-pole fuse holder configuration accepts MIDI® fuses (sold separately)
- Includes a 4 AWG input seal and a 4 AWG input cap
- Comes with two 8-10 AWG output seals, three 6-8 AWG output seals, one cavity plug, and one output cap
