FHMC0002

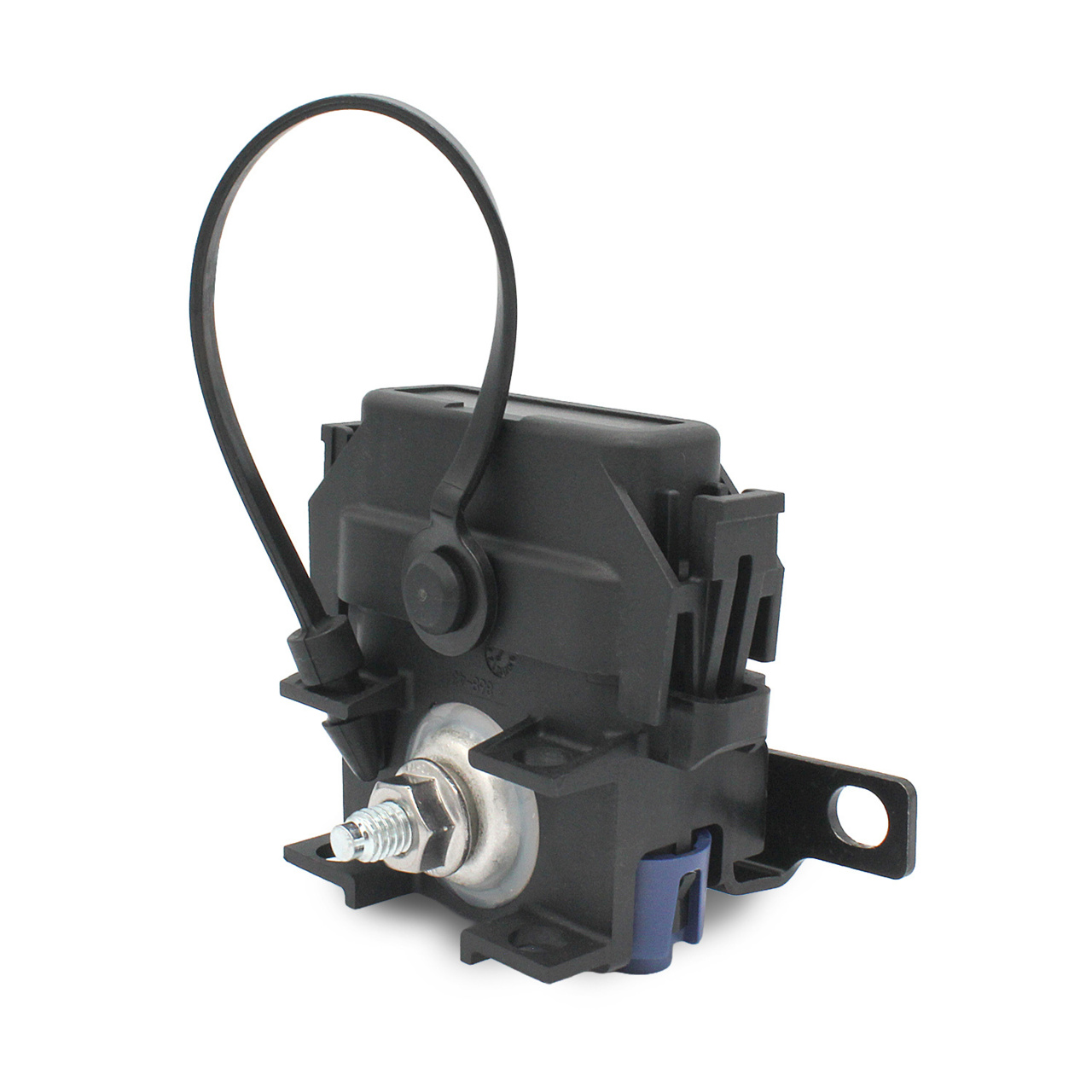

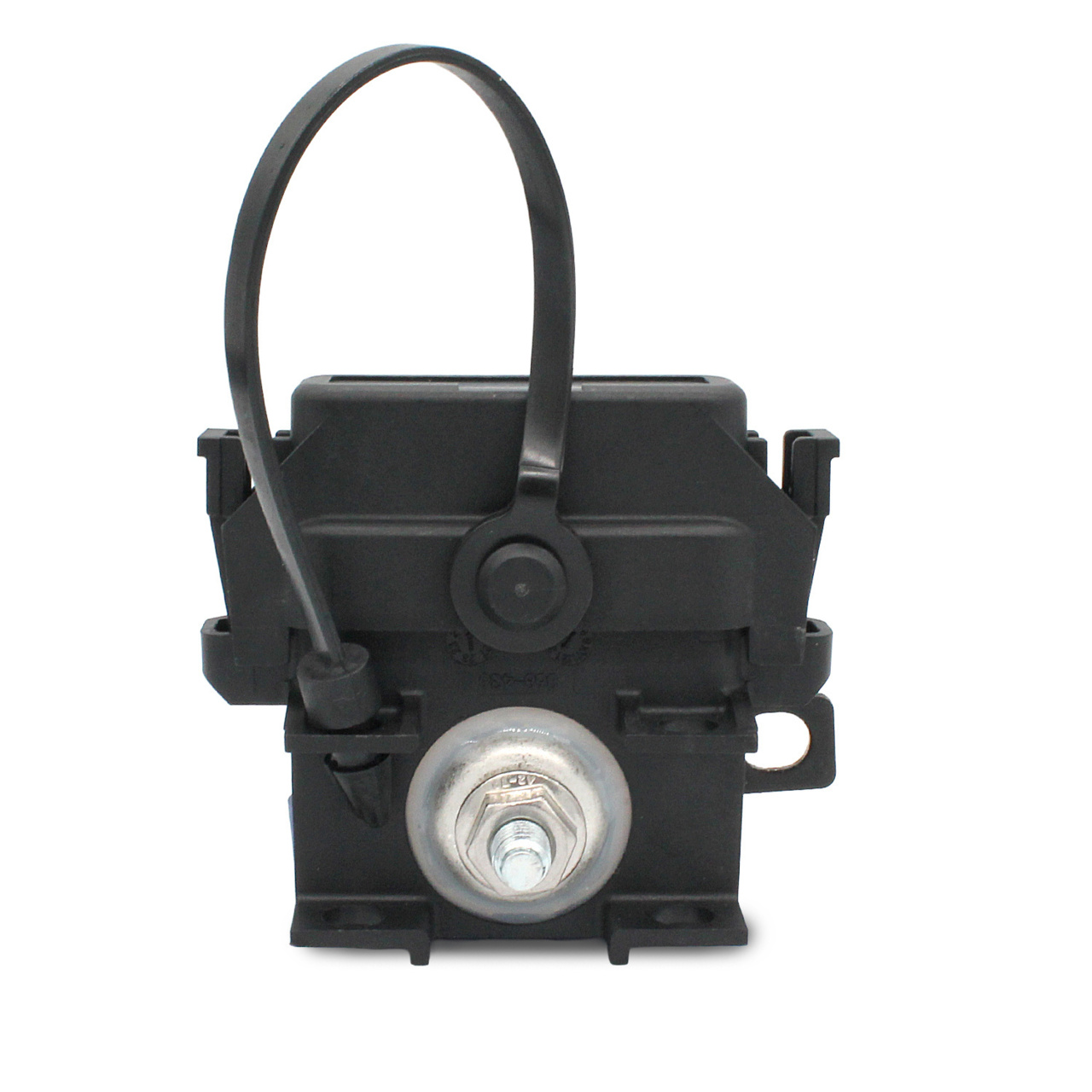

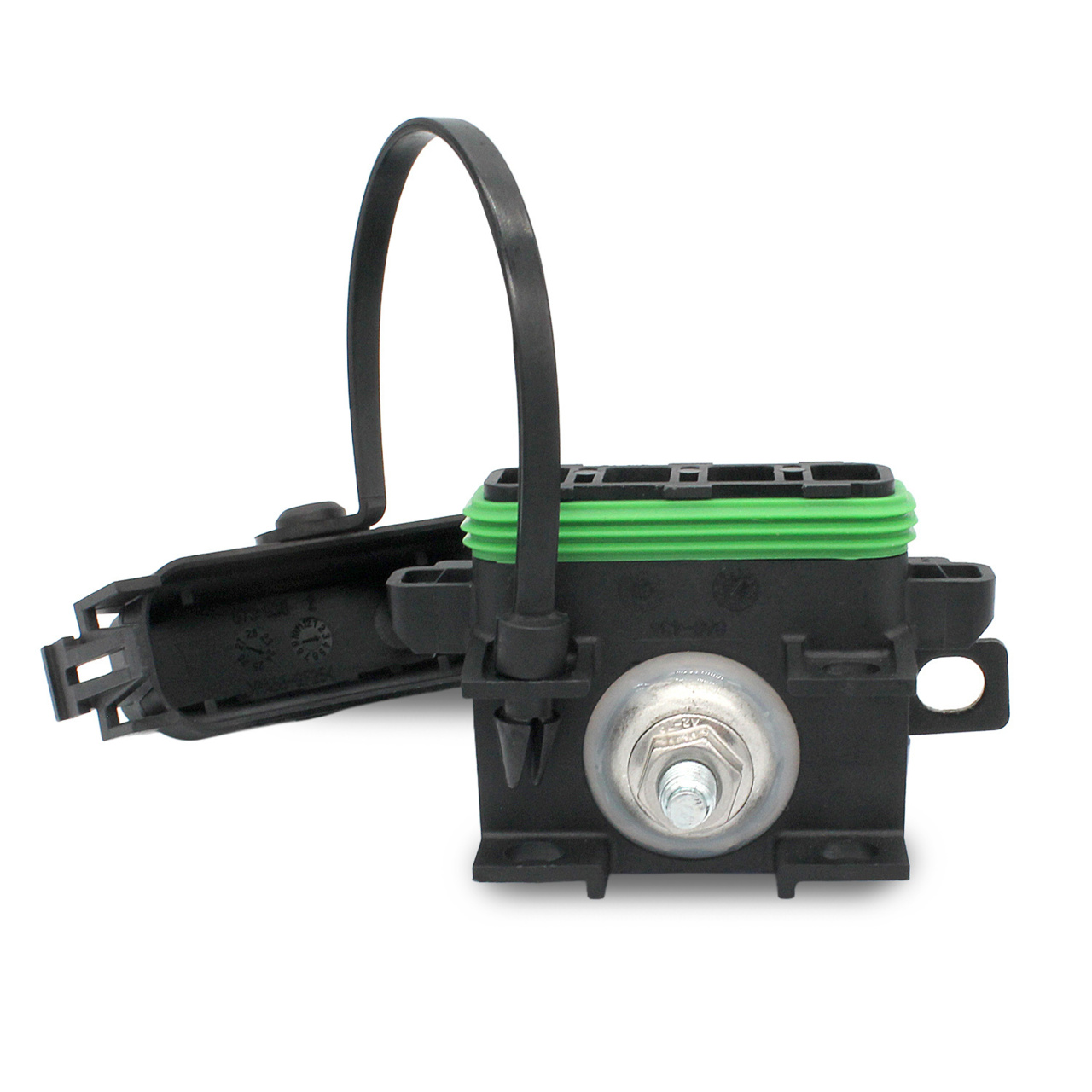

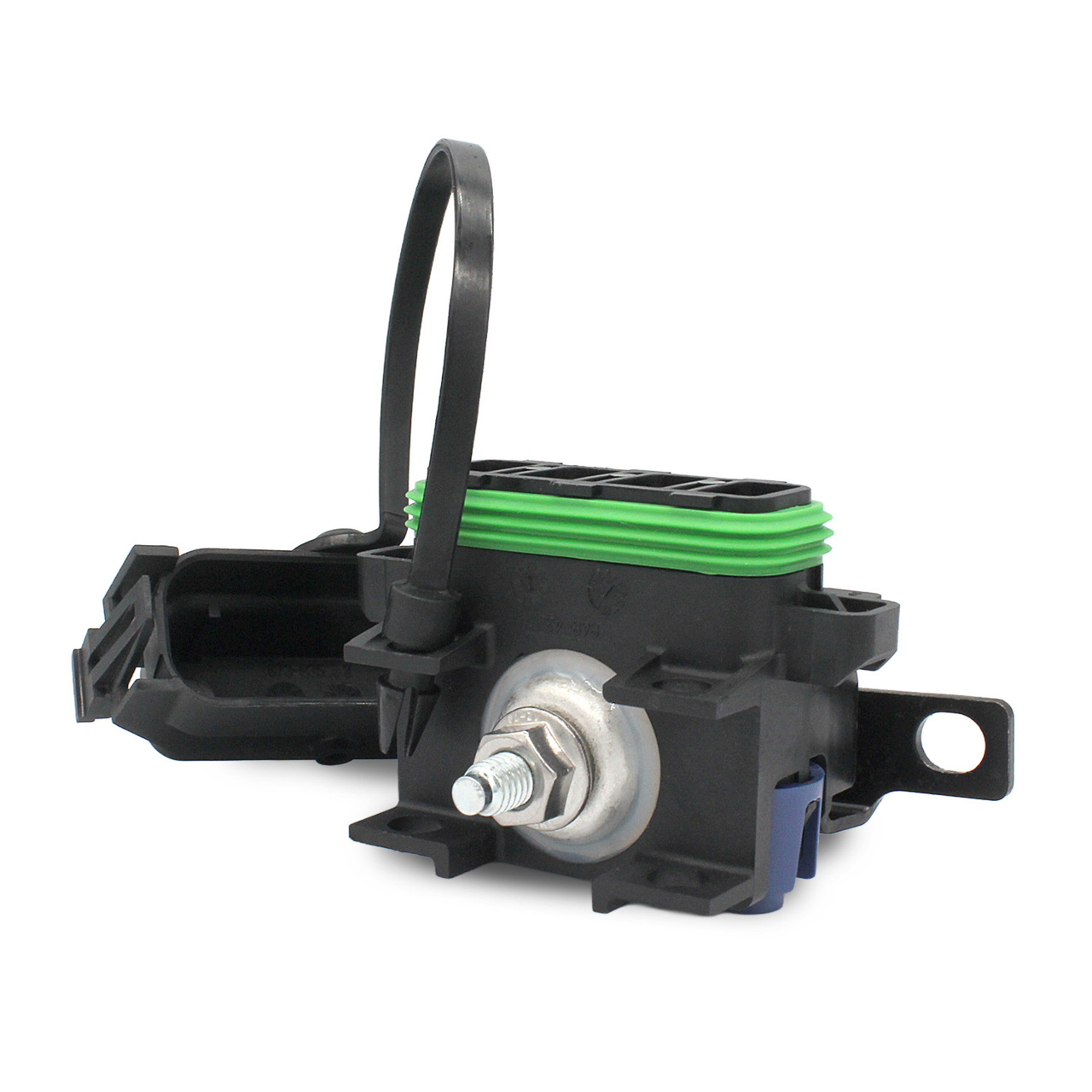

4-WAY MCASE HOLDER | Series: MCASE 4-Way
The MCASE 32V 160A Max 4-Way Fuse Holder (FHMC0002) is a compact, high-performance solution designed to support up to four MCASE+ slotted cartridge fuses. Featuring a bussed power input and individually wired fuse outputs, this holder enables efficient circuit protection in space constrained applications. Engineered for versatility, the fuse holder supports side-panel mounting using an accessory bracket (included).
With a glass-reinforced nylon, UL 94 V-0 rated housing and cover and silicone seal, it delivers reliable performance in harsh environments. Featuring IP67 and IP6K9K ratings, it offers ingress protection against dust, temporary submersion in water, and high-pressure water spray. Compatible with wire sizes from 1 to 6 mm², the MCASE 4-Way Fuse Holder is ideal for automotive and marine applications demanding dependable, space-efficient fuse protection.
| Property | Value |
|---|---|
Current Rating Max per Circuit in Amps | 40 |
Current Rating Max (A) | 160 |
Fuse Type | MCASE+ |
Ingress Protection | IP67 |
Mounting Method | Panel Mount |
Hardware | M6, Serrated |
Temperature Maximum (°C) | 105 |
Temperature Minimum (°C) | -40 |
Current Rating (Continuous) in Amps | 125 |
Current Rating Max Terminal in Amps | 40 |
Humidity | ISO16750-4 (2010), 5.6.2.3 |
Flammability Rating | UL 94 V-0 |
Input Terminals | Stud |
Mounting Type | M6 with bracket |
Output Terminals | TE AMP Male Contact |
Recommended Torque | 5-7Nm |
Agency Approval - Shock | ISO16750-3 (2012), 4.2 |
Agency Approval - Vibration | ISO16750-3 (2012), 4.1.2.4 |
Voltage Rating - Continuous | 32 |
Wire Size
| 1-6mm² |
Number of Cavities | 4 |
- Includes side-panel-mounting accessory bracket (869-033) and M6 nut
