IXD704INTR
DUAL HIGH SPEED INVERTING GATE DRVR 12V | Series: Low-Side Drivers
Dual 4A Low Side Si/SiC MOSFET and IGBT Driver, inverting with 12V UVLO, SOIC(N)-8 package
| Property | Value |
|---|---|
Peak Drive Current | 4 |
Output Resistance Source / Sink (Ω) | 1.3 / 1.1 |
Logic Configurations | 2.4 V / 0.8 V |
Enable Function | N/A |
Under Voltage Lockout Maximum Threshold (V) | 14 |

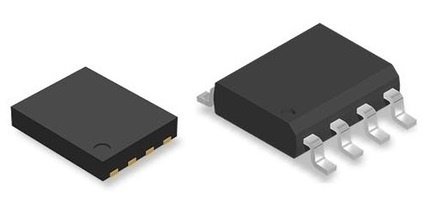

IC Package Type | SOIC(N)-8 |
Deadtime | N/A |
Nominal Short Circuit Current (µA) | 4 |
Propagation Delay tON | 65 |
Propagation Delay tOFF | 65 |
Fall Time tf | 14 |
Inputs | INA, INB |
Typical Source Peak Drive Current | 4 |
Input Control Current (mA) | 120 |
Typical Sink Peak Drive Current | 4 |
Rise Time tr | 16 |
Output Type | Inverted |
- Dual 4 APK sink/source output current (or 8 APK if paralleled)
- +14 V to +35 V operating voltage range
- TTL/CMOS compatible logic inputs
- UVLO, independent Enable inputs
- Latch-up protected to 4 APK
- Can drive a broad range of MOSFETs
- Operates from wide supply voltage levels
- Can directly be controlled from most microcontrollers
- Fail-safe design and flexible inputs
- Latch-up protection prevents excessive over-current damaging the driver & peripheral components
IXD704INTR Applications
- Switch-Mode Power Supplies
- DC-DC Converters
- Motor Controllers
- Power Inverters
- Class-D Switching Amplifier
- Pulse Transformer Driver
