MMJX1H40N150

Name: Disc IGBT SMPD Pkg-Standard SMPD-B
Brand: Littelfuse

Product Status| Activei

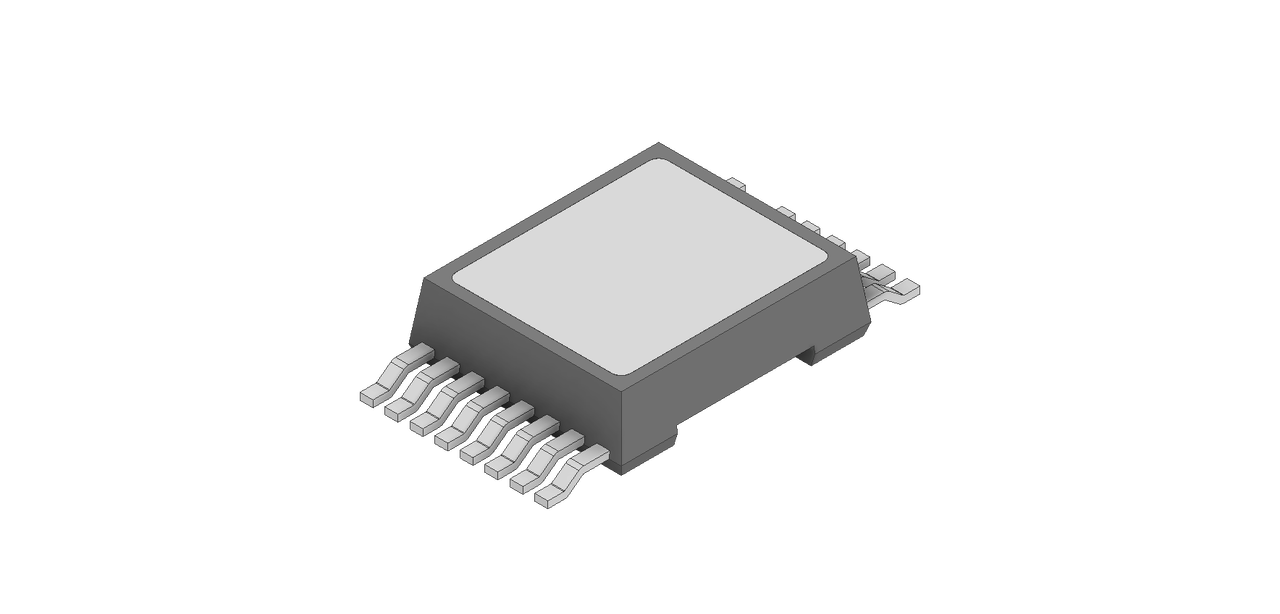

littelfuse-power-semiconductor_MiniSMPD_Top

MMJX1H40N150

Disc IGBT SMPD Pkg-Standard SMPD-B | Series: MOS Gated Thyristor

MOS-Gated Thyristors are designed for high-power pulse and capacitive discharge applications, switched on by a voltage applied at the gate terminal (MOS structure). Capable of carrying current up to 32kA for a period of 1 microsecond

Property	Value
VDM (V)	1500
ITSM 1µs TC = 25°C (kA)	15.5
ITSM 10µs TC = 25°C (kA)	6.4
VT (V)	6
r_T (mΩ)	1.2
Qg(on) (nC)	99
tri TC = 25°C (ns)	100
VGK(th) (V)	5
Co-pack Diode	No

MMJX1H40N150 Resources

Link has been copied to clipboard

Showing 1 to 1 of 1 Total Results

Part Number	Part Description	RoHS	Pb-Free	RoHS (2015/863/EU) Certificate	REACH (SVHCs) Declaration	REACH (SVHCs)	Halogen Free	IPC-Material Declaration
MMJX1H40N150	Disc IGBT SMPD Pkg-Standard SMPD-B								View More

If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
