IXTS01N90P-223

Product Status| Obsoletei

IXTS01N90P-223

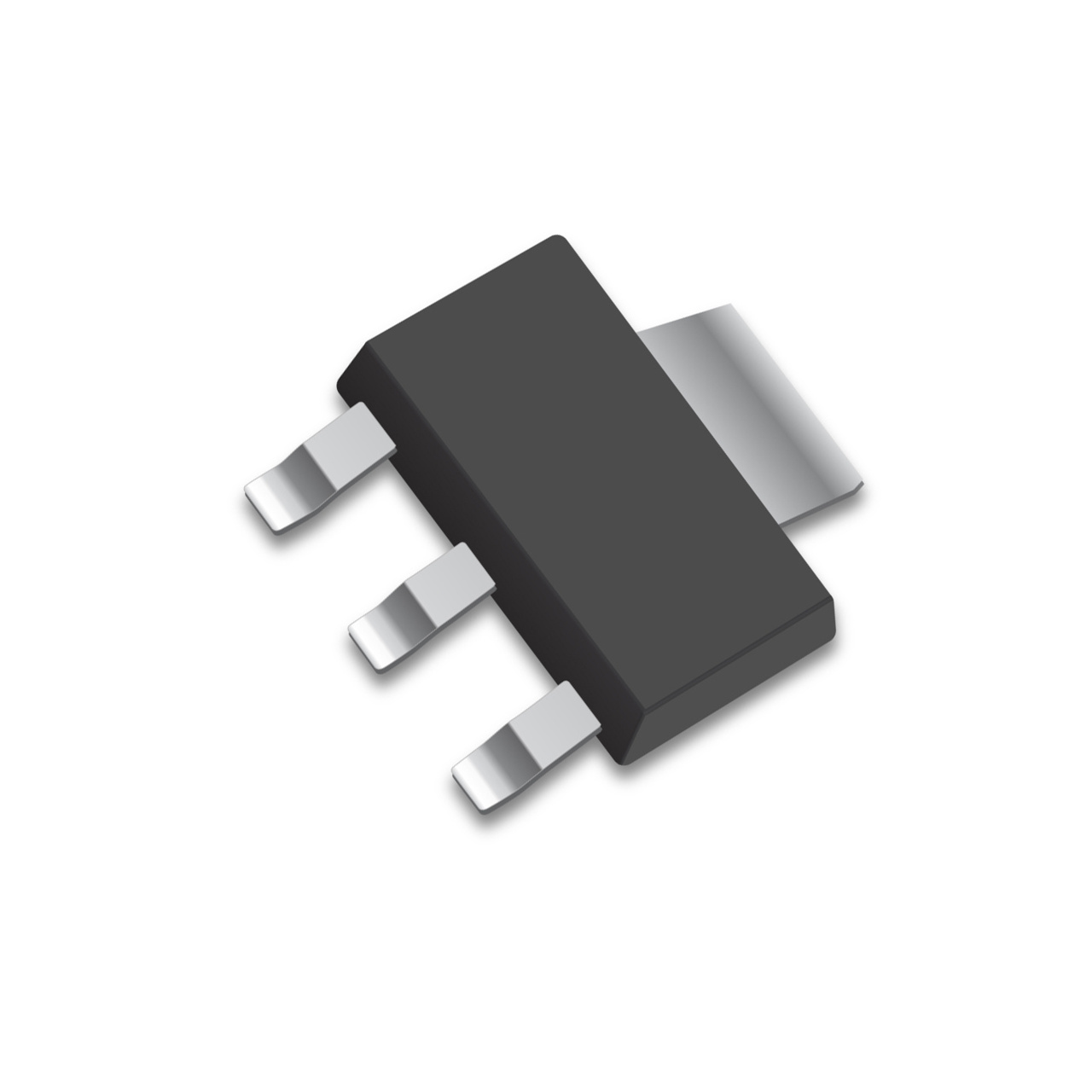

Disc Mosfet N-CH Std-Polar SOT-223 | Series: Polar
info

Polar™ Standard Power MOSFETs are tailored to provide designers with a device solution that offers the best compromise between performance and cost. These devices incorporate the Polar technology platform to achieve low on-state resistances (Rdson). Polar Standard MOSFETs feature low gate charge Qg values, resulting in more efficient switching at all frequencies. This gives the designer the option to operate at higher frequencies, which enables the use of smaller passive components in a variety of load switching designs. The avalanche capabilities of these devices add an additional safeguard against over-voltage transients.

Advantages:

  • Easy to mount
  • Space savings
  • High power density
PropertyValue
VDSS (V)
900
RDS(ON),max @ 25 °C (Ω)
75
ID, cont @ 25 °C (A)
0.1
Gate Charge (nC)
2.2
RthJC (K/W)
5
Configuration
Single
Package Type
SOT-223
CISS (pF)
82
trr,typ (ns)
285
PD (W)
25
  • International Standard Packages
  • Dynamic dv/dt rating
  • Low RDS(on) and Qg
  • Avalanche Rated
  • Low Package Inductance

IXTS01N90P-223 Applications

Highlights Section

  • Dc-dc converters
  • Battery chargers
  • Switched-mode and resonant-mode power supplies
  • Lamp ballasts
  • Ac and dc Motor Drives
  • Robotics and Servo Controls
  • Laser drivers
