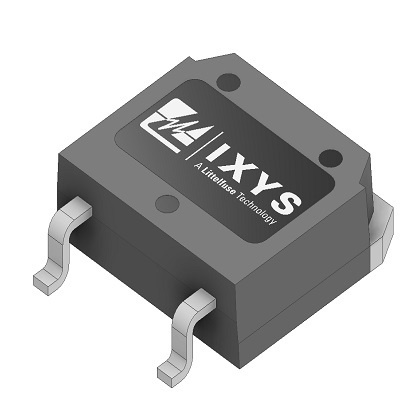

IXFT78N60X3HV
Discrete MOSFET 78A 600V X3 TO268 | Series: X3 Class
The 600V X3-Class Ultra Junction MOSFETs are available in versions featuring 36A-98A nominal current rating. They are available in various TO-247, TO-263, TO-220 and TO-268HV packages.
These Power MOSFETs feature significantly reduced channel resistance RDS(on) and gate charge Qg. They feature the lowest figures of merit (FOM) RDS(on)Qg and RDS(on)RthJC. These benefits enable designers to achieve higher efficiency using simplified thermal design. This HiPerFET™ series of power MOSFETs feature body diodes which offer low reverse recovery charge (QRM) and short reverse recovery time (trr).
| Property | Value |
|---|---|
Current Rating (A) | 78 |
VDSS (V) | 650 |
RDS(ON),max @ 25 °C (Ω) | 0.038 |
ID, cont @ 25 °C (A) | 78 |
Gate Charge (nC) | 70 |
RthJC (K/W) | 0.16 |
Package Type | TO-268HV |
CISS (pF) | 4700 |
trr,typ (ns) | 205 |
PD (W) | 780 |
TJ Max (°C) | 150 |
CRSS (pF) | 36 |
- Low static losses
- Well-suited for high frequency applications
- Simplified thermal design
- High ruggedness against overvoltage
- Low gate drive power demand
IXFT78N60X3HV Applications
- On-state resistance 30mΩ ≤ RDS(ON) ≤ 90mΩ
- Reverse recovery time 163ns ≤ trr ≤ 220ns
- Thermal resistance 0.13K/W ≤ RthJC ≤ 0.28K/W
- Avalanche rating 750mJ ≤ EAS ≤ 2.8J
- Gate charge 29nC ≤ Qg ≤ 90nC
