IXSG110N65L2K

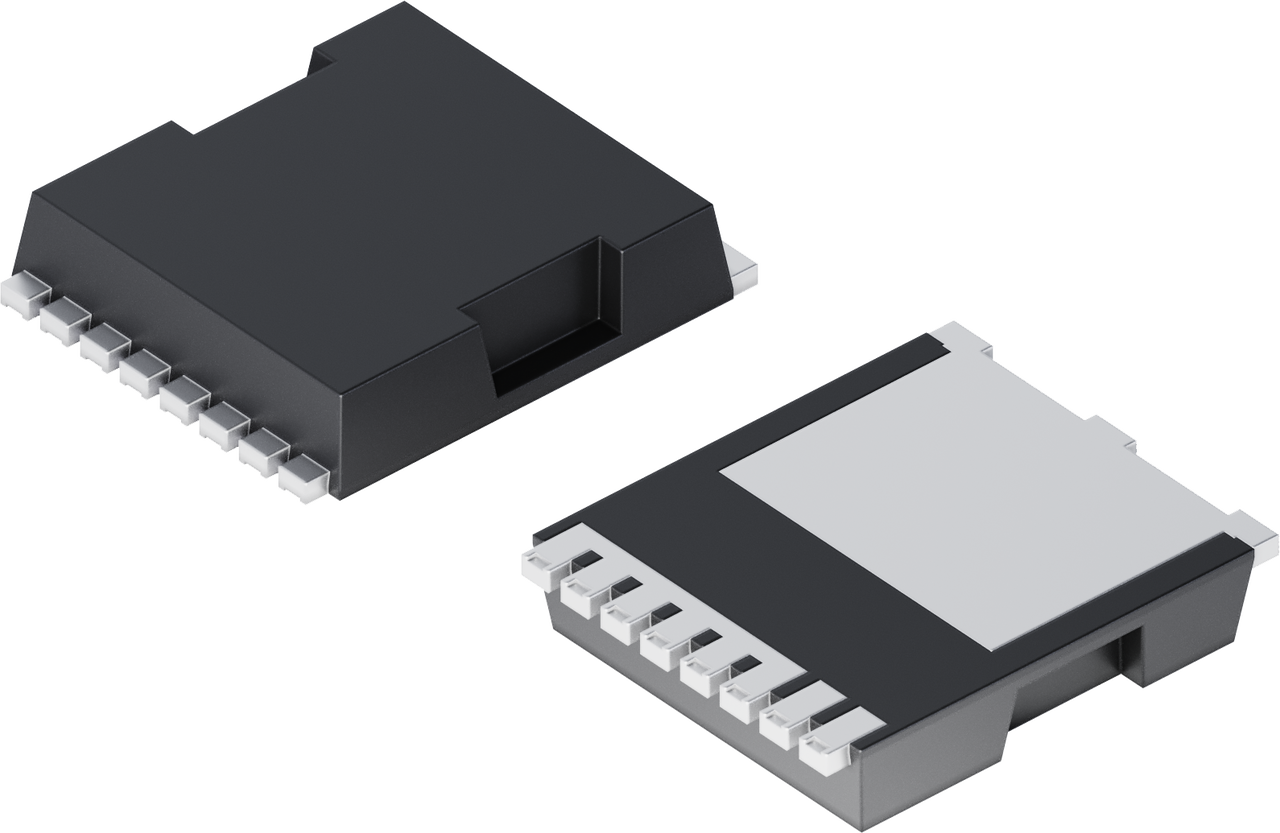

SiC MOSFET in TOLL | Series: SIC MOSFETs
| Property | Value |
|---|---|
Status | Active |
Configuration | Single |
VDSS (V) | 650 |
RDS(ON),max @ 25 °C (Ω) | 25 |
ID, cont @ 25 °C (A) | 111 |
RthJC (K/W) | 0.25 |
TJ Max (°C) | 175 |
- 650 V blocking voltage with low RDS(on) = 25 mΩ
- Ultra-fast intrinsic body diode with trr = 44 ns
- Low input capacitance of Ciss = 3090 pF
- Kelvin source connection
- High current carrying capability
- Low conduction losses, improving system efficiency
- Suitable for hard-switching
- Supports high-speed switching
- Reduced gate drive loop inductance and improved switching performance
- Reduced number of components in parallel, simplified layout
IXSG110N65L2K Applications
- DC/DC converters
- Switched-mode power supplies (SMPS)
- EV charging infrastructures
- Motor drives
- Industrial power supplies
