LSIC1MO120G0120
SiC MOSFET 1200V 120mO TO247-4L | Series: SIC MOSFETs

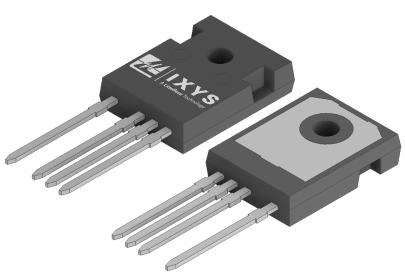

Littelfuse SiC MOSFETs are available in 14A, 18A, 25A, 50A and 70A nominal current rating. They are available in TO-247-4L package with a Kelvin source connection. Not only does the pin arrangement simplify the PCB routing, but the Kelvin source connection also reduces the stray inductance in the gate drive circuit. This in turn leads to improvement in efficiency, EMI behavior, and switching performance.
The MOSFETs exhibit superior gate oxide reliability and are optimized for switching performance.
| Property | Value |
|---|---|
Status | Not for New Designs |
VDSS (V) | 1200 |
RDS(ON),max @ 25 °C (Ω) | 0.12 |
ID, cont @ 25 °C (A) | 18 |
RthJC (K/W) | 0.96 |
TJ Max (°C) | 175 |
- Positive temperature coefficient
- 175ºC maximum operating junction temperature
- Fast and low losses switching, MOSFETs optimized for high frequency switching
- SiC diodes with nearly zero reverse recovery current
- Dedicated Kelvin connection to source
- Low RthJC
LSIC1MO120G0120 Applications
- Boost diodes for power factor correction or dc–dc conversion
- Switch-mode power supplies
- Uninterruptible power supplies
- Solar inverters
- EV charging stations
