IXCY10M45S
DiscMosfet N-CH Std-HiVoltage TO-252D | Series: S Class
The 450V S-Class Switchable Current Regulators are available in 2-100mA nominal current rating. They are available in TO-252 and TO-220 packages. These regulators feature 40W of continuous power dissipation. Their wide dynamic current range of 9-900kΩ i makes them ideal candidate for resistor programmable current source.
| Property | Value |
|---|---|
Status | Active |
VDSS (V) | 450 |
ID, cont @ 25 °C (A) | -0.3 |
RthJC (K/W) | 3.1 |
Configuration | Single |

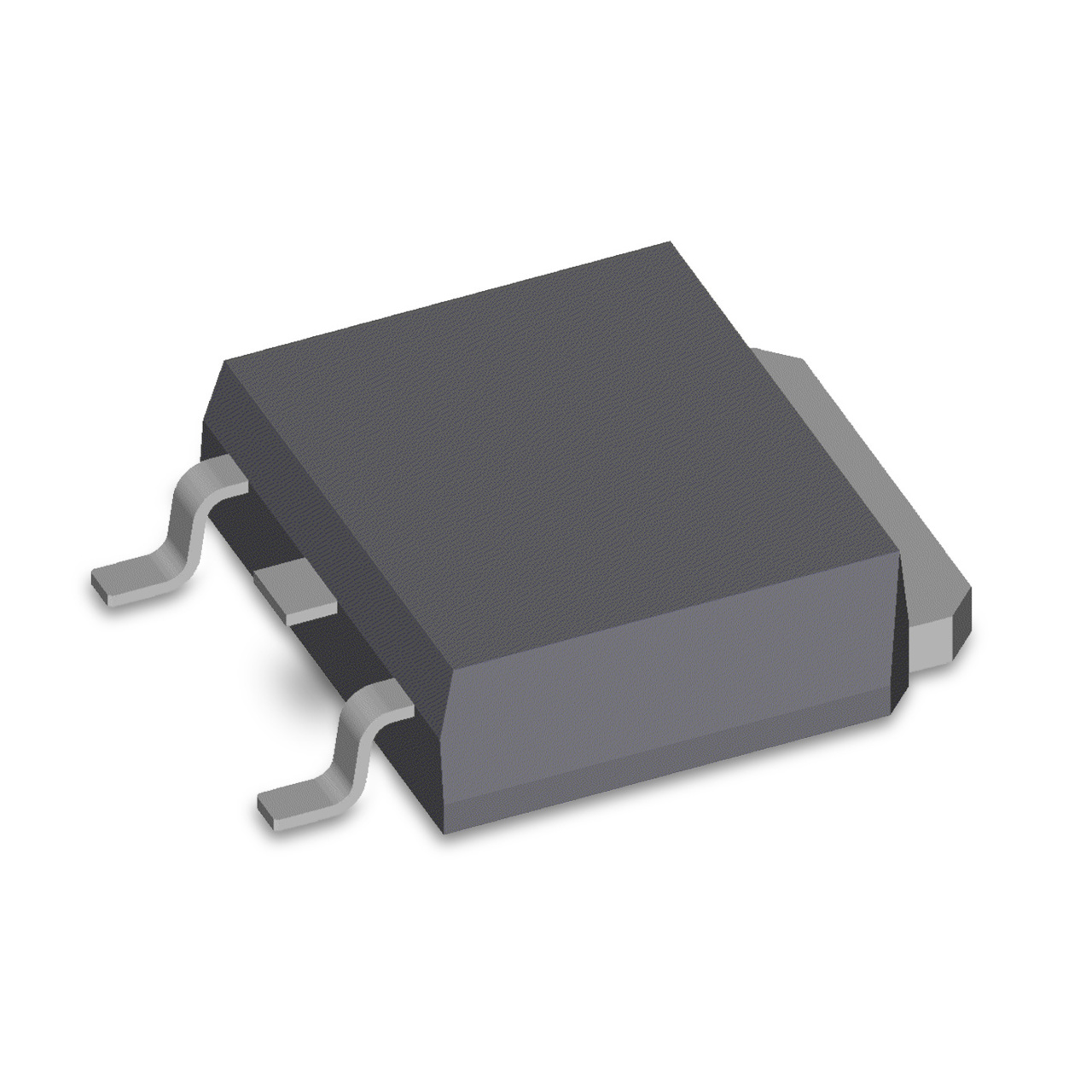

Package Type | TO-252 |
PD (W) | 40 |
- Minimum of 900 V breakdown
- 40 W continuous dissipation
- International standard packages JEDEC TO-220 and TO-252
- On/Off switchable current source
IXCY10M45S Applications
- Startup circuits for SMPS
- Highly stable voltage sources
- Surge limiters and voltage protection
- Instantaneously reacting resettable fuses
- Soft start-up circuits
