DSEC120-12AK

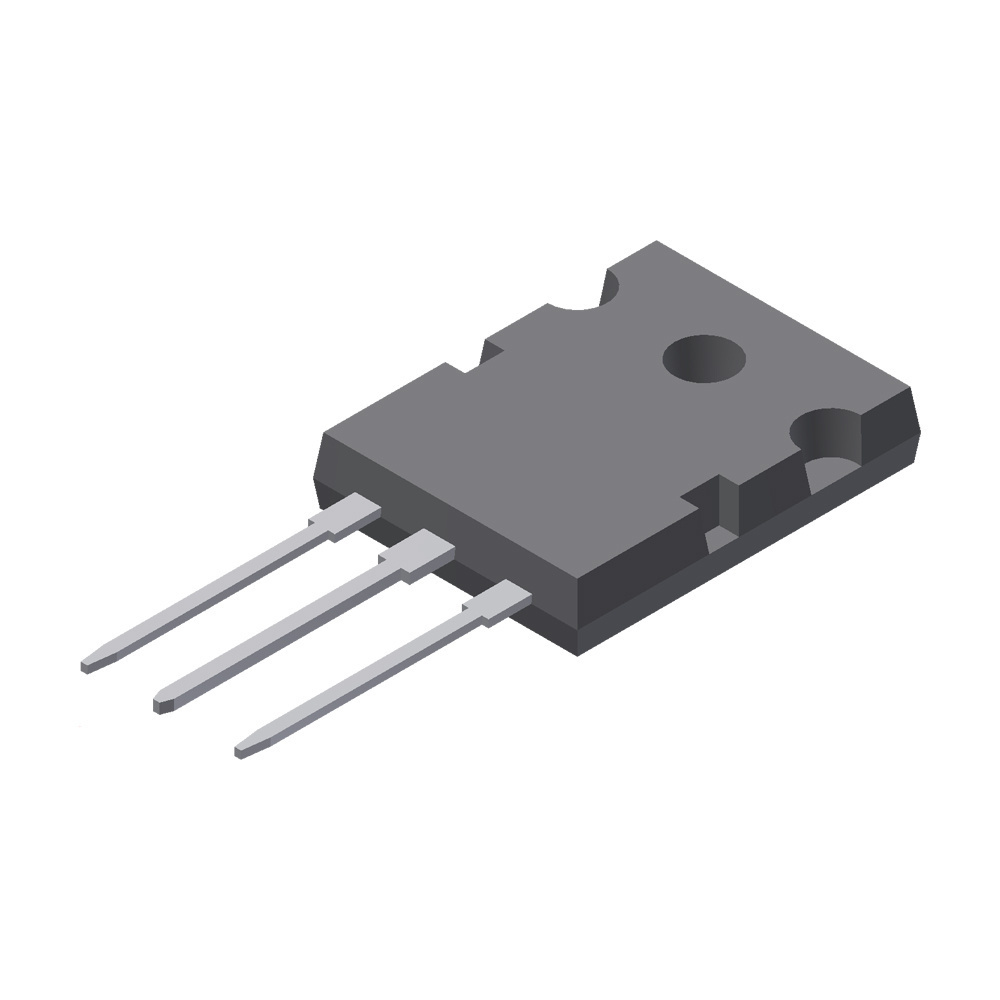

Power Diode Discretes-FRED TO-264(3) | Series: HiperFRED Low VfThe HiperFRED Low Vf series offers improved forward voltage characteristics and breakdown voltages up to 1200V.
| Property | Value |
|---|---|
VRRM [Rect] (V) | 1200 |
IFAV [Diode] (A) | 60 |
TC (°C) | 115 |
IFSM (A) | 500 |
TVJM (°C) | 175 |
RthJC (K/W) | 0.45 |
RthCH (K/W) | 0.15 |
trr (ns) | 80 |
IRM (A) | 13 |
di/dt (A/µs) | 200 |
Package Type | TO-264 |
DSEC120-12AK Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| DSEC120-12AK | Power Diode Discretes-FRED TO-264(3) | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
