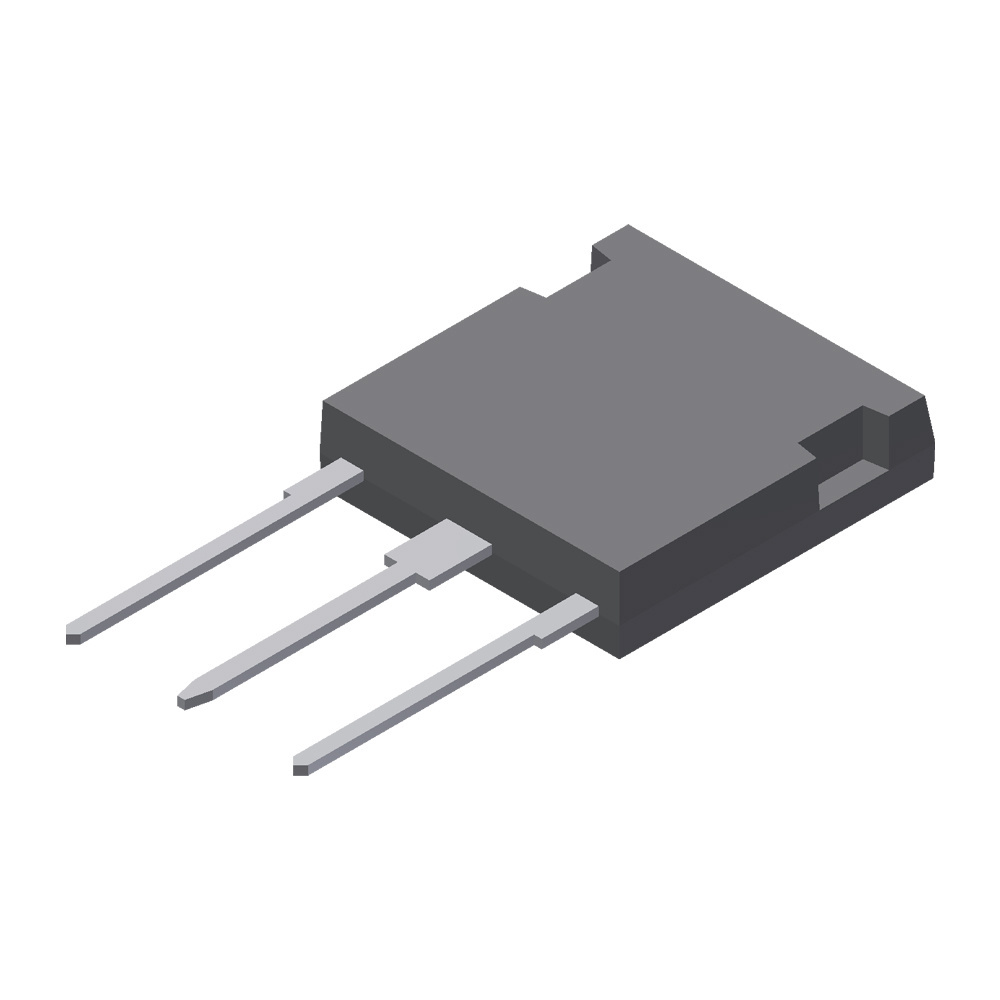

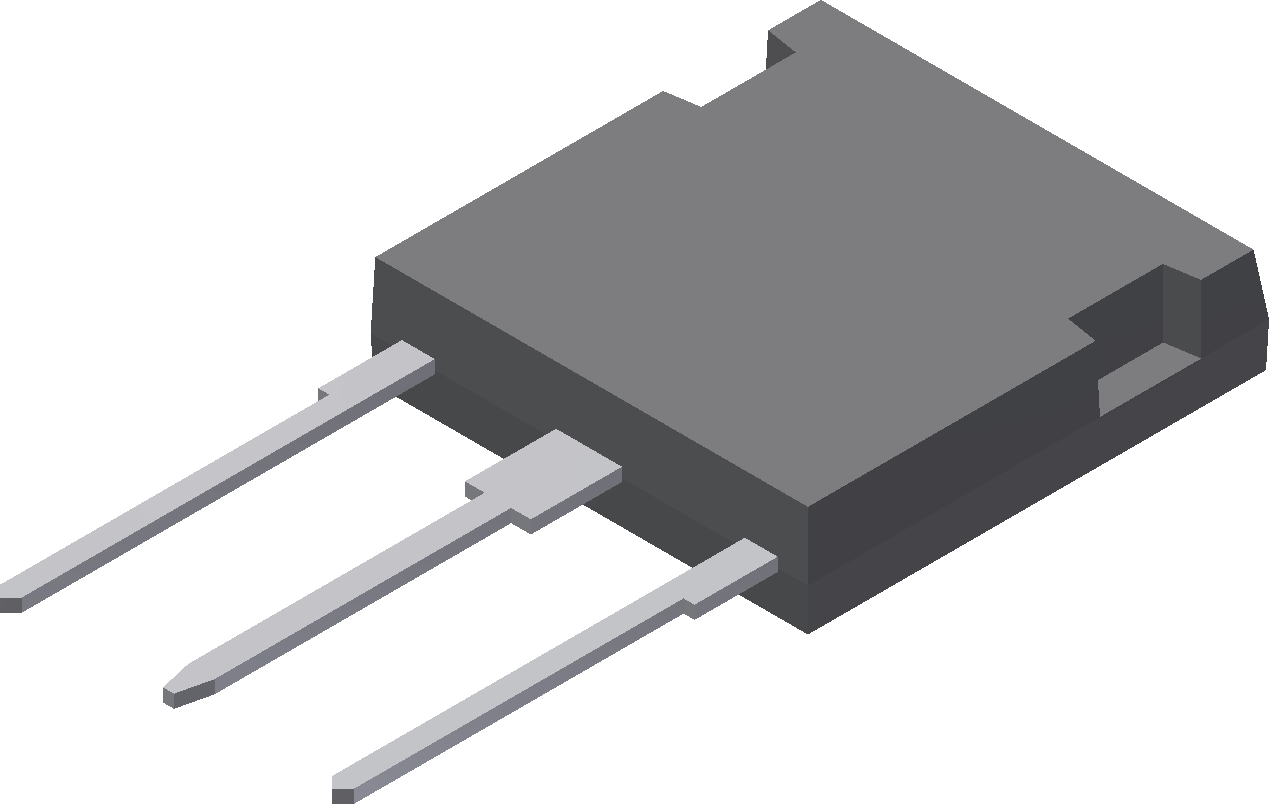

DSEE55-24N1F
Power Diode Discretes-FRED i4-Pac | Series: HiperFRED Low VfThe HiperFRED Low Vf series offers improved forward voltage characteristics and breakdown voltages up to 1200V.
| Property | Value |
|---|---|
VRRM [Rect] (V) | 1200 |
IFAV [Diode] (A) | 60 |
TC (°C) | 110 |
IFSM (A) | 800 |
TVJM (°C) | 175 |
RthJC (K/W) | 0.6 |
RthCH (K/W) | 0.2 |
trr (ns) | 85 |
IRM (A) | 13 |
di/dt (A/µs) | 200 |
Package Type | i4-Pac (3sym) |
DSEE55-24N1F Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| DSEE55-24N1F | Power Diode Discretes-FRED i4-Pac | View More |
