DUR6030WT
300V 60A Ultrafast Rectifier DUR series | Series: Ultrafast Diode
Littelfuse DUR6030WT series Ultrafast Recovery Rectifier is designed to meet the general requirements of commercial applications by providing low Trr, high-temperature, low-leakage and low forward voltage drop products. It is suitable for output rectifier, free-wheeling or boost diode in high-frequency power switching application such as switch mode power supply and DC-DC converters.
| Property | Value |
|---|---|
Peak Forward Surge Current IFSM (A) | 400 |
Vf (V) | 1.3 |
Reverse Recovery Time | 45 |
Forward Continuous Current IF (A) | 60 |
Configuration | Common Cathode |
IF(AV) | 2x30 |
Peak Inverse Voltage VRWM (V) | 300 |
- Ultra-fast switching
- Low reverse leakage current
- High surge current capability
- Low forward voltage drop

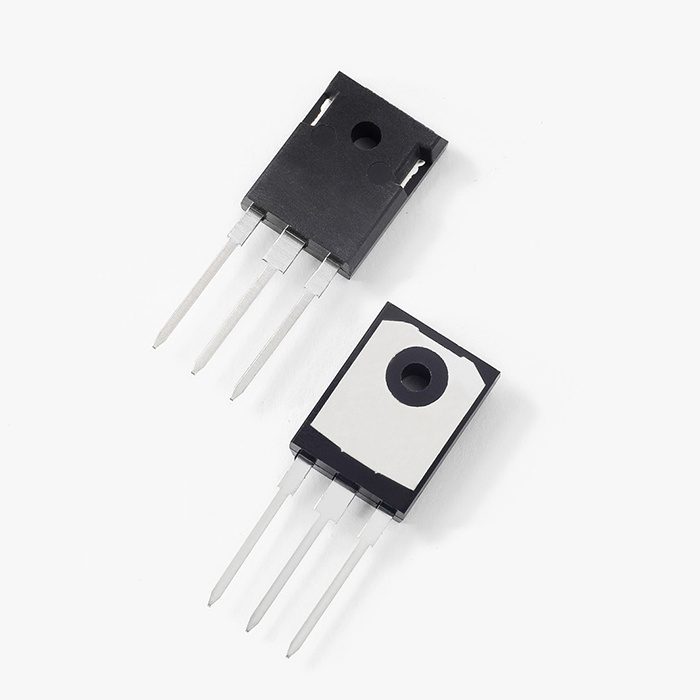

- Common Cathode configuration in TO-247AD package
DUR6030WT Applications
- Output rectifiers in switch mode power supplies (SMPS) and DC to DC converters
- Free-wheeling diode or boost diode in converters and motor control circuits
- Anti-parallel diode for high frequency switching devices such as IGBT
- Uninterruptible Power Supplies (UPS)
- Inductive heating and melting
- Ultrasonic cleaners and welders
