DURD560A
600V 5A Ultrafast Rectifier DUR series | Series: Ultrafast Diode
Littelfuse DURD560A series Ultrafast Recovery Rectifier is designed to meet the general requirements of commercial applications by providing low Trr, high-temperature, low-leakage and low forward voltage drop products. It is suitable for output rectifier, free-wheeling or boost diode in high-frequency power switching application such as switch mode power supply and DC-DC converters.
| Property | Value |
|---|---|
Peak Forward Surge Current IFSM (A) | 80 |
Vf (V) | 1.7 |
Reverse Recovery Time | 35 |
Forward Continuous Current IF (A) | 5 |
Configuration | Single |
IF(AV) | 5 |
Peak Inverse Voltage VRWM (V) | 600 |
- Ultra-fast switching
- Low reverse leakage current
- High surge current capability
- Low forward voltage drop

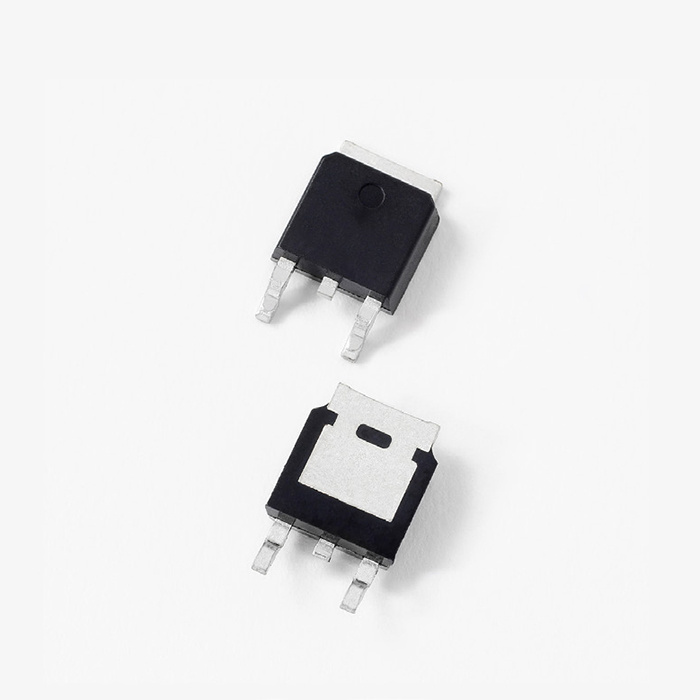

- Single die in surface mount TO-252 (DPAK) package
DURD560A Applications
- Output rectifiers in switch mode power supplies (SMPS) and DC to DC converters
- Free-wheeling diode or boost diode in converters and motor control circuits
- Anti-parallel diode for high frequency switching devices such as IGBT
- Uninterruptible Power Supplies (UPS)
- Inductive heating and melting
- Ultrasonic cleaners and welders
DURD560A Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| DURD560A | 600V 5A Ultrafast Rectifier DUR series |  11/19/2018 | No |  CoC_RoHS9_DURD560A | REACH209_Declaration_Contain-_DURD560A | Contains | IPC_DURD560A | View More |
