DNA120E2200KO

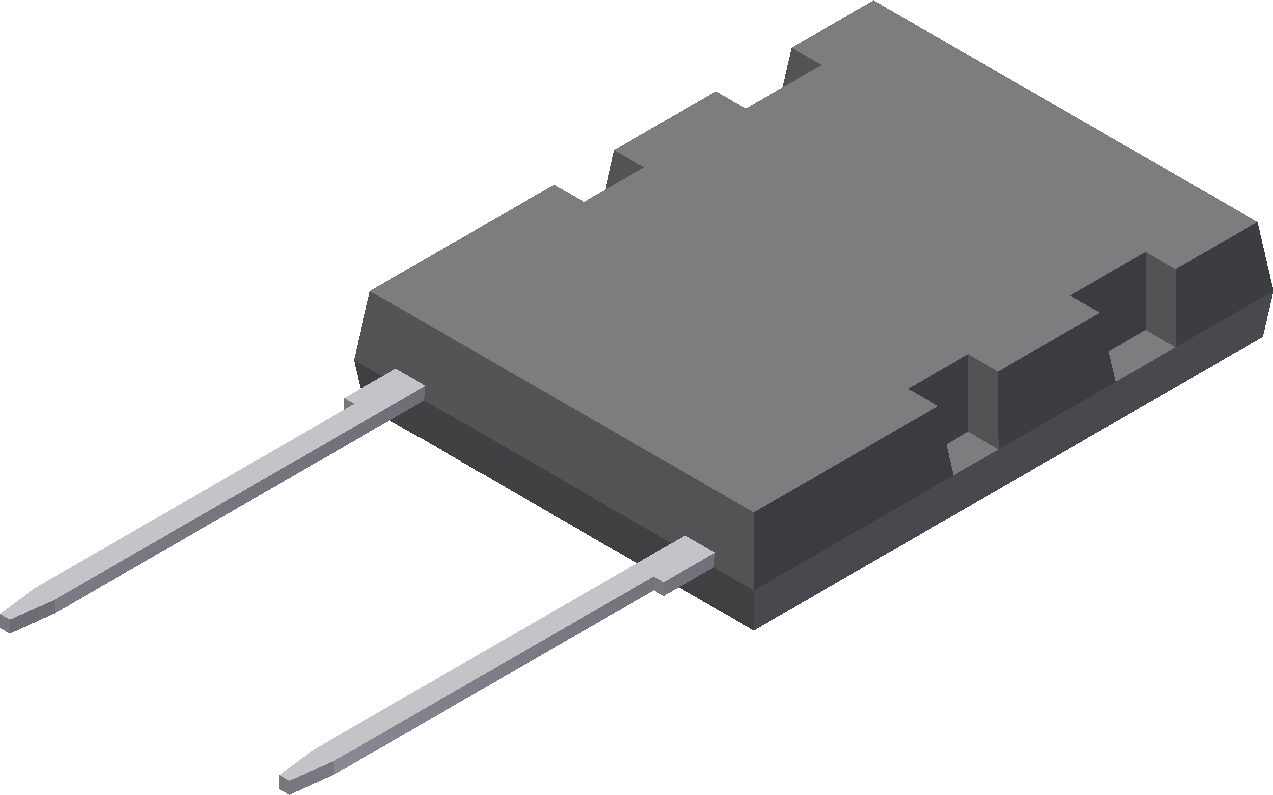

Power Diode Disc-Rectifier ISOPLUS264 | Series: High Voltage Diode ≥2000VThe discrete High Voltage Diode series comes with a broad variety of packages and breakdown voltages of 2200V.
| Property | Value |
|---|---|
Status | Active |
VRRM [Rect] (V) | 2200 |
TC (°C) | 125 |
IFSM (A) | 2000 |
TVJM (°C) | 175 |
VFO (V) | 0.75 |
rF (mΩ) | 3.8 |
RthJC (K/W) | 0.25 |
RthCH (K/W) | 0.2 |
IFAV [Diode] (A) | 120 |
Package Type | ISOPLUS264 (2HV) |
