DK010S3ARP
Rectifier 1000V DO-214AB TR13 RoHS | Series: Standard Diode up to 1800V

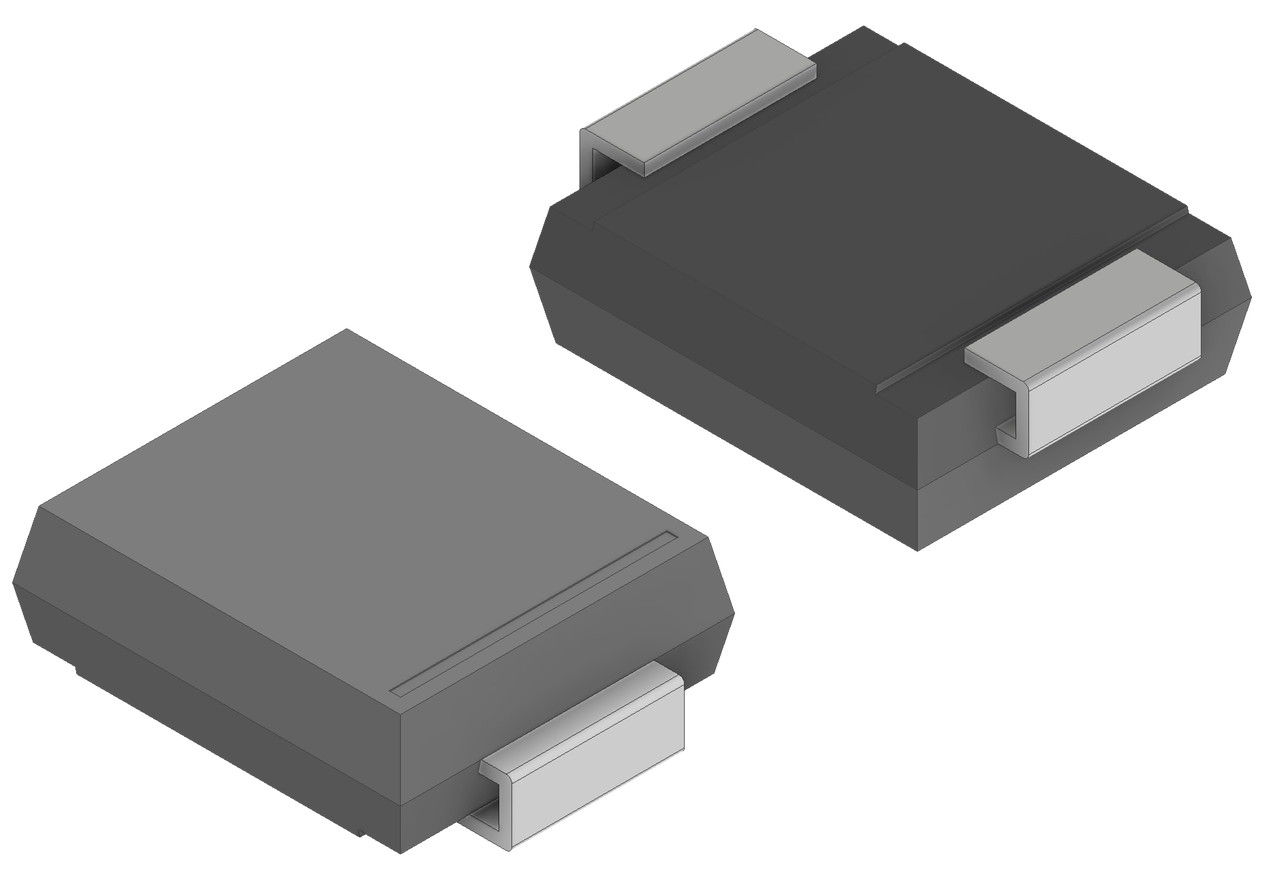

This silicon rectifier features glass-passivated junctions for enhanced stability and is assembled in a small-size DO-214AB package which supports automated assembly. This device features PPAP-3.
| Property | Value |
|---|---|
Status | Active |
IRM @25°C | 5 |
I2t | 425 |
Ifav | 10 |
IRM @125°C | 300 |
VRRM (V) | 1000 |
- Reverse leakage current, IR ≤ 5 μA @ 25 ºC
- Forward voltage, VF ≤ 1.2 V @ 25 ºC
- Increased maximum virtual junction temperature from 125 ºC to 150 ºC
- AEC-Q101 qualified and PPAP capable
- Low standby losses
- High efficiency
- Higher current in the same package
- Ensures compliance with automotive industry standards
DK010S3ARP Applications
- On-board charger
- Reverse polarity protection and freewheeling in BMS
- Switch mode power supplies (SMPS)
DK010S3ARP Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| DK010S3ARP | Rectifier 1000V DO-214AB TR13 RoHS | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
