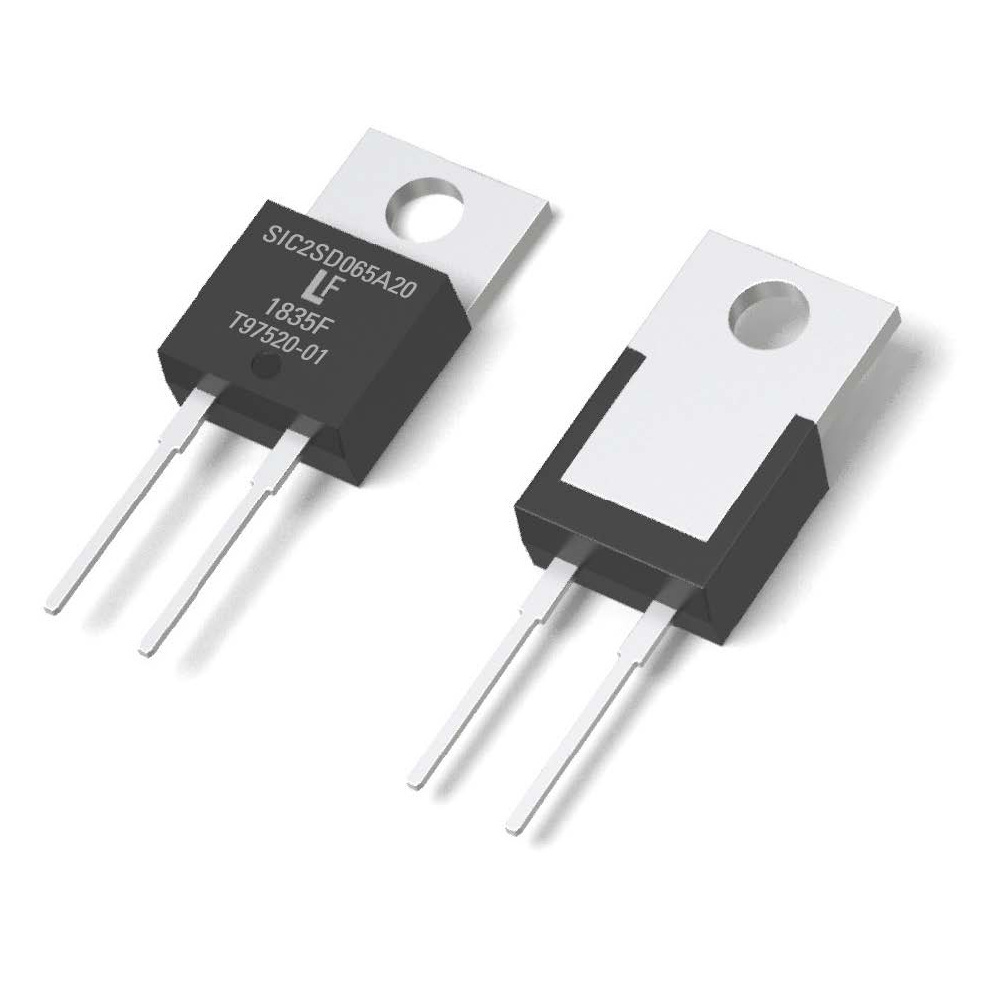

LSIC2SD065A20A
650V/20A SiC SBD TO220-2L AEC-Q101 | Series: SiC Schottky Diodes
This series of silicon carbide (SiC) Schottky diodes has negligible reverse recovery current, high surge capability, and a maximum operating junction temperature of 175 °C. These diodes series are ideal for applications where improvements in efficiency, reliability, and thermal management are desired.
| Property | Value |
|---|---|
VRRM (V) | 650 |
IF(AV) | 20 |
Peak Forward Surge Current IFSM (A) | 95 |
QC (nC) | 63 |
TJ Max (°C) | 175 |
Package Type | TO-220-2L |
Reverse Current IR (µA) | 1 |
Vf (V) | 1.5 |
Configuration | Single |
Qualification_Diode | Industrial |
- Positive temperature coefficient for safe operation and ease of paralleling
- 175 °C maximum operating junction temperature
- Excellent surge capability
- Extremely fast, temperature-independent switching behavior
- Dramatically reduced switching losses compared to Si bipolar diodes
LSIC2SD065A20A Applications
- Boost diodes in PFC or DC/DC stages
- Switch-mode power supplies
- Uninterruptible power supplies
- Solar inverters
- Industrial motor drives
- EV charging stations
