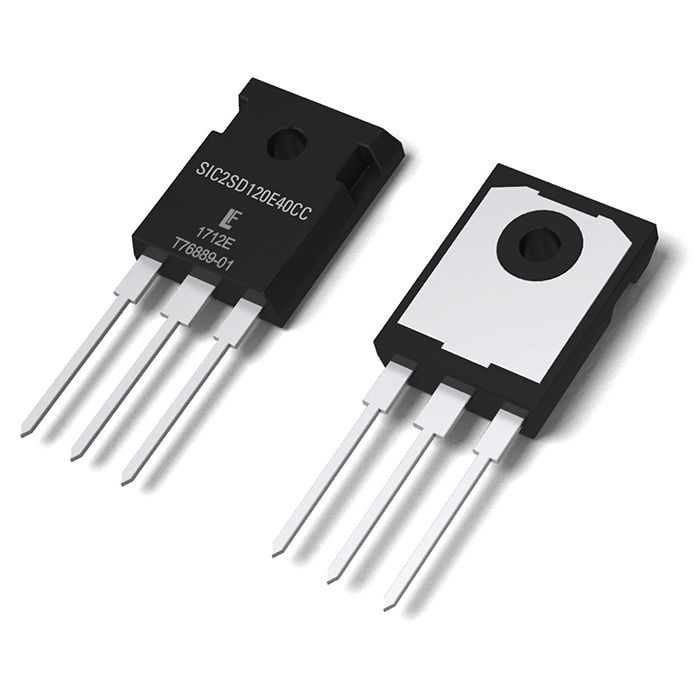

LSIC2SD120E40CCA
SiC Schottky Diode 1200V 2x20A TO247-3L | Series: SiC Schottky Diodes
This series of silicon carbide (SiC) Schottky diodes has negligible reverse recovery current, high surge capability, and a maximum operating junction temperature of 175 °C. These diodes series are ideal for applications where improvements in efficiency, reliability, and thermal management are desired.
| Property | Value |
|---|---|
VRRM (V) | 1200 |
IF(AV) | 20 |
Peak Forward Surge Current IFSM (A) | 145 |
QC (nC) | 125 |
TJ Max (°C) | 175 |
Reverse Current IR (µA) | 1 |
Vf (V) | 1.5 |
Configuration | Common Cathode |
Qualification_Diode | Industrial |
- Positive temperature coefficient for safe operation and ease of paralleling
- 175°C maximum operating junction temperature
- Excellent surge capability
- Extremely fast, temperature-independent switching behavior
- Dramatically reduced switching losses compared to Si bipolar diodes
LSIC2SD120E40CCA Applications
- Boost diodes for power factor correction or dc–dc conversion
- Switch-mode power supplies
- Uninterruptible power supplies
- Solar inverters
- Industrial motor drives
- EV charging stations
LSIC2SD120E40CCA Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| LSIC2SD120E40CCA | SiC Schottky Diode 1200V 2x20A TO247-3L | View More |
