MBR10150CT

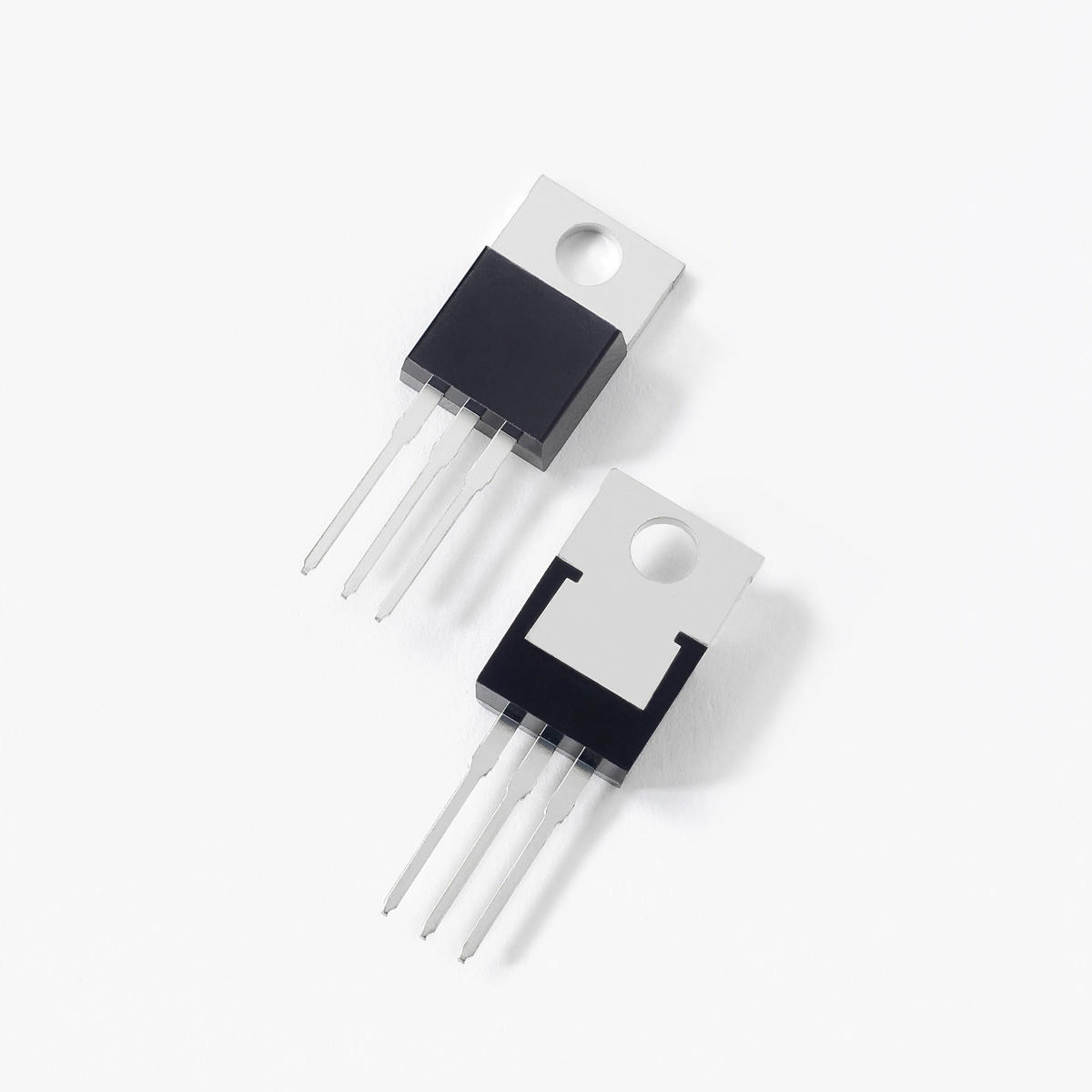

150V 10A Schottky MBR series TO-220AB | Series: Standard Schottky
Littelfuse MBR10150CT series Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications by providing high temperature, low leakage and low forward voltage drop products.
It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
| Property | Value |
|---|---|
Status | Active |
Package Type | TO-220AB |
Peak Forward Surge Current IFSM (A) | 138 |
Peak Inverse Voltage VRWM (V) | 150 |
Vf (V) | 0.93 |
Configuration | Common Cathode |
Forward Continuous Current IF (A) | 10 |
IF(AV) | 2x5 |
- High junction temperature capability
- Guard ring for enhanced ruggedness and long term reliability
- Low forward voltage drop
- High frequency operation
- Common cathode configuration in TO-220AB package
MBR10150CT Applications
- Switching mode power supply
- Freewheeling diodes
- Dc–dc converters
- Polarity protection diodes
