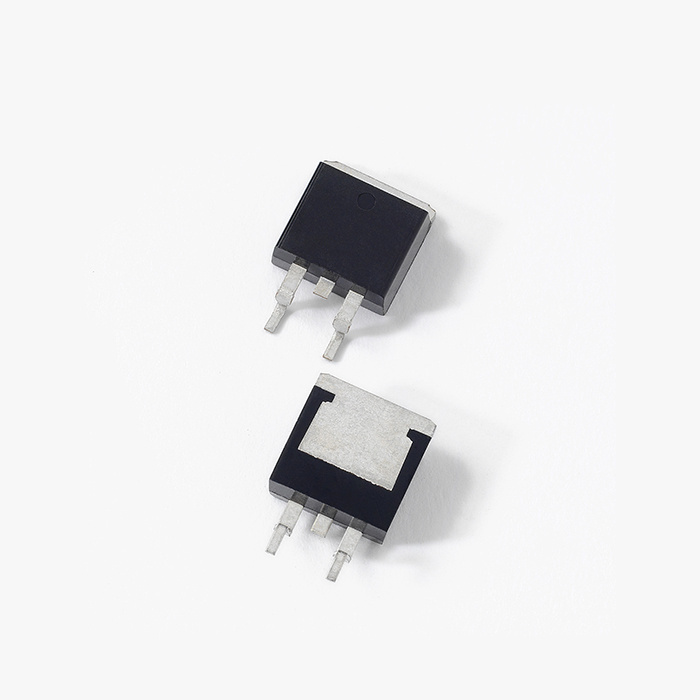

MBRB1060CT
60V 10A Schottky MBR series D2PAK | Series: Standard Schottky
Littelfuse MBRB1060CT series Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications by providing high temperature, low leakage and low forward voltage drop products.
It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.| Property | Value |
|---|---|
Status | Active |
Package Type | TO-263 (D2-PAK) |
Peak Forward Surge Current IFSM (A) | 125 |
Peak Inverse Voltage VRWM (V) | 60 |
Vf (V) | 0.7 |
Configuration | Common Cathode |
Forward Continuous Current IF (A) | 10 |
IF(AV) | 2x5 |
- High junction temperature capability
- Guard ring for enhanced ruggedness and long term reliability
- Low forward voltage drop
- High frequency operation
- Common cathode configuration in surface mount TO-263 package
MBRB1060CT Applications
- Switching mode power supply
- Freewheeling diodes
- Dc–dc converters
- Polarity protection diodes
MBRB1060CT Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| MBRB1060CT | 60V 10A Schottky MBR series D2PAK |  11/9/2015 | No |  CoC_RoHS9_MBRB1060CT | REACH209_Declaration_Contain-_MBRB1060CT | Contains | Yes11/9/2015 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
