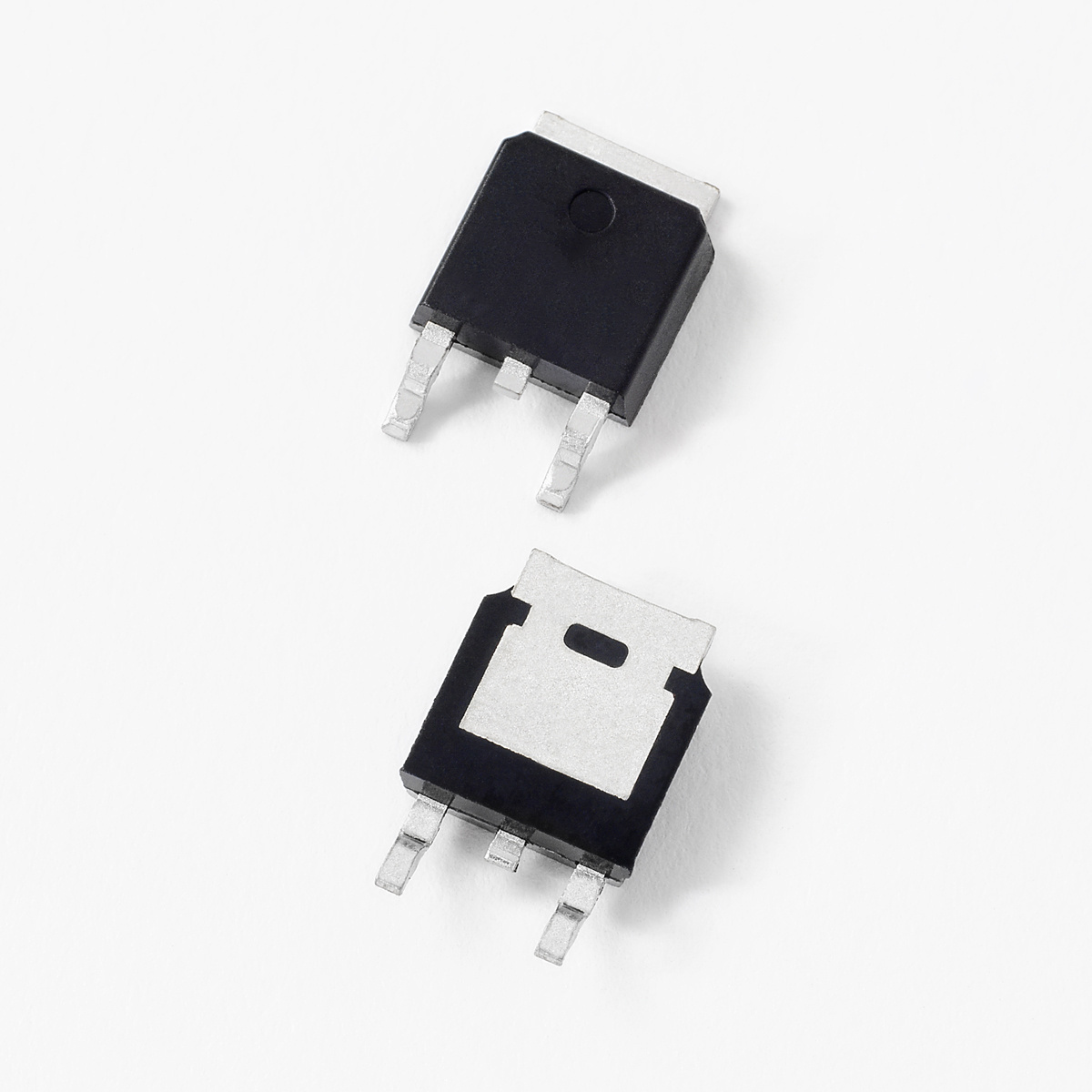

MBRD10150CT
150V 10A Schottky MBR series DPAK | Series: Standard Schottky
Littelfuse MBRD10150CT series Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications by providing high temperature, low leakage and low forward voltage drop products.
It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
| Property | Value |
|---|---|
Status | Active |
Package Type | TO-252 (D-PAK) |
Peak Forward Surge Current IFSM (A) | 100 |
Peak Inverse Voltage VRWM (V) | 150 |
Vf (V) | 0.95 |
Configuration | Common Cathode |
Forward Continuous Current IF (A) | 10 |
IF(AV) | 2x5 |
- High junction temperature capability
- Guard ring for enhanced ruggedness and long term reliability
- Low forward voltage drop
- High frequency operation
- Common cathode configuration in surface mount TO-252 package
MBRD10150CT Applications
- Switching mode power supply
- Freewheeling diodes
- Dc–dc converters
- Polarity protection diodes
MBRD10150CT Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| MBRD10150CT | 150V 10A Schottky MBR series DPAK |  11/9/2015 | No | Yes11/9/2015 | View More |
