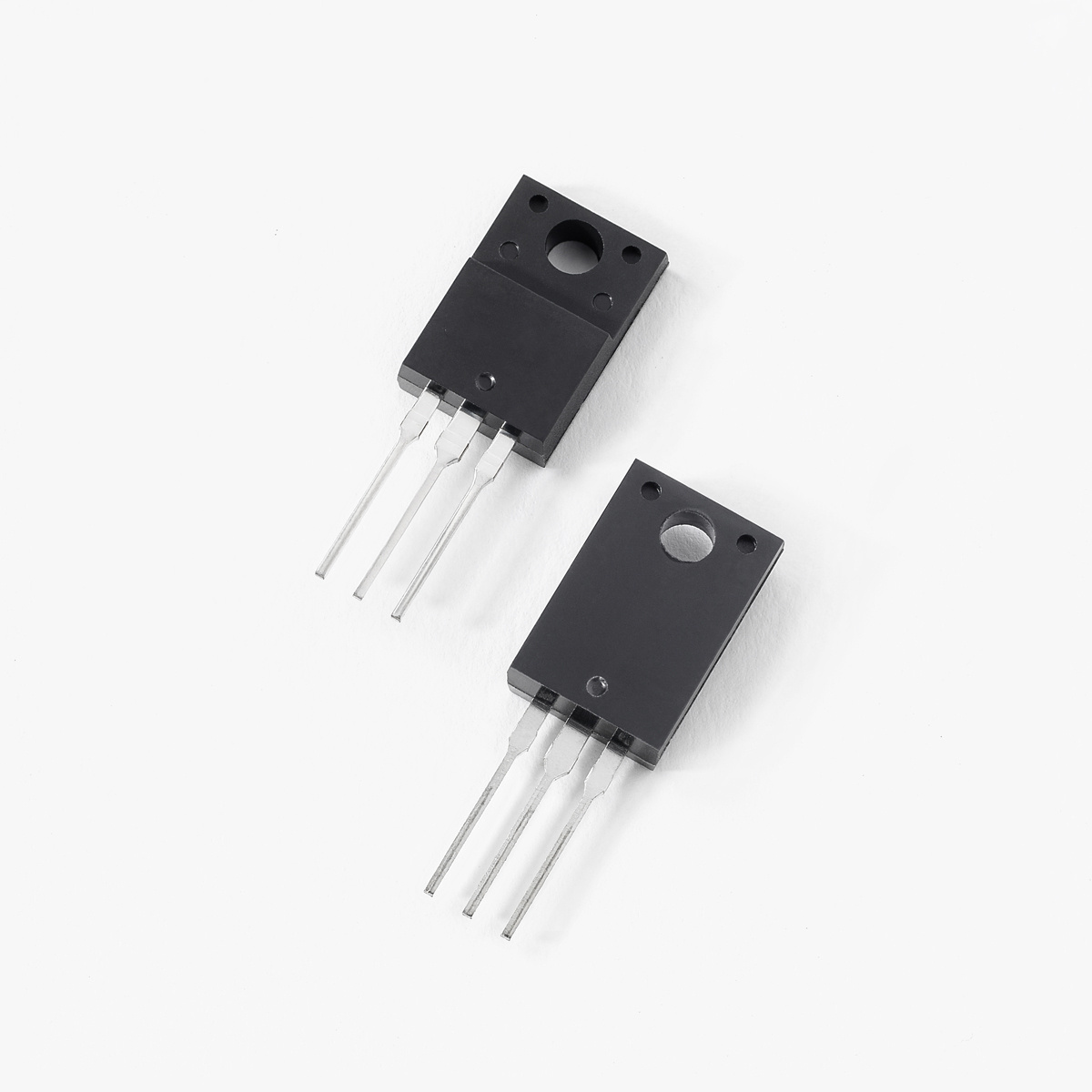

MBRF10100CTR
100V 10A Schottky MBR series ITO-220AB | Series: Standard Schottky
Littelfuse MBRF10100CTR series Schottky Barrier Rectifier is designed to meet the general requirements of commercial applications by providing high temperature, low leakage and low forward voltage drop products.
It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
| Property | Value |
|---|---|
Status | Active |
Package Type | ITO-220AB |
Peak Forward Surge Current IFSM (A) | 120 |
Peak Inverse Voltage VRWM (V) | 100 |
Vf (V) | 0.85 |
Configuration | Common Anode |
Forward Continuous Current IF (A) | 10 |
IF(AV) | 2x5 |
- High junction temperature capability
- Guard ring for enhanced ruggedness and long term reliability
- Low forward voltage drop
- High frequency operation
- Common anode configuration in electrically isolated ITO-220AB package
MBRF10100CTR Applications
- Switching mode power supply
- Freewheeling diodes
- Dc–dc converters
- Polarity protection diodes
MBRF10100CTR Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| MBRF10100CTR | 100V 10A Schottky MBR series ITO-220AB |  11/9/2015 | No |  CoC_RoHS9_MBRF10100CTR | REACH201_Declaration_with_Pb_MBRF10100CTR | Contains | Yes11/9/2015 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
