DST1040S

Product Status| Activei

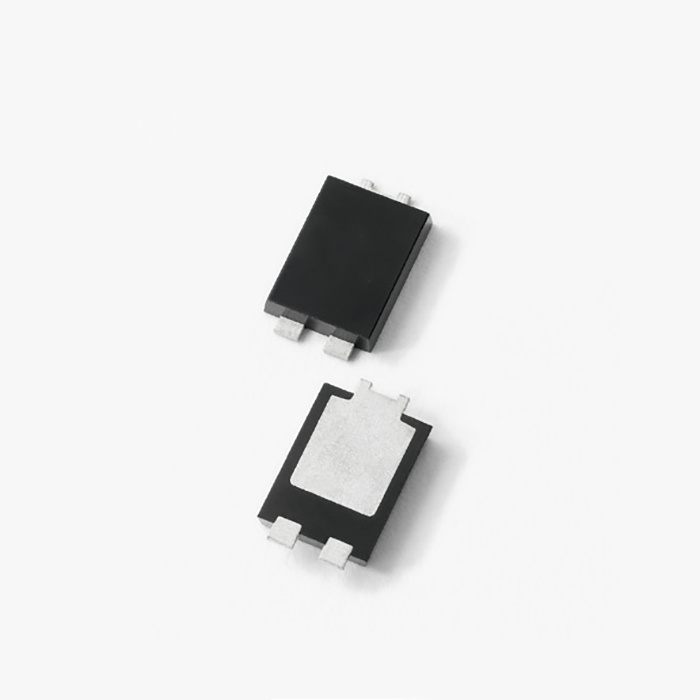

Power Semiconductor Schottky Diode DST1040S Image

DST1040S

40V 10A Ultralow Schottky DSUL _TO-277B | Series: Ultralow VF Schottky
info

Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of commercial and industry applications by providing high temperature, low leakage and lower VF products.

It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.

PropertyValue
Status
Active
Package Type
TO-277B
Peak Forward Surge Current IFSM (A)
150
Peak Inverse Voltage VRWM (V)
40
Vf (V)
0.47
Configuration
Single
Forward Continuous Current IF (A)
10
IF(AV)
10
  • Ultra low forward voltage drop
  • High frequency operation
  • MSL: Level 1 – unlimited
  • High junction temperature capability
  • Trench MOS Schottky technology
  • Single die in TO-277B Package
  • Lead-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/ JEDEC J-STD-609A.01)

DST1040S Applications

Highlights Section

  • Switching mode power supply
  • Dc–dc converters
  • Freewheeling diodes
  • Polarity Protection Diodes
  • Video: (For Chinese subtitle version CLICK HERE )

DST1040S Resources

TO-277B 3D Model
Showing 1 to 1 of 1 Total Results
Download
|
Share
Share
Part NumberPart DescriptionRoHSPb-FreeRoHS (2015/863/EU) CertificateREACH (SVHCs) DeclarationREACH (SVHCs)Halogen FreeIPC-Material Declaration
DST1040S40V 10A Ultralow Schottky DSUL _TO-277BRoHS1/8/2017NoPdf IconCoC_RoHS9_DST1040SPdf IconREACH_SVHC Declaration (Contain)_DST1040SContainsYes12/15/2020Pdf IconIPC_TO-277B_DST1040S-_DST1045S-_DST12100S-_DST5100S-_DST12100S-DST2080S

If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
