DST20100C

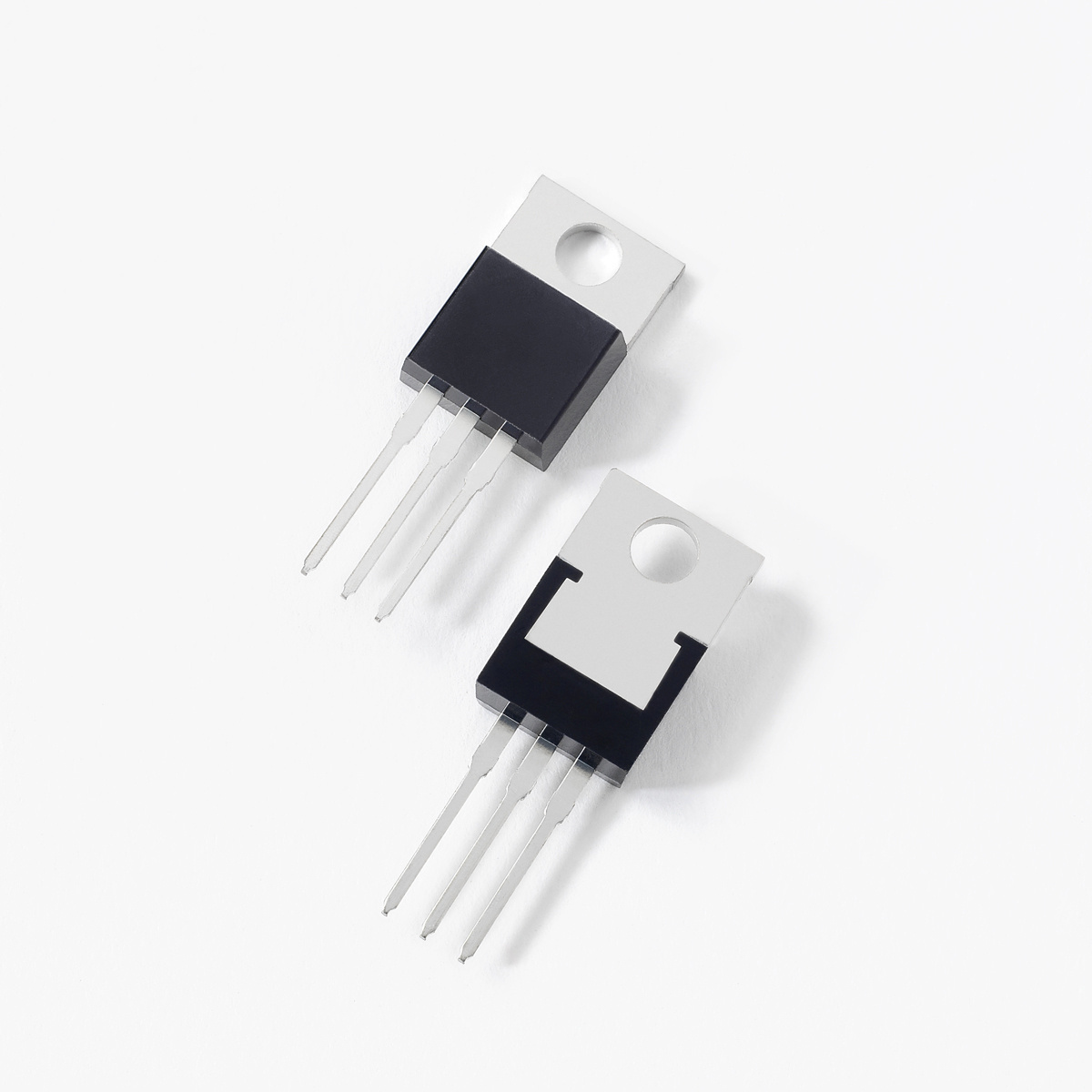

100V 20A Ultralow Schottky DST _TO-220AB | Series: Ultralow VF Schottky
Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of commercial and industry applications by providing high temperature, low leakage and lower VF products.
It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
| Property | Value |
|---|---|
Status | Active |
Package Type | TO-220AB |
Peak Forward Surge Current IFSM (A) | 150 |
Peak Inverse Voltage VRWM (V) | 100 |
Vf (V) | 0.75 |
Configuration | Common Cathode |
Forward Continuous Current IF (A) | 20 |
IF(AV) | 2x10 |
- Ultra low forward voltage drop
- High frequency operation
- High junction temperature capability
- Guard ring for enhanced ruggedness and long term reliability
- Common cathode configuration in TO-220AB package
DST20100C Applications
- Switching mode power supply
- Freewheeling diodes
- Dc–dc converters
- Polarity protection diodes
