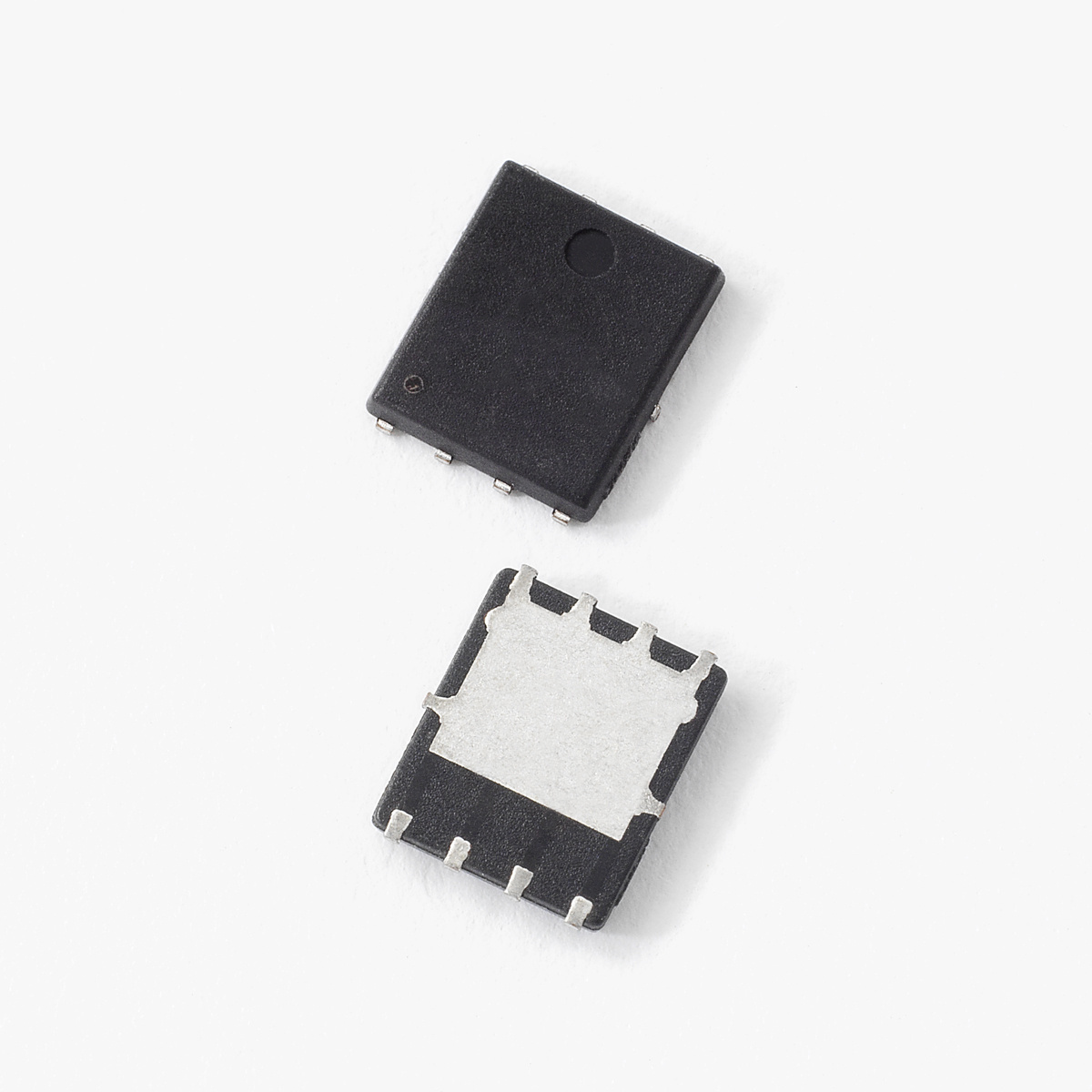

DST2060DJF
60V 20A Ultralow Schottky DST _PDFNWN | Series: Ultralow VF Schottky
Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of commercial and industry applications by providing high temperature, low leakage and lower VF products.
It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
| Property | Value |
|---|---|
Status | Active |
Package Type | PDFNWB5?-8L |
Peak Forward Surge Current IFSM (A) | 150 |
Peak Inverse Voltage VRWM (V) | 60 |
Vf (V) | 0.75 |
Configuration | Single |
Forward Continuous Current IF (A) | 20 |
IF(AV) | 20 |
- Ultra low forward voltage drop
- High frequency operation
- High junction temperature capability
- Guard ring for enhanced ruggedness and long term reliability
- Single die in PDFN5x6-8L package
DST2060DJF Applications
- Switching mode power supply
- Freewheeling diodes
- Dc–dc converters
- Polarity protection diodes
DST2060DJF Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| DST2060DJF | 60V 20A Ultralow Schottky DST _PDFNWN |  8/16/2017 |  8/16/2017 |  CoC_RoHS9_DST2060DJF | REACH_SVHC Declaration (Contain)_DST2060DJF.pdf | Contains | Yes8/16/2017 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
