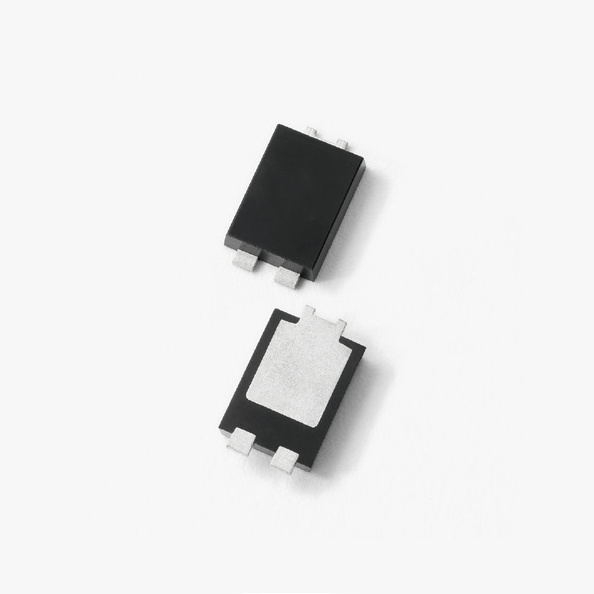

DST5100S
100V 5A Ultralow Schottky DSUL _TO-277B | Series: Ultralow VF Schottky
Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of commercial and industry applications by providing high temperature, low leakage and lower VF products.
It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
| Property | Value |
|---|---|
Status | Active |
Peak Forward Surge Current IFSM (A) | 120 |
Peak Inverse Voltage VRWM (V) | 100 |
Vf (V) | 0.75 |
Configuration | Single |
Forward Continuous Current IF (A) | 5 |
IF(AV) | 5 |
- Ultra low forward voltage drop
- High frequency operation
- MSL: Level 1 – unlimited
- High junction temperature capability
- Trench MOS Schottky technology
- Single die in TO-277B Package
- Lead-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/ JEDEC J-STD-609A.01)
DST5100S Applications
- Switching mode power supply
- Dc–dc converters
- Freewheeling diodes
- Polarity Protection Diodes
- Video: (For Chinese subtitle version CLICK HERE )
DST5100S Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| DST5100S | 100V 5A Ultralow Schottky DSUL _TO-277B |  7/9/2018 |  7/9/2018 |  CoC_RoHS9_DST5100S | Yes7/9/2018 | IPC_TO-277B_DST1040S-_DST1045S-_DST12100S-_DST5100S | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
