DSTF30100C

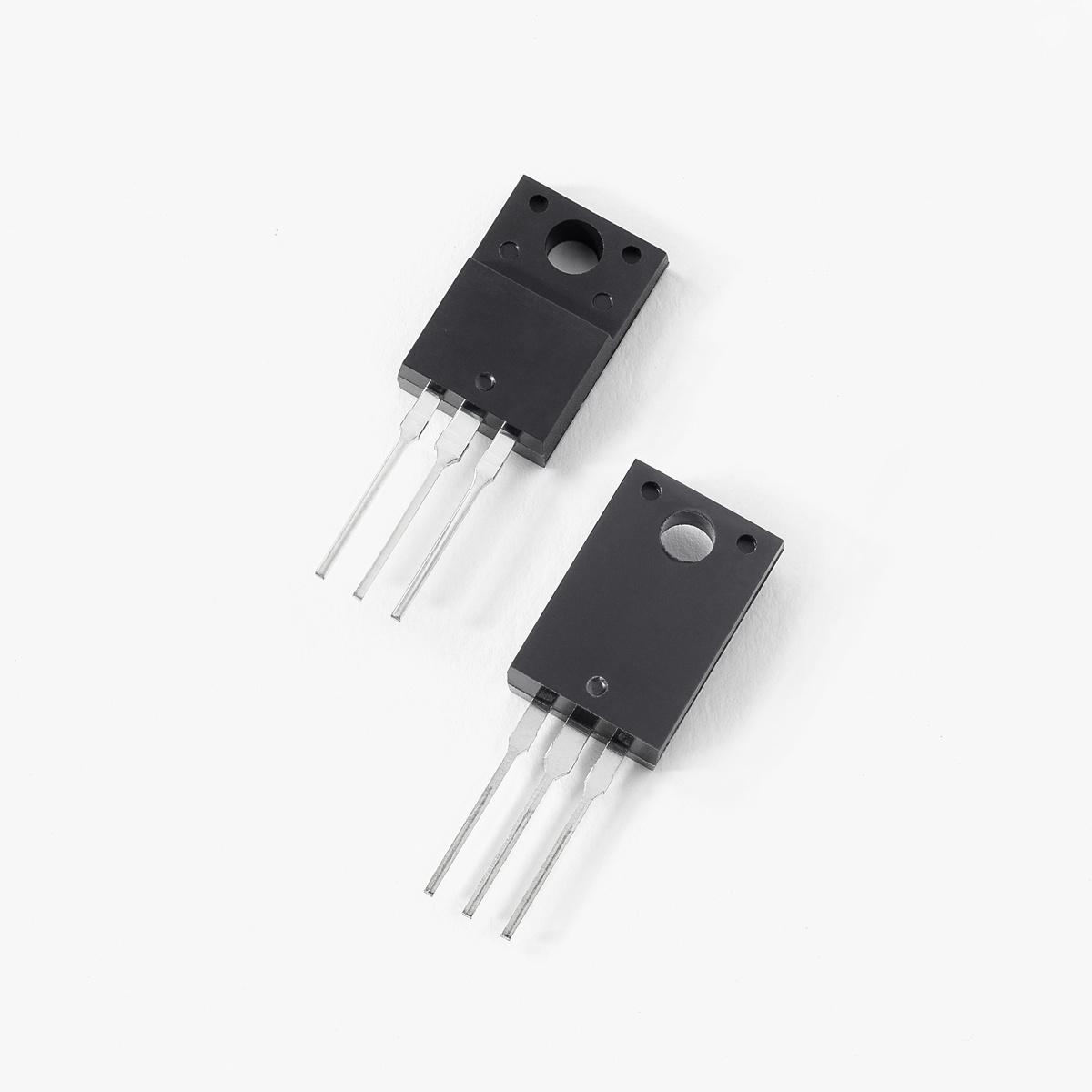

100V 30A Ultralow Schottky DST _ITO-220A | Series: Ultralow VF Schottky
Littelfuse DST series Ultra Low VF Schottky Barrier Rectifier is designed to meet the general requirements of commercial and industry applications by providing high temperature, low leakage and lower VF products.
It is suitable for high frequency switching mode power supply, free-wheeling diodes and polarity protection diodes.
| Property | Value |
|---|---|
Status | Active |
Package Type | ITO-220AB |
Peak Forward Surge Current IFSM (A) | 200 |
Peak Inverse Voltage VRWM (V) | 100 |
Vf (V) | 0.75 |
Configuration | Common Cathode |
Forward Continuous Current IF (A) | 30 |
IF(AV) | 2x15 |
- Ultra low forward voltage drop
- High frequency operation
- High junction temperature capability
- Guard ring for enhanced ruggedness and long term reliability
- Common cathode configuration in ITO-220AB package
DSTF30100C Applications
- Switching mode power supply
- Freewheeling diodes
- Dc–dc converters
- Polarity protection diodes
DSTF30100C Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| DSTF30100C | 100V 30A Ultralow Schottky DST _ITO-220A |  6/25/2018 | No |  CoC_RoHS9_DSTF30100C | REACH197_Declaration_with_Pb_DSTF30100C | Contains | No | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
