VBO25-16AO2

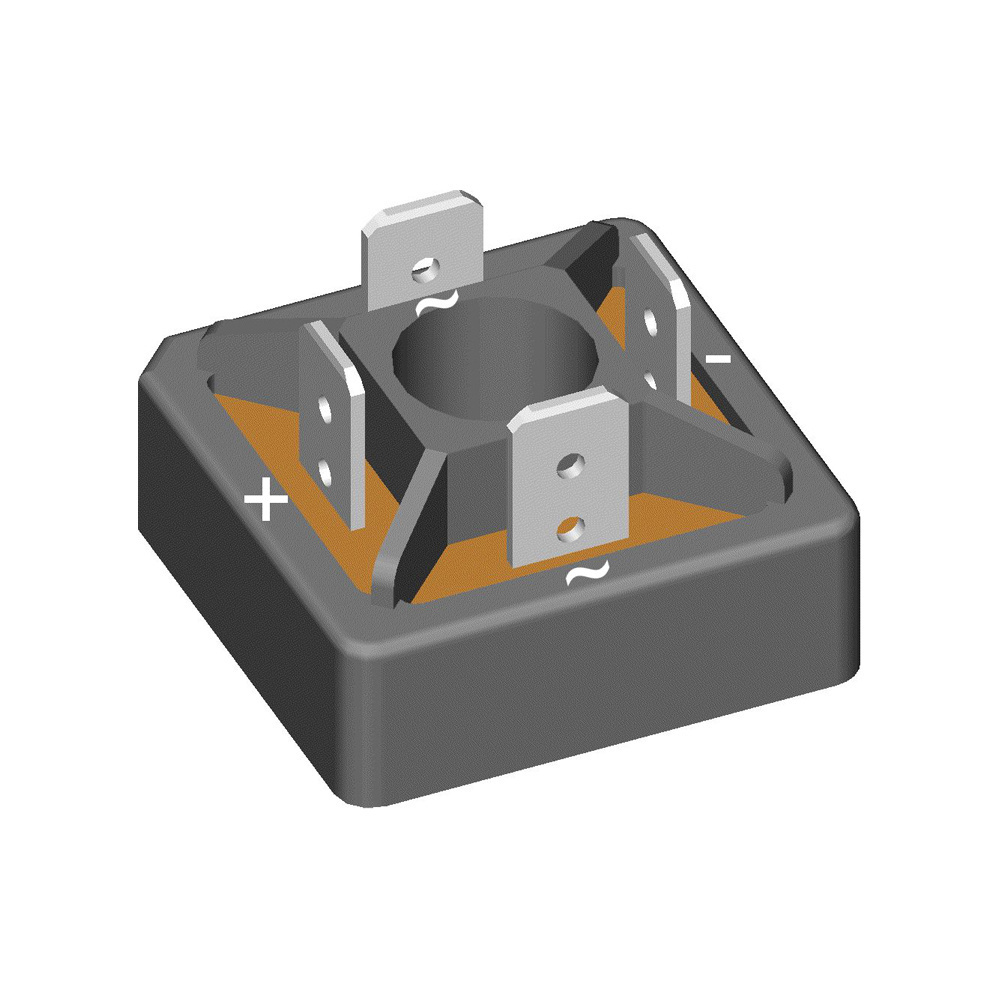

Bipolar Module - Diode FO | Series: Single Phase BridgesDiodes in various packages made for main rectification in 1 phase bridge configurations.
| Property | Value |
|---|---|
VRRM [Rect] (V) | 1600 |
IDAV [Rect] (A) | 25 |
TC (°C) | 125 |
IFSM (A) | 370 |
TVJM (°C) | 150 |
rF (mΩ) | 9.6 |
RthJC (K/W) | 2 |
RthCH (K/W) | 0.4 |
VFO (V) | 0.88 |
Package Type | FO-A |
VBO25-16AO2 Resources
